Fraser Optics

Fraser Optics 14x40 Stedi-Eye Observer Stabilized LE Edition Water Proof Roof Prism Binocular with 4.3deg. Angle of View, with Case, Black

SKU: FOSEOC MFR: 01065-1100-14X-CL
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$6,484.76 List Price

Our Price

$5,774.75
Free Shipping
Qty:
Add to Wishlist

About the Fraser Optics 14x40 Roof Prism

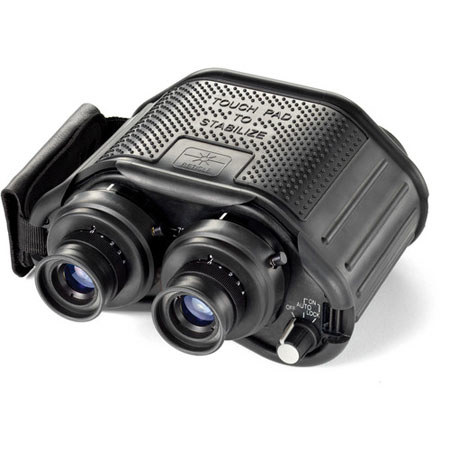

The Fraser Optics 14x40 Stedi-Eye Observer LE Edition Binocular with Hard Case is an advanced electro-optical device designed for long-range observations from unstable viewing platforms on the ground, in the air, or at sea. Stedi-Eye series optics are designed to withstand long-term use in demanding weather conditions.

The Observer uses gyro stabilization technology to correct up to 98% of image motion caused by hand tremor and platform motion. This technology is especially useful for law enforcement personnel and first responders observing from a marine vessel, moving vehicle, or helicopter. When in high-speed pursuit or conducting aerial and marine surveillance, the Observer's stabilized viewing platform can be the difference between mission success and failure. As the optical housing pitches and/or rolls, the gyro mechanism compensates for the motion by mechanically orienting the prisms in the opposite direction.

This process of stabilization occurs in real time and corrects motion on the pitch and roll axes within 8 degrees. All configurations of the Observer series are built to the same construction standards as Fraser-Volpe's military spec optics. The weatherproof/buoyant housing, fully multicoated optics and supplemental external power supply make the Observer a full-featured binocular for first responders and tactical professionals.

Fraser Optics 14x40 Roof Prism Includes

  • Fraser Optics 14x40 Stedi-Eye Observer LE Edition Binocular
  • Hard Shell Case
  • Handstrap
  • Neckstrap
  • Lens Covers
  • External Power Cord
  • Full Face Eyecup
  • Haze Filter
  • Polarizing Filter with Adapter
  • Advanced Lens Cleaning Kit
  • 2 x AA Batteries
  • Operator's Manual
  • Fraser Optics 3 Year Warranty

Fraser Optics 14x40 Roof Prism Features

  • Advanced gyro-stabilization system
  • Touch pad and switch lock to stabilize
  • Up to 98% reduction of image motion
  • Fully multi-coated MgFI optics for enhanced light transmission
  • Wide field of view
  • Scan rate (8deg./sec)
  • 100% sealed, buoyant, submersible and waterproof
  • Shockproof and ruggedized for extreme conditions
  • No-slip neoprene cover for added comfort and grip
  • Built-in regulator for external power; continuous operation for 12 hours on 2 AA batteries

Fraser Optics 14x40 Roof Prism Specifications

Prism Type Roof
Magnification 14.0x
Objective Lens Diameter 40mm
Angle of View 4.3deg. (actual)
Field-of-View 222.89' at 1000 yd / 74 m at 1000 m
Exit Pupil Diameter 3 mm
Interpupillary Adjustment 60-75mm / 2.36-2.95"
Dioptric Correction ±5
Stabilization Freedom ±8deg.
Resolution 4.3 arc seconds (USAF-1951)
Scan Rate 8deg./ second
Focus Type Individual
Internal Power 2 AA cells
External Power 6-30 VDC
Dimensions 8.25x7.50x3.50" (20.95x19.05x8.89cm)
Weight 71.96oz (2040.03g)
