Flashpoint 7" LED Field Monitor, 1280-800 Resolution, 16:9 Aspect Ratio, HDMI Input/Output

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$400.00 $16 per week
Free Expedited Shipping
Add to Wishlist In Stock

About this item

• This new and improved Flashpoint compact, lightweight metal clad 7-inch LED field monitor is the perfect companion for your video-capable DSLR or HD camcorder-with advanced features and performance besting others in this category at significantly lower cost. Offering five times the image size of a typical 3-inch on-camera LCD, plus impressive 1280x800 pixel native resolution, the Flashpoint enables extra-precise focusing and framing.

• Enjoy six special features: Full HDMI input and output, Peaking, which highlights in-focus edge detail, Exposure over/under revelation, Histogram display, 1:1 Pixel Mapping-showing a magnified view at the camera's actual pixel resolution, and Tally interface availability, when active as camcorder viewfinder. The monitor offers a native 16:9 widescreen aspect ratio that's ideal for shooting in HD or Full HD, with instant switching between black-bordered and full-screen display, and can be set to bordered 4:3 when needed.

• With 400 cd/m2 brightness and an exceptional 800:1 contrast ratio, the LED-backlit display delivers rich, highly accurate color. And, its wide viewing-angle (178 degrees horizontal and 178 degrees vertical) means everyone on your shoot can see the live image clearly from wherever they're standing. The metal shell housing is great protection from the elements and adds a level of display stability.

This highly configurable monitor features eight LED-illuminated buttons, including four [F1-F4] withassignable functions, enabling one-touch operation and intuitive on-screen menu navigation.

• It also has a headphone jack, a small mono speaker, a three-way power switch, and three 1/4-inch accessory/tripod bushings. The Flashpoint monitor kit comes with: a foldable, clip-on sun-hood which doubles as a screen protector; a mini ball-head shoe-mount bracket for flexible camera-top positioning; a snap-on battery plate (battery optional); an AC power adapter; and an HDMI camera cable.

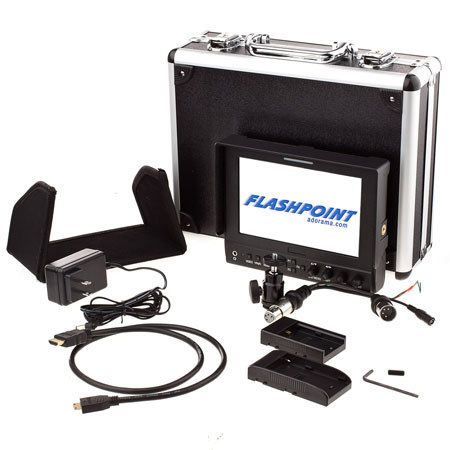

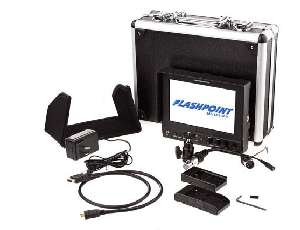

What's Included With This Item

  • Flashpoint PRO-1 7" LED Field Monitor
  • Folding Sun Shade Cover
  • Shoe Mount
  • Battery Plate
  • HDMI A/C Cable
  • 12V DC Adapter
  • Power and Tally Cable
  • Suitcase
  • Manual

Summary of Customer Reviews

Customers most agreed on the following attributes:
Reviewer Profile:
Power user (1)

Key Features

  • 7-inch widescreen LED with HD-friendly 16:9 aspect ratio
  • High-resolution display delivers 1280x800 pixels (native) input up to 1920x1080
  • Lightweight weather resistant metal shell, slim design is perfect for DSLRs
  • Wide 178 degree viewing angle helps your whole crew watch the action
  • 1:1 pixel mapping shows magnified detail at camera-original resolution
  • Edge peaking enhances critical focusing
  • Super 400cd/m2 high brightness with 800:1 contrast
  • Colding, clip-on sun-hood doubles as screen protector
  • HDMI Input and Output
  • High contrast ratio (800:1) plus vivid, accurate color reproduction
  • Eight LED-illuminated pushbuttons include four with user-programmable functions
  • Extensive configurability via easily navigable onscreen menus
  • User selectable Kelvin white balance presets and RGB channel adjustment
  • Five selectable image-crop markers (80 to 95 percent coverage)
  • Built-in speaker (mono) plus headphone jack
  • Removable battery (optional) plus 12V DC input from plug-in AC adapter
  • Three 1/4-inch accessory/tripod bushings (left, right and bottom)
  • Optional Accessories: Battery Plate DU21 - Battery Plate QM91D - Li-Ion Battery - VESA 75mm rail-mount slot

Technical Specs

Panel 7" LED backlit
Physical Resolution 1280 X 800
Aspect Ratio 16:9
Brightness 400cd/m2
Contrast 800:1
Viewing Angle Horizontal 178 degrees / Vertical 178 degrees (IPS)
YPbPr 3 (BNC)
Composite 1
Audio L&R 1
Tally 1
3G-SDI 0
Speaker 1 built-in
Ear Phone Port 1 built-in
Current 900mA
Input Voltage DC 7-24V (XLR Connector)
Battery Plate F-970 / LP-E6.
Power Consumption 11W
Operation Temperature -20 degrees C - 60 degrees C
Open Dimensions 191.5 X 152 X 31
Suitcase Dimensiond 309 X 247 X 97.5mm
Weight 760g / 938g (with cover) / 2160g (with suitcase)
Body Material Metal Shell
Maximum Resolution (scaled) 1920 X 1080
