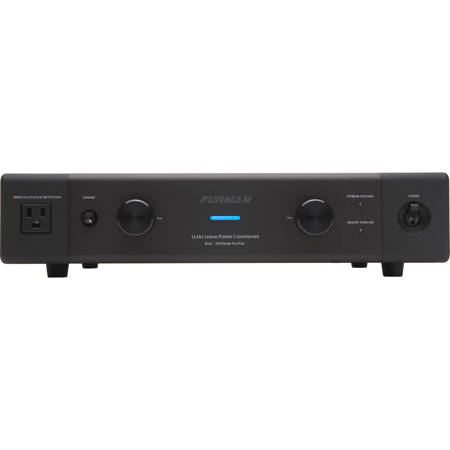

The Furman Sound Elite 20 PFi technology enables power amplifiers and powered subwoofers to operate at peak efficiency, reaching levels of performance previously unattainable. In fact, the Elite 20 PF i is so substantial in its ability to unmask critical signal content, its performance is surpassed. When you plug your components into the Elite-20 PFi, you will immediately notice far clearer, stunningly focused sound and visual images from your system. Video presentation will be crisp and colors true with greater gray and black scale definition, as well as noticeably improved depth and clarity.
It features eight ultra-linearly filtered outlets with additional bi-directional ultrasonic filtering for digital or video components and four power factor-corrected amplifier outlets (with four amps RMS reserve, resistive load and over 55 amps peak charge.
|AC Current Capacity||Input - 20 Amp capacity required
Output - 16-20 Amps RMS (maximum, all outlets combined - continuous)
|Linear Noise Attenuation||Transverse (Differential) Mode:
40 dB from 5Khz. - 100 kHz.
80 dB from - 100 kHz. - 1GHz
40dB from 10Hz. - 30 kHz
20 from 40 kHz. - 1MHz (Linear attenuation curve from 0.05 - 100 ohms line impedance)
|Outlets||1 (ultra-linear filtered outlet - front panel)
8 (ultra-linear filtered outlets with additional bi-directional ultrasonic filtering for each analog or video components bank)
4 (power factor corrected amplifier outlets - 4 amps RMS reserve - resistive load - over 55 amps peak charge)
|Transient Voltage Surge Suppression||120 VAC - Series Multi-Stage Protection - Non-Sacrificial with Zero Ground Contamination
Extreme Voltage Shutdown
Cable / Satellite (less than .1dB insertion loss)
|Power Consumption||12 Watts for display and control circuits independent of actual load.|
|Safety Agency Listing||NRTL-C (pending)|
|Dimensions (H x W x D)||4 x 17 x 14.75' / 1.21 x 5.18 x 4.49m (Standard 2 RU height without feet)|
|Weight||18 lbs / 8.16kg|
