Furman Sound HDS-16 Headphone Distribution Unit, Routes 8 Mono, 4 Stereo Signals to HRM-16 Stations
Your card will only be charged once item ships.
Ways to Save
The Furman Sound HDS-16 is part of an Audio Distribution System that offers a great-sounding and flexible way to provide custom mixes for up to sixteen people in recording and live sound environments. Please note that at least one HRM-16, which is sold separately, is required for the system to function. The system consists of two components, the rack-mount HDS-16 Audio Distribution System and one or more HRM-16 remote mixers. Linking the distribution unit and remote mixers is as easy as plugging in cables - multiple remotes can be connected directly or daisy-chained together. Up to eight HR-6 remote mixers can be linked to the distribution unit and two pairs of headphones may be plugged into each HR-6.

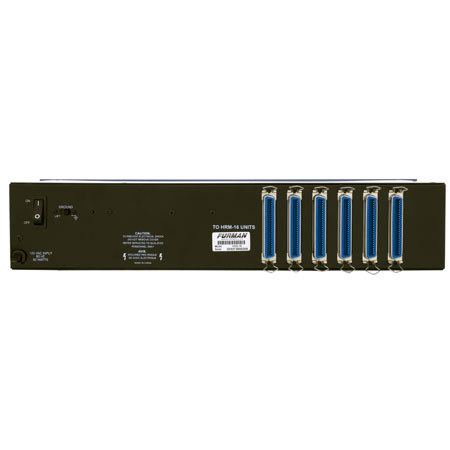

The HDS-16 rack-mount distribution unit connects to the mixer/console to provide an interface and power supplies to drive a group of HRM-16 remote mixers and cleanly routes eight mono and four stereo signals to remote mixing locations via Centronics 50 pin cables. The unit provides full patching functions on its front panel via 1/4" and TT input jacks and is intended to be installed at the mixing console location. Additionally, it includes two 1/4" jacks for the two-way talk-back functions and a SOLO REMOTE switch with an indicator that allows muting of all but one stereo feed at all HRM-16's.
This comes in handy for isolating tracks for critical listening without having each HRM-16 user turn down all but one channel. The HDS-16 is ideal as a low distortion headphone driver for the most critical listening situations. In addition to providing high current differential buffered signals, it also provides power and ground to the HRM-16 remote mixers.
|Power Output||750 mW at 32 ohms; 770 mW at 100 ohms; 260 mW at 600 ohms|
|Line Outputs||Balanced or single ended, impedance 50 ohms, 68 dB OCMR|
|Sensitivity||+4 dBu for rated output|
|Inputs||(17) 1/4" Balanced TRS
(16) TT Bantam
|Distortion||Less than .002% THD, 20 Hz to 20 kHz, full rated power|
|Dynamic Range||Greater than 105 dB|
|Frequency Response||+0, -1 dB from 13 Hz to 32 kHz|
|Crosstalk||Less than -95 dB at 10kHz|
|Power Requirements||120 VAC, 60 Hz, 82 W|
|Dimensions (H x W x D)||3.5 x 19 x 8" (8.9 x 48.3 x 20.3 cm)|
|Weight||9.4 lbs. (4.2 kg)|
