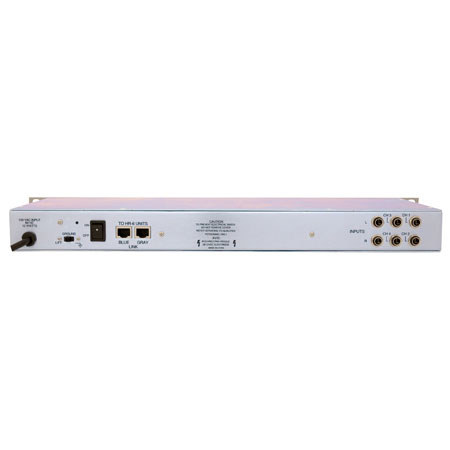

Furman Sound HDS-6 Headphone Audio Distribution System, Routes 4 Mono & 1 Stereo Signals to 8 HR6 Stations
Your card will only be charged once item ships.
The Furman Sound HDS-6 is part of an Audio Distribution System that offers a great-sounding, cost effective and flexible way to provide custom mixes for up to sixteen people in recording and live sound environments. Please note that at least one HR-6, which is sold separately, is required for the system to function. The system consists of two components, the rack-mount HDS-6 Audio Distribution System and one or more HR-6 remote mixers. Linking the distribution unit and remote mixers is as easy as plugging in cables - multiple remotes are simply daisy-chained together, using standard 10 Base-T ethernet cables.
Up to eight HR-6 remote mixers can be linked to the distribution unit and two pairs of headphones may be plugged into each HR-6. The HDS-6 rack-mount distribution unit connects to the mixer/console to provide an interface and power supplies to drive a group of HR-6 remote mixers. Trimpots are provided on the front panel to match the console output levels to the inputs. The HDS-6 is ideal as a low distortion headphone driver for the most critical listening situations. In addition to providing high current differential buffered signals, it also provides power and ground to the HR-6 remote mixers.
|Input Impedances||20 Kohms|
|Sensitivity||Variable, -10 to +4 dBu for rated output.(adjustable with trimpot on each input)|
|Power Output||400 mW at 32 ohms (200 mW at 600 ohms, 500 mW at 100 ohms) from 20 Hz to 20 KHz.|
|Connectors||Inputs: (6) 1/4" phone, Balanced or Unbalanced
Outputs: (2) RJ-45 Jacks
|HDS-6 / HR-6 Connecting Cable||2 10Base-T UTP Ethernet computer cables, Cat. 3 or better.|
|Distortion||0.008% THD at full rated power at 1 KHz; 0.05% THD 20Hz to 20 KHz.|
|Dynamic Range||Greater than 96 dB|
|Frequency Response||+0, -1 dB from 20 Hz to 20 KHz, 400 mW output|
|Power Requirements||120 VAC, 60 Hz, 20 watts|
|Dimensions (H x W x D)||2.5 x 6.75 x 3.5" (6.3 x 17.1 x 8.9 cm)|
|Weight||6.8 lbs. (3.1 kg)|
