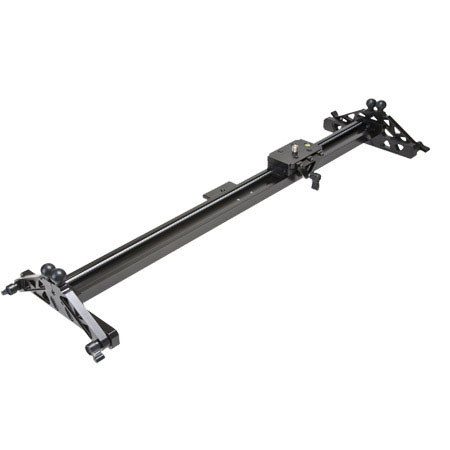

The F&V Lighting S80 28" Camera Slider is made of aluminum alloy and has just under 28" of linear movement end to end. The S80's sliding carriage has a 3/8"-16 male thread, the standard for mounting tripod heads. The carriage has a locking knob as well as a bubble level. The S80 also features adjustable legs that allow you to level the slider when placed on uneven surfaces. The S80's legs lock into place securely, assuring you that their will be no slipping. The legs also have adjustable feet that extend or retract for fine tuning.
The S80 has an offset plate used for mounting onto a tripod. It also features additional threads for mounting the slider across two tripods or for mounting the slider vertically. Please see below for more specifications on the location of the threads.
The S80 is rugged piece of equipment that will bring a professional touch to all of your work. Location of Mounting Threads: This offset plate has four (4) 1/4"-20 female threads and one (1) 3/8"-16 female thread. The S80 has additional mounting threads on either end of the slider. It has six (6) 1/4"-20 female threads and one (1) 3/8"-16 female thread on either end of the slider underneath the support that they terrain legs connect to. It also has one (1) 1/4"-20 female thread and one (1) 3/8"-16 female thread on the same support that run perpendicular to the sliders linear motion allowing for the slider to be mounted vertically.
