Gefen GTV-COMPSVID-2-HDMIS Video Scaler

In Stock Online - Usually ships in 1-2 Days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$299.00 $12 per week
Free Shipping
Add to Wishlist In Stock

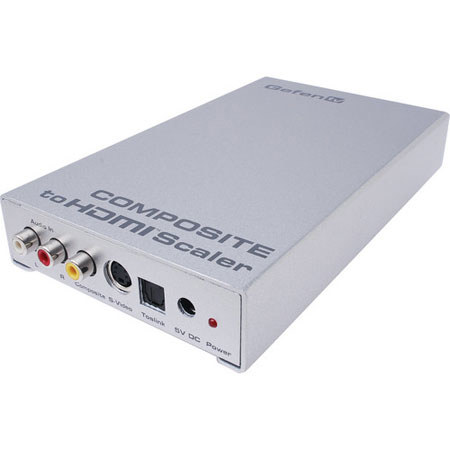

About the Gefen GTV-COMPSVID-2-HDMIS

The Gefen Composite to HDMI Scaler takes either Composite or S-Video as input and converts it to digital HDMI video, scaling it up to a maximum output of 1080p resolution (or 1920x1200 when used with a computer monitor).

Simply plug in your Composite or S-Video video source to its input jack on the rear of the Scaler. The Scaler will automatically detect the video frequency and resolution of the source signal and then convert that picture to a digital HDMI video signal. You will then choose the best output resolution and viewing format of the picture on your HDTV using the buttons on the front of the Scaler. Gefe


  • n Composite To HDMI Scaler
  • 6 ft. RCA Composite Cable (M-M)
  • 5V DC Power Supply
  • User Manual
  • Gefen Warranty


  • Inputs S-Video or Composite Video at 480i or 576i resolutions
  • Outputs HDMI video at resolutions of up to 1080p
  • Input resolution is automatically detected while the output resolution and refresh rate can be selected via the on-screen display (OSD) menu system and front panel push-buttons
  • 48MB frame buffer for frame rate conversion
  • Scales Composite Video and S-Video to HDMI with embedded audio
  • Supports video output resolutions for computer equipment at up to 1920x1200

Gefen GTV-COMPSVID-2-HDMIS Specifications

Maximum Pixel Clock 225 MHz
Video Amplifier Bandwidth 10 MHz
Input DDC Signal 5 Volts p-p (TTL)
S-Video Connector Mini-DIN
Composite Connector RCA Jack
Power Consumption 10 Watts (max)
Power Supply 5V DC
Dimensions (WxDxH) 7x4x1.2" / 17.78x10.16x3.04cm
