Gefen

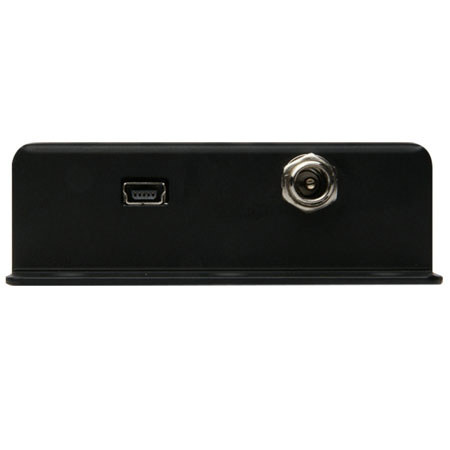

Gefen 1:8 Splitter for HDMI with FST and 3DTV

SKU: GEHDFST148 MFR: GTB-HDFST-148
Please note! This item will be Drop-shipped to you directly from the Manufacturer/Distributor.
Estimated Delivery time is from 3 to 5 Days.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$343.29 $14 per week
Free Shipping
Qty:
Add to Wishlist

About this item

The Gefen 1:8 Splitter for HDMI with FST and 3DTV (White) divides a single hi-def A/V source to up to 8 HDTV displays simultaneously. It is compatible with HD sources supporting resolutions up to 1080p Full HD with Deep Color, 3DTV and lip-sync pass-through and lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio. You can individually disconnect or reconnect the displays without disrupting the switching process. Equipped with FST (Fast Switching Technology), the Splitter eliminates HDMI authentication process, based on the HDMI and HDCP specifications and offers quick and efficient switching.

Using the Mini-USB port, you can upgrade the field firmware. Equipped with advanced EDID (extended display identification data) management features, the splitter easily integrates with different sources and display devices. It supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adaptor. The 1:8 Splitter for HDMI with FST and 3DTV (White) comes with a 6-foot Locking HDMI cable and 5V DC Locking Power Supply.

What's Included With This Item

  • Gefen 1:8 Splitter for HDMI with FST and 3DTV
  • 6-foot Locking HDMI Cable (M-M)
  • 5V DC Locking Power Supply
  • Gefen 2 Years Warranty

Key Features

  • Simultaneously displays a Hi-Def source on up to 8 HDTV displays without signal loss
  • Supports resolutions up to 1080p Full HD with 12-bit Deep Color
  • Supports 3DTV pass-through
  • FST Technology eliminates flashing due to the HDCP authentication process
  • Fast and Slow FST Modes
  • Auto-EDID Management for rapid integration of sources and display devices
  • Supports LPCM 7.1 audio, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio
  • Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter
  • Field-upgradeable firmware using Mini-USB port
  • Locking Power Supply
  • Wall-mountable

Technical Specs

Video Amplifier Bandwidth 225 MHz
Input Video Signal 1.2V p-p
Input DDC Signal 5V p-p (TTL)
Video Connectors (9) HDMI Type A 19-pin, female
USB Port Mini-A, female
Switch Audio (2CH / Multi CH)
FST (Fast / Slow)
EDID (Int / Ext)
Power Indicator (1) LED, red
Power Supply 5V DC, Locking
Power Consumption 10W (max.)
Operating Temperature 0 - 40 deg.C
Dimensions (WxHxD) 3x9.3x1" / 7.62x23.62x2.54cm
