Gefen HDMI Detective Plus Video Capturing Device, 340MHz Bandwidth
What's Included With This Item:
- Gefen HDMI Detective Plus
- 5V DC Power Supply
- 1 Foot HDMI Locking Cable (M-M)
- User's Manual
- Gefen Warranty
The Gefen HDMI Detective Plus maintains a continuous read of stored display information even when switching or relocating HDTV/computer video displays. This is useful when displays lose their EDID (Extended Display Identification Data) on being switched off, disconnected, or reconnected. For initial programming, the unit is attached to the HDTV display's HDMI input connector and it then reads and stores the attached display's EDID to the internal memory. The Detective Plus is then attached to your source HDMI which will then have the EDID even if the display becomes disconnected.

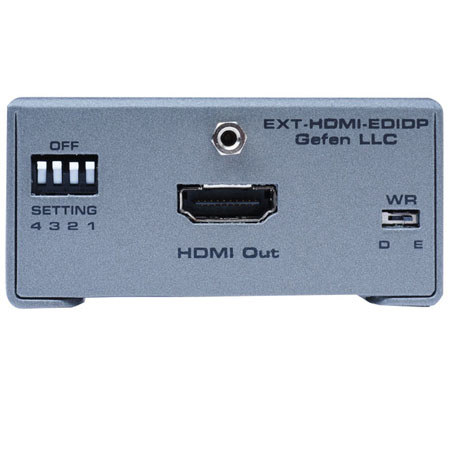

The unit supports 1920 x 1200, 1080p and 2k resolution video and allows you to maintain an uninterrupted smooth video delivery during the entire process. The Detective Plus with 4 built-in selectable generic EDIDs can be used to accommodate standard home theater setups, the settings for which can be selected by moving the DIP switches between the different available settings on the unit for custom audio and video resolution.
Equipped with HDMI 1.3 features such as Dolby TrueHD & DTS Master Audio, Lip-Sync Pass Through and CEC Protocol Pass Through, the unit supports maximum overall throughput signal bandwidth up to 225 MHz After the initial programming step, the HDCP compatible Detective Plus does not require power any further.
|Video Amplifier Bandwidth||340MHz|
|EDID Memory Size||256 Bytes|
|HDMI Connector||Type A,19 pin female|
|Power Supply||5V DC|
|Power Consumption||5W (max.)|
|Dimensions (W x H x D)||2.6 x 1.3 x 1.7" / 6.60 x 3.30 x 4.31cm|
