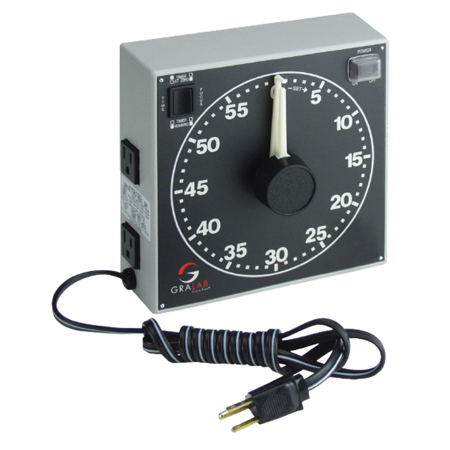

Gralab 300 Timer (Electro/Mechanical)
Ways to Save
Minutes and seconds can easily be read across the room in total darkness, making the 300 ideal for film processing, especially the precise timing required by color processing. The 60-minute time range can be set in minutes for developing and seconds for enlarger control. Two hands permit quick setting by seconds, minutes or combinations of seconds and minutes.
An exclusive dual-cam mechanism provides extreme accuracy for long time intervals: +/-015% at maximum dial setting. Two separate outlet receptacles control an enlarger or printer and safelight by a combination time/focus switch. Each outlet has a 600 watts rated capacity for operating most film processing equipment. The Model 300 can be used with a relay for heavier loads.
The case is made from a blend of hybrid plastics and measures 7 1/2" x 7 1/2" x 2 1/2". It is exceptionally strong, withstands high impact, resists chemicals and moisture, and is electrically non-conductive. The case has a recessed handle in the back and keyholes for wall mounting.
|Time Range||5 Seconds to 60 minutes in Seconds & Minutes|
|Accuracy||.015% at maximum setting|
|Max. Lamp Load||600W|
|Max. Resistive Load||1200W|
|Max. Motor Load||1/3 HP|
|Number of Outlets||(2) 1 for Enlarger or Printer, 1 for Safelight|
|Audible Options||Buzzer automatically signals end of Timing period
can be set for desired volume
|Display||easy-to-read numerals on a large 6 1/2" diameter face.
Numerals, dial and hands are luminous.
|Voltage||Input voltage 100-130 VAC, 50 or 60 Hz|
|Dimensions||7 1/2" x 7 1/2" x 2 1/2|
|Housing Material||Sturdy Polycarbonate|
