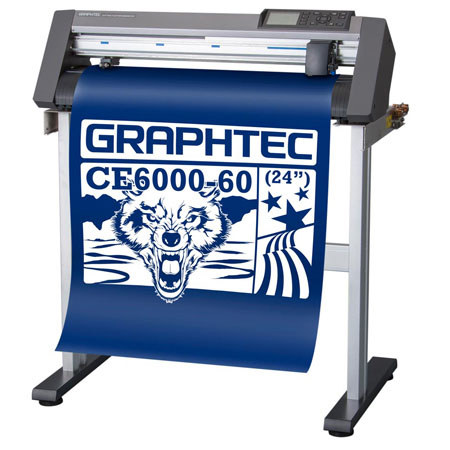

Graphtec CE6000-60 24" Wide E-Class Vinyl Cutter, 35" per second Cutting Speed, 10 mils Media Thickness, 23.7"x164' Max Cutting Area

See all Graphtec items
SKU: GRCE600060 MFR: CE6000-60

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Our Price

$1,745.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Graphtec CE6000-60

The Graphtec CE6000-60 24" Wide "E-Class" Vinyl Cutter sets the standards for high performance cutting plotters. It features professional level functions including registration mark sensing, SmartFeed auto material pre-feed function for enhanced media tracking and has more punch with its 450gf cutting force.

Graphtec CE6000-60 Features

  • Auto registration mark sensor (perfect for print and cuts)
  • Fast and accurate digital servo motor
  • 4 point, dual-axis skew correction
  • Tangential control enhanced precision
  • Graphtec Studio Software
  • Plug-ins available for Adobe Illustrator and CorelDraw

Graphtec CE6000-60 Specifications

CPU
32-bit CPU
Configuration
Grit-rolling friction feed
Drive
Digital Servo Drive
Maximum Cutting Area
603mmx50m (23.7"x164')
Range of Guaranteed Precision
584mmx2m
Compatible Media Widths
Minimum: 50mm (2")
Maximum: 712mm (28")
Number of Push Rollers
2 Rollers
Maximum Media Thickness
0.25mm (10mils)
Maximum Cutting Speed
90cm/s (at 45deg. direction)
Maximum Acceleration
21.2m/s (at 45deg. direction)
Maximum Guaranteed Cutting Force
4.41N (450 gf) in 38 steps
Instantaneous Max Force
Un Guaranteed: 4.9N (500gf)
Minimum character matrix
5mm (0.2") High
Mechanical Resolution
0.005mm
Programmable Resolution
GP-GL: 0.1/0.05/0.01mm
HP_GL: 0.025mm
Repeatability
Max 0.1mm in plot upto 2m
Mountable Number of Tool
1 Tool
Blade Type
Supersteel
Pen Type
Oil Based Ballpoint
Water Based Fiber Tip Pen
Film Types
Self Adhesive Vinyl Film, Fluorescent Film, Commercial Grade Reflective Film, Polyester Film
Perforation Cutting
Yes
Interfaces
RS-232C serial, USB2 (Full Speed)
Data buffer
2MB
Command Sets
GP-GL / HP-GL emulation (control panel selectable)
Registration Mark Sensing
Optical sensor ARMS5.0
Power Requirements
100 to 120 VAC, 220 to 240 V AC (Auto Switch), 50/60 Hz
Software Includes
Windows Driver, Graphtec Studio, Cutting Master 3, Plot Controller
Compatible OS
Windows 8/8 Pro/7 (Excluding Starter & Home Basic)/Vista/XP
Mac OS 10.5.8, 10.8
Operating Environment
10 to 35deg.C [50 to 95deg.F], 35 to 75% RH (non-condensing)
Dimensions (WxDxH)
900x593x106mm (35.43x23.34x4.17")
Weight
21kg (46.29lbs)
Including Stand: 8.10kg (17.85lbs)
