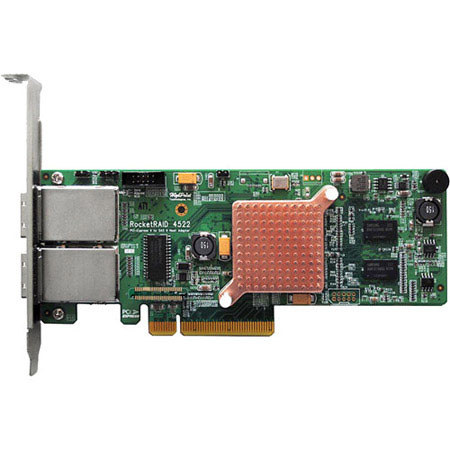

G-Technology HighPoint RocketRAID 4522 PCIe x8 mini-SAS Card
See all G-Technology items

G-Technology HighPoint RocketRAID 4522 PCIe x8 mini-SAS Card, Up to 6Gb/s per port

SKU: GTE0G02735
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

G-Technology HighPoint RocketRAID 4522 PCIe x8 mini-SAS Card Specifications

  • I/O Processor (ROC)

    Marvell 88RC9580 ROC Processor

  • Cache Memory

    512MB DDR 3 Cache memory with ECC protection

  • Battery Backup Unit

    Optional Battery Backup Module (HPTBBU-05)

  • Data Transfer Rate

    Up to 6Gb/s per port

  • Number Of Device Ports

    8 6Gb/s SAS & SATA ports

  • Host Bus Interface

    PCI Express 2.0 x8

  • Device Connector Type

    Dual external Mini-SAS connectors

  • Onboard Indicators /Monitor

    Alarm Buzzer

  • Device Supported

    Up to 128 SATA / SAS devices via SAS Expander

  • Backward Compatibility

    Backward Compatible with HighPoint RAID HBA

  • Physical Form Factor

    Low Profile

  • Dimensions (L x W x H)

    6.57 x 2.68 x 0.06" / 16.68 x 6.80 x 0.15cm

  • UPC Code

    705487192322

About G-Technology HighPoint RocketRAID 4522 PCIe x8 mini-SAS Card

The G-Technology HighPoint RocketRAID 4522 PCIe x8 mini-SAS Card offers the RocketRAID 4522, HighPoint's newest 6Gb/s SAS/SATA RAID HBA. It was designed to meet the demanding requirements of professional business and media applications, including G-Technology's line of hardware. Motion Media, LLC carries the entire line of G-Technology hardware for all your digital media storage solutions.

G-Technology HighPoint RocketRAID 4522 PCIe x8 mini-SAS Card Features

  • SAS 6Gb/s RAID-On-Chip Processor
  • Superior Reliability
  • Seamless Upgrade Paths
  • True Host-to-Target SAS
  • 6Gb/s Connectivity
  • Support Windows, Linux and FreeBSD Operating Systems

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • SAS 6Gb/s RAID-On-Chip Processor
  • Superior Reliability
  • Seamless Upgrade Paths
  • True Host-to-Target SAS
  • 6Gb/s Connectivity
  • Support Windows, Linux and FreeBSD Operating Systems
