Galaxy Audio AS-900-K1 Audio Personal Wireless Stage Monitoring System, Frequency 630.2 MHz

Galaxy Audio
SKU: GXAS900K1 MFR: AS-900-K1
Free Shipping

See all shipping options

In Stock Online - Usually ships within 1-2 Days learn more

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $14.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $32.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $75.95

Our Price

$199.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Galaxy Audio AS-900-K1

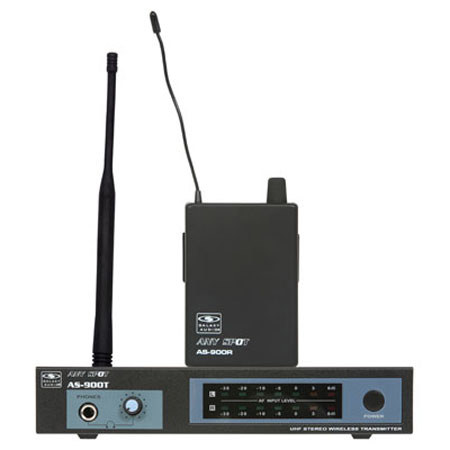

The AS-900-K1 is Wireless Personal Monitors, (WPM) from Galaxy Audio. Wireless Personal Monitor is effective at eliminating stage noise, protecting users ears from damage, allowing the user to move around the stage or audience and continue to hear and eliminate feedback. The AS-900R (receiver) features an 80mw headphone amplifier with a standard 3.5mm (1/8") headphone output. The AS-900R is sure to be plenty loud for any environment. The receiver has a built in limiter.

The AS-900T (transmitter) has two XLR/1/4" combo jack for its inputs, stereo/mono switch & headphone output with volume control. The transmitter includes a single rack mount kit, for mounting 1 unit in one rack space. A rack tray is available for mounting two transmitters side by side in one rack space.

Galaxy Audio AS-900-K1 Features

  • RF/Low Battery Indicator, GREEN indicates Receiver and Transmitter ON and receiving RF. RED indicates Low Batteries
  • Earphone jack
  • Audio output control and On/Off switch Left turn for output level decrease, right turn for output level increase

Galaxy Audio AS-900-K1 Specifications

System: Transmitter Output Level Band
UHF
System: Frequency
630.2 MHZ
System: Transmitter Output Level
10dBm
System: Operating Range
Under Typical Conditions: 150' (50m)
System: Audio Frequency Response
+/-3dB
80Hz-16KHz
System: Total Harmonic Distortion
+/-30KHz deviation 1KHz tone <1%
System: Dynamic Range
>90dB A-weighted
System: Operating Temperature Range
14deg.F to 122deg.F (-10deg. C to +50deg. C)
Bodypack Receiver: Audio Output Level
100mW
Bodypack Receiver: Sensitivity
-94dBm for 30dB SINAD, typical
Bodypack Receiver: Image Rejection
>70dB
Bodypack Receiver: Power Requirements
2 AA size alkaline or rechargeable batteries
Bodypack Receiver: Battery Life
About 5 hours
Transmitter: Max Audio input level
+6dBV
Transmitter: Gain Adjustment Range
40dB
Transmitter: Input Impedance
100KOhms
Transmitter: XLR input
Impedance balanced
Pin1 Ground (cable shield)
Pin2 Audio
Pin3 No Audio
Transmitter: Power Requirements:
12-18 V dc at 300mA supplied by external power supply
Bodypack Receiver: Dimensions
3.74" x 2.6" x 1" (95mm x 65mm x 25mm) (H x W x D)
Transmitter: Dimensions (H x W x D)
1.5" x 8.3" x 3.8" (38mm x 212mm x 96mm)
Bodypack Receiver: Weight
3.2oz. (90 g) without batteries
Transmitter: Weight
21oz (605 g)
