Galaxy Audio

Galaxy Audio AS-HSCK Cardioid Headset Any Spot Handheld Wireless Camera Kit

SKU: GXASHSCK MFR: AS-HSCK
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$339.99
Free Shipping
Qty:

Add to Wishlist In Stock

Protect your investment

About this item

Galaxy Audio AS-HSCK Any Spot Handheld Wireless Camera Kit is great for field reporting or anytime live audio/video is recorded or transmitted. This system operates in the UHF Frequency band and utilizes a Phase Locked Loop (PLL) synthesizer control for improved reception and channel selection. The system provides 64 selectable frequencies, via the rotary switches, making it easy to avoid frequency interference.

The Receiver can be attached to the camera and features a Stereo Line Output for delivering the audio signal to the camera. The Receiver also features a separate Stereo Headphone Output, with volume control, which allows the camera operator to monitor the audio signal.

What's Included With This Item

  • Galaxy Audio AS-1000R Receiver

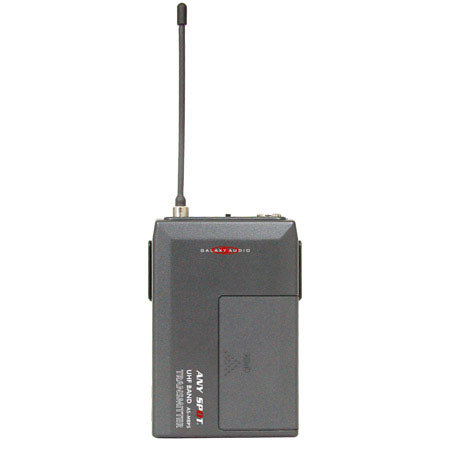

  • AS-MBP5 Body Pack
  • AS-HS Headset
  • 3.5mm Line Cable
  • Ear Buds
  • Velcro for Mounting
  • Galaxy Audio 1 Year Limited Warranty

Key Features

  • Two 1/4-wave antennas for true diversity reception
  • Two stereo 1/8" outputs for ear buds and interfacing with recording equipment
  • Multi-Color LED indicator allows the user to obtain more status information from the receiver
  • Charging input allows for re-charging of batteries without having to remove them. (For use only with optional charger unit and rechargeable batteries)
  • Up to 64 selectable frequencies are available to set up a multi-frequency broadcasting system while avoiding interference. The frequency group and channel selection switches are contained inside the battery compartment, which helps prevent the accidental changing of channels during use
  • In the rare event of a signal dropout, the "Auto-Mute" circuitry prevents intermittent static from going into the users ears

Technical Specs

Transmitter: Carrier Frequency Range UHF 682-698MHz
Transmitter: Oscillator PLL synthesized, 64-selectable channels
Transmitter: Frequency Stability ±0.005%
Transmitter: Maximum Deviation ±48KHz
Transmitter: Spurious Emission >60dB below carrier frequency
Transmitter: T.H.D. <1%(at 1KHz)
Transmitter: Microphone Cartridge Handheld: uni-directional dynamic
Lavalier: uni-directional electret condenser
Headset: omni-directional electret condenser
Transmitter: Power Supply DC 3V (2 x 1.5V AA batteries or rechargeable batteries)
Transmitter: Current Consumption 65mA ± 5mA
Receiver: Frequency Range UHF 682-698MHz. 64 CH
Receiver: Oscillator PLL synthesized
Receiver: Receiving Mode Single channel. Diversity
Receiver: Frequency Stability ±0.005%
Receiver: Receiving Sensitivity At 5 dBuV over 80dB S/N ratio
Receiver: Image & Spurious Rej. 80dB minimum
Receiver: Selectivity > 50dB
Receiver: Modulation Mode FM
Receiver: IF Frequency 1st: 56MHz 2nd: 10.7MHz
Receiver: Dynamic Range >96dB
Receiver: S/N Ratio >94dB, at 15KHz deviation and 60dBuV antenna input
Receiver: AF Response Headphone: 100Hz to 10KHz (±3dB)
Line: 100Hz to 10KHz (±3dB)
Receiver: T.H.D. <1%(at 1KHz)
Receiver: Power Supply DC 3V ( 2 x 1.5V AA batteries or rechargeable batteries)
Receiver: Audio Output Headphone stereo output: 20mW, Line stereo
output level: -10dB
Receiver: Current Consumption 130mA ± 10mA
Transmitter: Dimension (W x H x D) 3" x 4.2" x 1.2" (76 x 106 x 29mm)
Receiver: Dimension (W x H x D) 3" x 4.2" x 1.2" (76 x 106 x 29mm)
