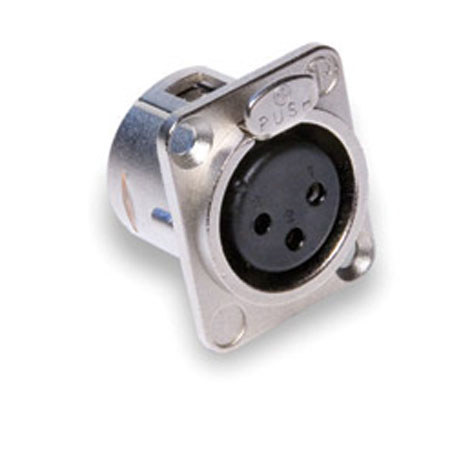

Hosa Technology Hosa Neutrik 3-Pole Female XLR Connector
See all Hosa Technology items

Hosa Technology Neutrik 3-Pole Female XLR Connector

SKU: HONC3FDL1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Hosa Technology NC3FD-L-1 Specifications

  • Electrical: Capacitance

    Between Contacts: =4 pF

  • Electrical: Contact Resistance

    Inner: =5 mOhm

  • Electrical: Dielectric Strength

    1.5 kVDC

  • Electrical: Insulation Resistance

    Initial: >2 GOhm

  • Electrical: Rated Current Per Contact

    16 A

  • Electrical: Rated Voltage

    50 V

  • Mechanical: Insertion Force

    =20 N

  • Mechanical: Withdrawal Force

    =20 N

  • Mechanical: Lifetime

    >1,000 mating cycles

  • Mechanical: Wire Size

    0.1 sq. in (2.5 sq. mm)

  • Mechanical: Wiring

    Solder contacts

  • Mechanical: Locking Device

    Latch lock

  • Material: Contact Plating

    2 um Ag over 2 um Ni

  • Material: Contacts

    Bronze (CuSn8)

  • Material: Insert

    Polyamide (PA 6.6 30 % GR)

  • Material: Locking Element

    Stahl Ck67

  • Material: Shell

    Zinc diecast (ZnAl4Cu1)

  • Material: Shell Plating

    Nickel

  • Approvals

    UL

  • Flammability

    UL 94 HB

  • Standard Compliance

    IEC 61076-2-103

  • Protection Class

    IP40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature Range

    -22 to 176deg.F (-30 to 80deg.C)

  • Diameter

    0.93"/ 2.36cm

  • Dimensions

    1.22x1.02" (31x26 mm)

About Hosa Technology NC3FD-L-1

The Hosa Neutrik 3-Pole Female XLR Connector is designed for the universal D-size metal body XLR panel mount series.

Hosa Technology NC3FD-L-1 Features

  • UL recognized component
  • Robust "D" metal shell
  • Standardized D sized 0.95" (24mm) panel cutout
