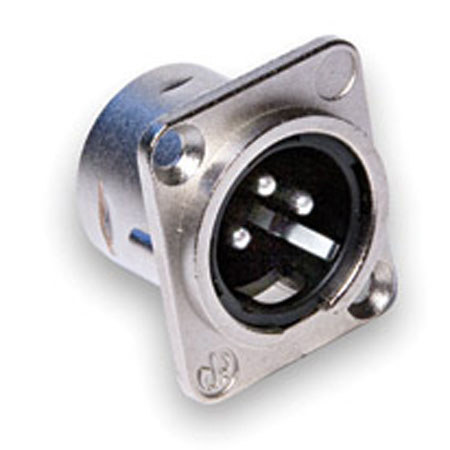

Hosa Technology Hosa Neutrik 3-Pole Male XLR Receptacle
See all Hosa Technology items

Hosa Technology Neutrik 3-Pole Male XLR Receptacle

SKU: HONC3MDL1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Hosa Technology Hosa Neutrik 3-Pole Male XLR Receptacle Specifications

  • Capacitance

    Between Contacts: =4 pF

  • Contact Resistance

    Inner: =5 mOhm

  • Dielectric Strength

    1.5 kVDC

  • Insulation Resistance

    Initial: >2 GOhm

  • Rated Current Per Contact

    16 A

  • Rated Voltage

    50 V

  • Insertion Force

    =20 N

  • Withdrawal Force

    =20 N

  • Lifetime

    >1,000 mating cycles

  • Wiring

    Solder contacts

  • Mounting Direction

    Front

  • Locking Device

    Latch lock

  • Chassis Shape

    D

  • Contact Plating

    2 um Ag over 2 um Ni

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking Element

    Stahl Ck67

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell Plating

    Nickel

  • Approvals

    UL

  • Flammability

    UL 94 HB

  • Standard Compliance

    IEC 61076-2-103

  • Protection Class

    IP40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature Range

    -22 to 176deg.F (-30 to 80deg.C)

  • Connector

    XLR3M

  • Dimensions

    1.22x1.02" (31x25.9 mm)

About Hosa Technology Hosa Neutrik 3-Pole Male XLR Receptacle

The Hosa Neutrik 3-Pole Male XLR Receptacle is designed for the universal D-size metal body XLR panel mount series.

Hosa Technology Hosa Neutrik 3-Pole Male XLR Receptacle Features

  • UL recognized component
  • Robust "D" metal shell
  • Standardized D sized 0.95" (24mm) panel cutout
