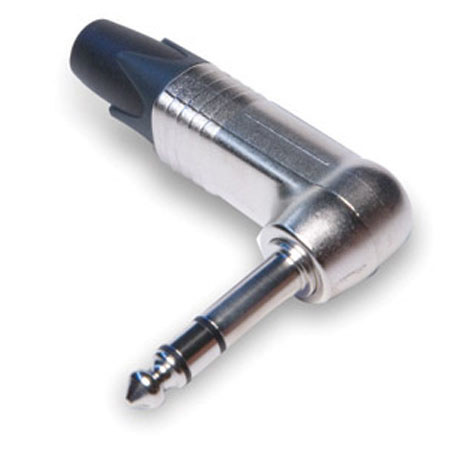

Hosa Technology NP3RX Neutrik Professional Right-Angle 1/4" Phone Plug

Hosa Technology
Made in USA

Our Price

$6.89
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Hosa Technology NP3RX

The Hosa NP3RX Neutrik Professional Right-Angle 1/4" Phone Plug features a thin A-gauge 1/4" plug with unique Neutrik chuck type strain relief. The slimline shell with a width of 0.57" (14.5mm) meets the requirements for high-density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. This plug serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Hosa Technology NP3RX Features

  • All metal housing eliminates the plastic cover of the predecessor NPRCS and improves further durability and EMI protection
  • Extra slim 1/4" plug for high packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for handling convenience
  • Precision machined one-piece contact avoids hook up of tip contact

Hosa Technology NP3RX Specifications

Connection Type
Plug
Gender
Male
Contact Resistance
Depends on mating connector mOhm (inner)
Dielectric Strength
1 kVDC
Insulation Resistance
>2 GOhm (initial)
Rated Current Per Contact
Depends on mating connector A
Rated Voltage
50 V
Cable O.D.
4 to 7 mm
Lifetime
>1000 mating cycles
Wire Size
1 mm2, 18 AWG
Wiring
Solder contacts
Bushing
Polyacetal (POM) + PU
Contact Plating
2 um Ni (Su)
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA 6.6 30 % GR)
Shell
Zinc diecast (ZnAl4Cu1)
Shell Plating
Nickel
Strain Relief
Polyacetal (POM)
Standard Compliance
IEC 60603-11 / EIA RS-453
Solderability
Complies with IEC 68-2-20
Temperature Range
-4 to 149deg.F (-20 to 65deg.C)
