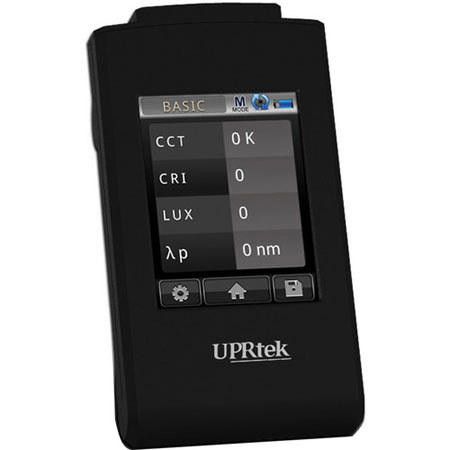

About the iKan MK350

The Ikan MK350 Spectrometer puts light spectrum data at your fingertips, enabling you to capture in-time readings without the need of a PC. The unit's advanced sensors measure illuminance, chromaticity, dominant wavelength and the spectral distribution of all visible light (not Infrared or Ultra Violet). Screen data is rendered as crisp, colorful graphics.

It has a 3.5" touch-pad interface that's both ergonomic and user-friendly. Choose either the single-time or continuous capture mode to see data displayed in 1 second bursts. The MK350 displays real-time CCT (Correlative Color Temperature), CRI (Color Rendering Index), Lux (illuminance), Peak Wavelength CIE1931 and CIE1976 readings via 4 different switchable modes.

Measurement results can be stored on an SD card in Excel and BMP formats and transferred via USB. To ensure measurement accuracy, the MK350 can be re-calibrated using the unit's Dark Calibration feature. A Wi-Fi-SD solution allows one-to-one transmission of data from the unit to a nearby PC (not via the internet).

Now, acquiring accurate readings for spectrum analysis is no longer a hassle for Lighting Directors, Directors of Photography or Gaffers looking to match studio or in-camera color temperatures.

iKan MK350 Includes

  • MK350 Spectrometer
  • Li-ion Rechargeable Battery
  • Custom Hard Case
  • Screen Protector
  • Sensor Cover
  • Meter Bag with Belt Loop
  • Neck Strap
  • Sensor Cover Strap
  • USB Cable
  • 100 to 240VAC Power Supply (Charges Battery)
  • Ikan 1 Year Warranty

iKan MK350 Features

  • Basic: Displays a numerical readout of color temperature, CRI, Lux and the peak or brightest wavelength in the light
  • Spectrum: Provides a graphic display of the wavelengths of the light you are measuring
  • CIE 1931: Graphically displays the measurement of the light on a CIE 1931 scale
  • CIE 1976: Graphically displays the measurement of the light on a CIE 1976 scale
  • Integration: You can set the integration time to automatic or on manual you can select from between 8 and 1000 milliseconds
  • Capture: You can select to capture immediately, or have the meter measure continuously, processing every 3 seconds

iKan MK350 Specifications

Sensor CMOS linear image sensor
Spectral Width Approximately 12 nm (half bandwidth)
Receptor Size 6.6 mm +/- 0.1 mm
Cosine Correction Yes
Measurement Range 70 to 70,000 lux
Wavelength Range 360 to 750 nm
Integration Time Range 8 to 1000 ms
Capture Function one time / continuous
Integration Mode Auto / manual
Measuring Modes 1. Basic Value Mode
2. Spectrum Graph Mode
3. CIE 1931 Chromaticity Diagram Mode
4. CIE 1976 U.C.S, Chromaticity Diagram Mode
Measuring Capabilities 1. Luminance / Lux
2. Spectral radiance
3. C.I.E. Chromaticity Coordinates
a. CIE 1931 x,y, coordinates
b. CIE 1976 U.C.S. u', v' coordinates
4. Peak Wavelength
5. Correlated Color Temperature, CCT (in Kelvin)
6. Color Rendering Index (CRI) - Rendering Average (RA)
Digital Resolution 16 bits
Dark Calibration Yes
Stray Light -25 dB max
Wavelength Data Increment 1 nm
Wavelength Reproducibility ± 1 nm
Illuminance Accuracy Illuminant A at 2856K at 20,000 Lux
± 5%
Color Accuracy Illuminant A at 2856K at 20,000 Lux
CIE 1931 x,y: ± 0.0025
Color Repeatability Illuminant A at 2856K at 20,000 Lux
CIE 1931 x,y: ± 0.0005
CCT Accuracy Illuminant A at 2856K at 20,000 Lux
± 2%
CRI Accuracy at Ra Illuminant A at 2856K at 20,000 Lux
± 1.5%
Display: Type LCD
Display: Touch Panel Yes
Display: Screen Size (Diagonal) 3.5"
Display: Resolution 320x240
Removable Media SD Card
SD 2.0
SDHC (up to 32 GB)
Minimum Capacity: 1GB
Maximum Capacity: 32GB
Maximum Files Approximately 2000 (on an available 2GB SD card)
File System FAT 32
Battery Type Rechargeable Li-ion
Battery Capacity 2500 mAh
Battery Operation Time Approximately 5 hours on a full charge
Language Support English, traditional Chinese, Simplified Chinese, Japanese
Data Output Interface SD 2.0
SDHC (up to 32GB)
USB 2.0
Data Format Compatible Microsoft Office Excel / BMP Date Format
Operating Temperature 32 to 95deg.F (0 to 35deg.C)
Storage Temperature 14 to 104deg.F (-10 to 40deg.C)
Dimensions (HxWxD) 5.7x3.1x0.9" (144.8x78.7x22.8mm)
Weight With battery: Approximately 8.8oz (250g)
