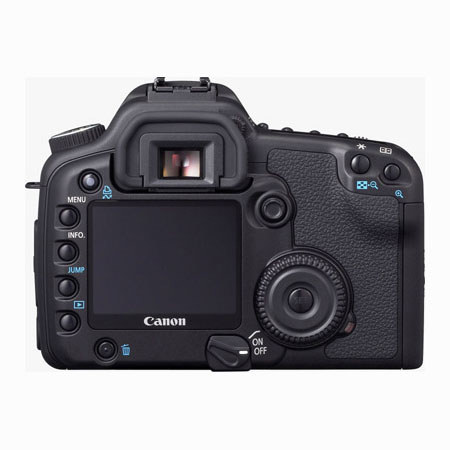

Canon EOS-30D Digital SLR Camera Body Kit with 18-55mm f/3.5-5.6 Lens - USA Warranty

Digital, single-lens reflex, AF/AE camera

Type I or II CF card

0.89 x 0.59 in./22.5 x 15.0mm (APS-C size sensor)

Canon EF lenses (including EF-S lenses)

1.6x

High-sensitivity, high-resolution, single-plate, CMOS sensor

Approx. 8.20 megapixels

Approx. 8.50 megapixels

3:2 (Horizontal : Vertical)

RGB primary color filter
Fixed position in front of the CMOS sensor

JPEG, RAW, Canon .CR2
Recording Format: JPEG, RAW and RAW+JPEG simultaneous recording provided. The RAW and JPEG imagesare saved as separate files in the CF card.

(1) Large/Fine: Approx. 3.6MB (3,504 x 2,336) (2) Large/Normal: Approx. 1.8MB (3,504 x 2,336) (3) Medium/Fine: Approx. 2.2MB (2,544 x 1,696) (4) Medium/Normal: Approx. 1.1MB (2,544 x 1,696) (5) Small/Fine: Approx. 1.2MB (1,728 x 1,152) (6) Small/Normal: Approx. 0.6MB (1,728 x 1,152) (7) RAW: Approx.8.7MB (3,504 x 2,336)

Eye-level SLR with fixed pentaprism
Coverage: Approx. 95% horizontally and vertically (coverage against JPEG Large)
Magnification: 0.9x (-1 dpt with 50mm lens at infinity)
Eyepoint: Approx. 20mm
Dioptric Adjustment Correction: -3.0 to +1.0 diopter

AF (AF points, focus confirmation light), Exposure (shutter speed, aperture, spot metering circle, exposure level, AE lock, exposure compensation, AEB level,bulb, ISO speed), Flash (flash ready, red-eye reduction lamp on, high-speed sync, FE lock, FEB shooting, flash exposure compensation, insufficient flash warning during FE lock), White balance correction, Maximum burst, CF card full warning, CF card error warning, No CF card warning

Enabled with depth-of-field preview button (with Speedlite 580EX, 430EX, MR-14EXor MT-24EX; pressing the depth-of-field preview button fires a modeling flash)

TFT color, liquid-crystal monitor - 2.5 in. diagonal with a viewing angle of approx. 170� vertically and horizontally - Approx. 230,000 pixels - 100% Coverage -5 Level Brightness Control

15 languages provided (English, German, French, Dutch, Danish, Finnish, Italian,Norwegian, Swedish, Spanish, Russian, Simplified Chinese, Traditional Chinese, Korean, Japanese)

Image display format: Single image, 9-image index, Magnified zoom (approx. 1.5x to 10x), Auto play, Auto play right after shooting
Highlight Alert: In the single image (INFO) display mode, the areas with highlights containing no image information will blink

Single images can be erase-protected or not.
One image or all images in the CF card can be erased (except protected images).

TTL-CT-SIR with a CMOS sensor

9 AF points (Automatic selection, Manual selection) - AF Working Range EV -0.5-18 (ISO 100 at 68�F/20�C) - AF-assist Beam: Intermittent firing of built-in flash (must be manually raised in P, Tv, Av, M and A-DEP Exposure modes)

Autofocus: One-Shot AF, Predictive AI Servo AF, AI Focus AF (automatic switchingbetween One-Shot/Predictive AI Servo AF); Manual Focus (MF)

Max. aperture TTL metering with 35-zone SPC
(1) Evaluative metering (linked to all AF points)
(2) Partial metering (approx. 9% at center of viewfinder)
(3) Spot metering (approx. 3.5% at center of viewfinder)(
4) Center-weighted average metering

Vertical-travel, mechanical, focal-plane shutter with all speeds electronically controlled

1/8000 to 30 sec. (1/3- and 1/2-stop increments), X-sync at 1/250 sec. Shutter durability: Approx. 100,000 exposures

Remote control with N3-type terminal

EV 1-20 (at 20�C/68�F with EF50mm f/1.4 lens, ISO 100)

Program AE (shiftable), Shutter-priority AE, Aperture-priority AE, Auto Depth-of-field AE (non-shiftable), Full auto (non-shiftable), Programmed image control modes, Manual exposure, E-TTL II autoflash program AE

Basic Zone: automatically set by the camera; Creative Zone: equivalent to ISO 100-1,600 (in 1/3-stop increments, ISO speed can be expanded to ISO 100-3,200)

(1) User-set with multi-controller (2) AEB (Auto Exposure Bracketing)

+/- 2 stops in 1/3- or 1/2-stop increments

Auto white balance with the image sensor
White balance bracketing: +/- 3 stops in 1-stop increments
White balance correction: blue/amber bias +/- 9 magenta/green bias +/- 9 levels

Auto pop-up, retractable, built-in flash in the pentaprism - E-TTL II autoflash - Flash Exposure Compensation: +/-2 stops in 1/3- and 1/2-stop increments - Recycling Time Approx. 3 sec.

43 ft./13m (ISO 100)

17mm lens focal length (equivalent to 27mm in 35mm format)

EOS-dedicated Speedlite: E-TTL II autoflash with EX-series Speedlite

Provided; not sensitive to flash polarity

Single, Continuous (high-speed approx. 5 fps / low-speed approx. 3 fps), Self-timer

High-speed approx. 5 fps / low-speed approx. 3 fps (at a shutter speed of 1/250 sec. or faster)

JPEG: high-speed approx. 30 frames (Large/Fine) - RAW: high-/low-speed approx. 11 frames - RAW+JPEG: high-/low-speed approx. 9 frames

USB 2.0 Hi-Speed, NTSC/PAL for video output

with the Print/Share button - Compatible Printers: CP and SELPHY Compact Photo Printers, PIXMA Photo Printers and PictBridge compatible printers (via USB Interface Cable IFC-400PCU)

NTSC/PAL

One Lithium-Ion Battery Pack BP-511A/BP-514/BP-511/BP-512 - Back up Battery: One CR2016 Lithium Battery

5.7 x 4.2 x 2.9 in./144 x 105.5 x 73.5mm (W x H x D )

24.7 oz./700g (body only)

0�C - 40�C / 32�F - 104�F

85% or less

approx. 65 msec.

Canon EF-S 18-55 3.5/5.6

11 elements in 9 groups

75� 20' - 27� 50'

0.28m / 0.92 ft. to infinity

58mm

2.7" x 2.6" / 69mm x 66.2mm,

6.07oz. / 190g
