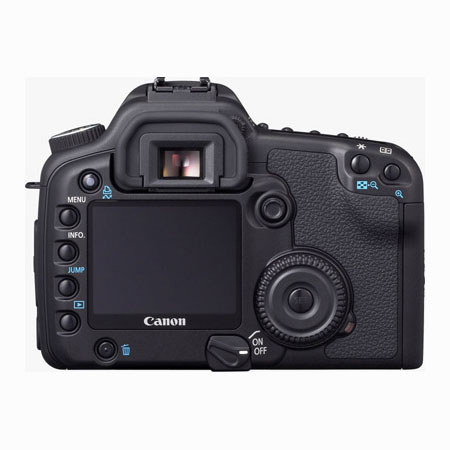

Canon EOS-30D Digital SLR Camera Body with Canon EF 28-135mm f/3.5-5.6 IS USM Image Stabilized Zoom Lens

SKU: ICA30DK2

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Canon EOS-30D SLR Camera Body w/Can EF 28-135mm IS Lens Specifications

  • Camera Type

    Digital AF/AE SLR

  • Recording Medium

    CompactFlash (CF) Card Type I & II

  • Image Format

    0.89 x 0.59 in./22.5 x 15.0mm (APS-C size sensor)

  • Compatible Lenses

    Canon EF lenses (including EF-S lenses)

  • Lens Mount

    Canon EF mount

  • Lens Focal Length Conversion Factor*

    1.6x

  • Image Sensor Type

    High-sensitivity, high-resolution, single-plate, CMOS sensor

  • Image Sensor Pixels

    Approx. 8.20 megapixels

  • Image Sensor Total Pixels

    Approx. 8.50 megapixels

  • Aspect Ratio

    3:2 (Horizontal : Vertical)

  • Color Filter System

    RGB primary color filters

  • Low-pass Filter

    Fixed position in front of the CMOS sensor

  • Recording Format

    JPEG, RAW and RAW+JPEG simultaneous recording provided. The RAW and JPEG images are saved as separate files in the CF card.

  • Image Format

    JPEG, RAW, Canon .CR2

  • File Size

    (1) Large/Fine: Approx. 3.6MB (3,504 x 2,336) (2) Large/Normal: Approx. 1.8MB (3,504 x 2,336) (3) Medium/Fine: Approx. 2.2MB (2,544 x 1,696) (4) Medium/Normal: Approx. 1.1MB (2,544 x 1,696) (5) Small/Fine: Approx. 1.2MB (1,728 x 1,152) (6) Small/Normal: Approx. 0.6MB (1,728 x 1,152) (7) RAW: Approx. 8.7MB (3,504 x 2,336)

  • Folders

    Automatic folder creation/selection; up to 9,999 images per folder (new folder can be created with Manual reset option at any time)

  • File Numbering

    (1) Continuous numbering (2) Auto reset (3) Manual reset (new folder created, with file numbering reverting to 0001)

  • Color Space

    Selectable between sRGB and Adobe RGB

  • Interface

    USB 2.0 Hi-Speed, NTSC/PAL for video output

  • White Balance Settings

    Auto, Preset (Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash), Manual (Custom, or user-set Color Temperature)

  • Auto White Balance

    Auto white balance with the image sensor

  • Color Temperature Compensation

    White balance bracketing: +/- 3 stops in 1-stop increments
    White balance correction: blue/amber bias +/- 9 magenta/green bias +/- 9 levels
    When blue/amber bias and magenta/green bias set with White balance correction, white balance bracketing cannot be set to more than +/- 9 levels

  • Viewfinder Type

    Eye-level SLR with fixed pentaprism

  • Viewfinder Coverage

    Approx. 95% horizontally and vertically (coverage against JPEG Large)

  • Viewfinder Magnification

    0.9x (-1 dpt with 50mm lens at infinity)

  • Eyepoint

    Approx. 20mm

  • Dioptric Adjustment Correction

    -3.0 to +1.0 diopter

  • Focusing Screen

    Fixed, Precision Matte screen (non-interchangeable)

  • Mirror

    Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with lenses up to EF 600mm f/4L USM)

  • Viewfinder Information

    AF (AF points, focus confirmation light), Exposure (shutter speed, aperture, spot metering circle, exposure level, AE lock, exposure compensation, AEB level, bulb, ISO speed), Flash (flash ready, red-eye reduction lamp on, high-speed sync, FE lock, FEB shooting, flash exposure compensation, insufficient flash warning during FE lock), White balance correction, Maximum burst, CF card full warning, CF card error warning, No CF card warning

  • Depth-of-Field Preview

    Enabled with depth-of-field preview button (with Speedlite 580Ex, 430Ex, MR-14Ex or MT-24Ex; pressing the depth-of-field preview button fires a modeling flash)

  • Eyepiece Shutter

    None (eyepiece cover provided on strap)

  • Autofocus Type

    TTL-CT-SIR AF-dedicated CMOS sensor

  • AF Points

    9 AF points

  • AF Working Range

    EV -0.5-18 (ISO 100 at 68°F/20°C)

  • Focusing Modes

    Autofocus: One-Shot AF, Predictive AI Servo AF, AI Focus AF (automatic switching between One-Shot/Predictive AI Servo AF); Manual Focus (MF)

  • AF Point Selection

    Automatic selection, Manual selection

  • Selected AF Point Display

    Superimposed on viewfinder and LCD panel

  • AF-assist Beam

    Intermittent firing of built-in flash (must be manually raised in P, Tv, Av, M and A-DEP Exposure modes)

  • Exposure Control Metering Modes

    Max. aperture TTL metering with 35-zone SPC
    (1) Evaluative metering (linked to all AF points)
    (2) Partial metering (approx. 9% at center of viewfinder)
    (3) Spot metering (approx. 3.5% at center of viewfinder)
    (4) Center-weighted average metering

  • Metering Range

    EV 1-20 (ISO 100 at 68°F/20°C with EF 50mm f/1.4 USM lens)

  • Exposure Control Systems

    Program AE (shiftable), Shutter-priority AE, Aperture-priority AE, Auto Depth-of-field AE (non-shiftable), Full auto (non-shiftable), Programmed image control modes, Manual exposure, E-TTL II autoflash program AE

  • ISO Speed Range

    Basic Zone: automatically set by the camera; Creative Zone: equivalent to ISO 100-1,600 (in 1/3-stop increments, ISO speed can be expanded to ISO 100-3,200)

  • Exposure Compensation

    (1) User-set with multi-controller (2) AEB (Auto Exposure Bracketing)
    Bracketing range: +/- 2 stops in 1/3- or 1/2-stop increments

  • AE Lock

    Auto: Applied in One-Shot AF mode with evaluative metering when focus is achieved
    User-set: Applied with AE lock button

  • Shutter Type

    Vertical-travel, mechanical, focal-plane shutter with all speeds electronically controlled

  • Shutter Speeds

    1/8000 to 30 sec. (1/3- and 1/2-stop increments), x-sync at 1/250 sec
    Shutter durability: Approx. 100,000 exposures

  • Shutter Release

    Soft-touch electromagnetic release; shutter "lag time" approx. 65 msec.

  • Self-timer

    10 sec. delay, 2 sec. delay with C.Fn-12-1 (mirror lockup)

  • Remote Control

    Remote control with N3-type terminal

  • Built-in Flash Type

    Auto pop-up, retractable, built-in flash in the pentaprism

  • Guide Number

    43 ft./13m (ISO 100)

  • Recycling Time

    Approx. 3 sec.

  • Flash-ready Indicator

    Flash-ready indicator lights in viewfinder

  • Flash Coverage

    17mm lens focal length (equivalent to 27mm in 35mm format)

  • Flash Metering System

    E-TTL II autoflash

  • Flash Exposure Compensation

    +/-2 stops in 1/3- and 1/2-stop increments

  • EOS External Flash

    E-TTL II autoflash with Ex Series Speedlites

  • PC Terminal

    Provided; not sensitive to flash polarity

  • Drive Modes

    Single, Continuous (high-speed approx. 5 fps / low-speed approx. 3 fps), Self-timer

  • Continuous Shooting Speed

    High-speed approx. 5 fps / low-speed approx. 3 fps (at a shutter speed of 1/250 sec. or faster)

  • Max. Burst During Continuous Shooting

    JPEG: high-speed approx. 30 frames (Large/Fine)
    RAW: high-/low-speed approx. 11 frames
    RAW+JPEG: high-/low-speed approx. 9 frames

  • LCD Monitor Type

    TFT color, liquid-crystal monitor

  • Screen Monitor Size

    2.5 in. diagonal with a viewing angle of approx. 170° vertically and horizontally

  • LCD Monitor Pixels

    Approx. 230,000 pixels

  • Coverage

    100%

  • Brightness Control

    5 levels provided

  • Image Display Format

    Single image, 9-image index, Magnified zoom (approx. 1.5x to 10x), Auto play, Auto play right after shooting

  • Highlight Alert

    In the single image (INFO) display mode, the areas with highlights containing no image information will blink

  • Protection

    A single image can be protected or unprotected

  • Erase

    A single image or all images stored in a CF card can be erased if they are unprotected

  • Direct Printing from the Camera

    Enabled with the Print/Share button

  • Compatible Printers

    CP and SELPHY Compact Photo Printers, PIxMA Photo Printers and PictBridge compatible printers (via USB Interface Cable IFC-400PCU)

  • Settings

    Print quantity, style (image, paper, borders, date), trimming

  • Menu Categories

    Shooting menu: Red
    Playback menu: Blue
    Setup menu: Yellow

  • LCD Monitor Language

    15 languages provided (English, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Russian, Simplified Chinese, Traditional Chinese, Korean, Japanese)

  • Firmware Update

    Enabled by the user (in Creative Zone only)

  • Battery

    One Lithium-Ion Battery Pack BP-511A/BP-514/BP-511/BP-512

  • Number of Shots

    Approx. 1,100 (68°F/20°C, flash off), approx. 900 (32°F/0°C, flash off)
    The above figures comply with CIPA testing standards and apply when a fully-charged Battery Pack BP-511A is used.

  • Battery Check

    Automatic

  • Power Saving

    Provided; power turns off after set time of 1, 2, 4, 8, 15 or 30 min.

  • Back-up Battery

    One CR2016 Lithium Battery

  • Operating Temperature Range

    32-104°F/0-40°C

  • Operating Humidity Range

    85% or less

  • Dimensions (W x H x D)

    5.7 x 4.2 x 2.9 in./144 x 105.5 x 73.5mm

  • Weight

    24.7 oz./700g (body only)

  • Warranty

    Canon 1 year parts and labor warranty

13 Accessories for Canon EOS-30D Digital SLR Camera Body with Canon EF 28-135mm f/3.5-5.6 IS USM Image Stabilized Zoom Lens

  • All Accessories (13)
  • Filters (5)
  • Batteries & Power Supply (1)
  • Remotes & Accessories (1)
  • Bags & Cases (2)
  • Viewfinder Accessories (2)
  • Bounce & Diffusers (1)
  • Flash & Lighting (1)

About Canon EOS-30D SLR Camera Body w/Can EF 28-135mm IS Lens

Canon's EOS 30D brings proven EOS technology to a new level, giving photographers an unbeatable photographic experience. The EOS 30D incorporates a host of new features with Canon's highly acclaimed 8.2 megapixel CMOS sensor and DIGIC II Image Processor. The EOS 30D includes enhanced operational features such as a 2.5 inch LCD monitor, true spot metering, a durable new shutter mechanism and Canon's Picture Style feature, all in a sturdy, magnesium-clad body. With all these new features the EOS 30D is truly perfection, refined.

Canon's large-area CMOS (complementary metal oxide semiconductor) sensor captures images with exceptional clarity and tonal range, and offers the most pixels in its class. This APS-C size sensor (22.5 x 15.0mm) has the same 3:2 ratio as film cameras, enabling an effective angle of view that is 1.6x the normal EF Lens focal length. The EOS 30D has an extensive ISO range (from 100 to 1600 plus ISO 3200 in extended mode), which is selectable in 1/3-stop increments.

With the DIGIC II Image Processor on board, photographers can expect natural color reproduction, precise white balance in any number of lighting situations and unparalleled clarity. The DIGIC II Image Processor employs sophisticated signal processing algorithms and works at greater speeds, all while consuming less energy. The entire processing chip - not just the software that drives it - is dedicated for use in a digital still camera.

The EOS 30D is one of the fastest cameras Canon has ever produced. Incorporating the fast operation of the EOS 20D, the 30D allows users to specify high-speed 5 fps or a new low-speed 3 fps continuous shooting for more controlled shooting and/or to save space on the CF card. Whether it's the 0.15 second startup time, the high-speed mirror drive, the nearly instant 65 millisecond shutter release lag time or the predictive AF focusing at speeds up to 5.0 frames per second, the EOS 30D will amaze and delight photographers who don't want to wait for their camera when they're ready to shoot.

The EOS 30D has a brilliant 2.5 inch LCD monitor with approximately 230,000 pixels. Adopted from Canon's professional EOS SLRs, this monitor not only displays more information, it can also be viewed at a greater angle (170-degree) than many conventional LCD monitors. The full-featured shot information screen not only provides an RGB histogram, it can display the AF frame used. Whether changing color parameters, setting up custom functions, organizing folders or setting white balance, the EOS 30D helps photographers get to their information quickly, so they never miss a shot.

Canon EOS-30D SLR Camera Body w/Can EF 28-135mm IS Lens Features

  • Exceptional digital SLR with exclusive 8.2 Megapixel Canon CMOS Sensor and DIGIC II Image Processor
  • User-selectable high-speed and low-speed continuous shooting at 5 fps or 3 fps - up to 30 (JPEG), 11 (RAW) or 9 (RAW+JPEG) consecutive frames when set at 5 fps and fast 0.15-second startup time
  • Large 2.5 inch LCD monitor that can be viewed at extreme angles up to 170°
  • New and improved features: Picture Style for superior command of in-camera color, contrast and sharpness, spot metering and shutter durability of approximately 100,000 cycles
  • Impressive 9-point Wide-area AF with a dual precision sensor at the center
  • One-touch direct printing and improved PictBridge features, including more custom print effects and printing with shooting information
  • Fully compatible with all EF and EF-S Lenses and a wide range of EOS System accessories

What's in the box:

  • Canon EOS-30D Digital SLR Camera Body
  • Zoom W/A-Telephoto EF 28-135mm f/3.5-5.6 IS Image Stabilizer USM AF Lens
  • 72mm Snap-On Lens Cap
  • Rear Lens Cap
  • BP-511A Lithium-Ion Battery (7.4v 1390mAh)
  • CG-580 Portable Battery Charger
  • CR2016 Lithium Battery (for Date/Time Functions)
  • IFC-400PCU USB Interface Cable
  • VC-100 Video Cable
  • Eyecup Eb
  • Neck Strap
  • R-F-3 Camera Cover
  • EOS Digital Solutions Software CD-ROM
  • User's Guide
  • Canon 1 year parts and labor warranty
