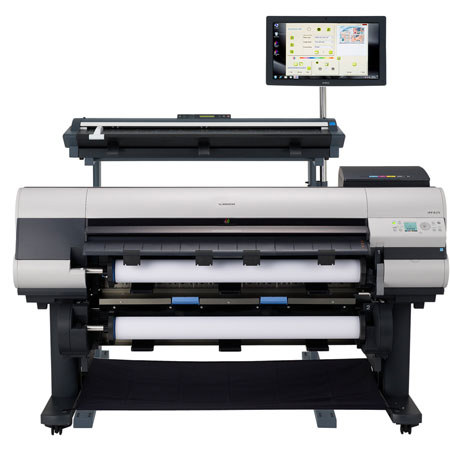

Canon imagePROGRAF iPF825 MFP 44" 5-Color Dual Roll Printer, 2400x1200dpi (Max) Resolution, 384MB RAM, USB 2.0/10/100 Base-T/TX - Print, Scan


Original Price: $12,131.20 Free Item Value: -$1,230.25

Free Shipping

See all shipping options

On Backorder - This item is currently back-ordered by the manunufacturer. Although we have no estimated time of arrival of this item, you can order it now and it will ship as soon it arrives. Your card will only be charged once item is shipped. learn more

Kit Savings

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

Canon iPF825: Picture 1 regular $10,900.95

About Canon iPF825

This Canon iPF825 Bundle comes with $1230.25 worth of free accessories including a Canon imagePROGRAF MFP Installation & 1-Yr Scan Warranty (Printers 36" & Under) and Shipping is free! .

A 44" wide powerhouse scan-to-copy/file/e-mail system designed to enhance productivity for medium to large workgroups, with dual media rolls and high speed throughput, the Canon imagePROGRAF iPF825 MFP is a complete production imaging solution. Designed for AEC, CAD and GIS technical documents and general use, the iPF825 MFP provides a fast and effective system for copying, archiving and distributing maps, drawings, renderings, site and facilities management plans, design and layout proofs, posters and more.

With true 600 dpi optical resolution, CIS scanning technology for incredible line definition and accuracy and room for documents up to 41" wide (40" image width), the iPF825 MFP is a versatile imaging solution. And with dynamic preview and a large, simple-to-use touch-screen interface, one-click scanning/copying has never been easier. It comes standard with the ability to scan to PDF, JPEG and TIFF file formats.

Equipped with dual media rolls, the iPF825 MFP eliminates the cause of many bottlenecks in busy printing environments. Automatically switch between different media type, sizes or use two rolls of the same paper for printing of large, consecutive runs. With a 160 GB hard drive, excellent media handling and on-board support for HP-GL/2 and HP RTL files, the iPF825 MFP is a complete and easy-to-use imaging solution for any professional with a need for intricately detailed full-color renderings, CAD drawings, GIS maps and other large-format output.

Summary of Customer Reviews

Customers most agreed on the following attributes:
Difficult to use (3)

Canon iPF825 Features

  • Complete Scan-to-Copy / File / E-mail Solution: This complete workflow solution includes large format scanner, printer, reprographic stand, computer, SmartWorks MFP Software and large touch-screen monitor
  • High Speed Scanning: Whether its construction plans, drawings, maps or business presentations, speed is critical when deadlines are tight. A powerful production tool for many environments, now you can scan up to ten inches per second at 200 dpi for monochrome & up to 1.67 inches per second for color
  • High Precision Scanning: The imagePROGRAF iPF MFP uses CIS (Contact Image Scanning) technology to capture the finest image detail in technical documents, maps, sketches, hand-annotated drawings and complex schematics
  • Media Handling: The imagePROGRAF MFP provides room to scan plain paper documents up to 41" wide (40" image width), max thickness 0.012 inches (0.3 mm) by any length
  • SmartWorks MFP Software: With a simple to use interface and unique scan-it-once ability, SmartWorks MFP allows for efficient batch scanning and ensures that top quality scanned images are produced in the least amount of time. Scan to PDF, TIFF and JPEG file formats
  • Productivity: Print Longer Without Interruption: Choose extra large 700ml ink tanks for even greater productivity. For long print runs, a high-capacity media basket comes standard with the iPF815. Add the optional high-capacity stacker for even greater print yields when printing on plain paper
  • High-Speed Printing: L-COA processor: Output two D-size (24 x 36") drawings per minute or print a full color, 2400x1200 dpi high resolution A0 size image with full graphic coverage on heavyweight coated paper in only three minutes
  • Precision Printing: High-Density Print Head: Engineered for advanced image production, the iPF815 boasts Canon's latest print-head technology to lay down ink with unprecedented speed and accuracy
  • 160GB Hard Drive: A built-in 160GB hard drive within the printer increases productivity by relieving workload from the host PC, while providing a large capacity for print job data storage and retrieval
  • Accounting Manager: The Accounting Manager serves as a powerful feature, used for accurate management of printing costs and other information that is increasingly important in today's economic environment
  • Economy Print Mode: Reduce total ink consumption by utilizing the Economy Print Mode for producing draft prints on select media. This feature regulates the use of all inks to produce quick check plots while minimizing the cost per print
  • Reactive Ink System: Canon's breakthrough 5-color dye/pigment Reactive Ink technology utilizes four highly colorfast dye inks for producing bold, expressive color, plus two channels of matte black ink for printing precise lines, smooth curves and small text on technical and office documents
  • HDI Driver: With the Canon HDI Driver for AutoCAD application, the driver creates a vector graphical representation of the printed data. Here, points are defined and a curved line is calculated mathematically in order to achieve precision
  • Canon Printer Driver: This Win & Mac drivers incorporate simplified page setup options, one-touch borderless printing, expanded color settings and much more into a printer driver that is intuitive and easy-to-operate while still giving even the most advanced users the tools needed to stay productive
  • PosterArtist Lite: Users simply follow the program's four (4) easy steps to create posters that can be used in applications such as office presentation, trade shows, retail signage and much, much more

Canon iPF825 Specifications

Item Includes
5 x Ink Tanks (C/M/Y/BK/MBK) - Sample Roll Heavyweight Coated Paper - Ethernet Card (Built-in) - User Manual CD - Quick Start Guide - Reference Guide - Menu Map - Power Cord - Registration Card - PosterArtist Lite - User Software CD
Printing Method
5-Color 44-inch Dual Roll Printer
Number of Nozzles
Total: 15,360
MBK: 5,120 nozzles
C, M, Y, BK: 2,560 nozzles each
Nozzle Pitch: 1,200 dpi
Non-firing nozzle detection and compensation
Print Resolution (Up to)
2,400 x 1,200 dpi (Max)
Ink Compatibility
Dye/Pigment Reactive Ink
Ink Capacity
330ml per color (Optional 700ml)
Ink Droplet Size
4 picoliter
Color Set
Dye: Cyan, Magenta, Yellow, Black
Pigment: Matte Black
32 GB dedicated file processing memory, 384MB RAM
Hard Drive
Paper Sizes
Media Width: Cut Sheet: 8" - 44"
Roll Size
10" - 44"
0.07 - 0.8mm (2.8 - 31.4mil)
Media Thickness
Front Loading Manual Feed: 0.07 - 0.8mm (2.8 - 31.4mil)
Maximum Roll Print Length
59 Feet (18 meters)
Maximum Media Roll Diameter
Automatic Sheet Feeder
Front Loading Roll Feed: One Roll, front output
Front Loading Manual Feed: One sheet, front output
GARO (Canon Proprietary), HP-GL/2, HP RTL
Scanner Type
Contact Image Sensor (CIS) technology
Scanning Element
Scan Accuracy: +/- 0.1%
Scanner Speed
10.1 ips (monochrome)
1.67 ips (color)
Max. Resolutions
Standard Resolution: 600dpi
Adjustable from 100 dpi to 9,600 dpi
Max. Document Size
Width: 41 inch document width (40 inch image width)
Length: 96 inches
Thickness: 0.012in (0.3mm)
OS Compatibility
Printer Driver Operating System:
Windows XP/Server 2003/Server 2008/Vista/7 (32/64bit), Macintosh OSX 10.3.9-10.6 (32 bit), OS X 10.5-10.6 (64 bit)
Standard Interface
USB 2.0 High-Speed
Operating System
Windows 7 Professional
Monitor Type
Flat Panel Touch-Screen Display
Mfr #

Canon iPF825 Reviews

Reviewed by 4 customers


Can't get it to rotate or print pdf


from Undisclosed

Title says it all. Hard to set odd print sizes so they rotate properly. Won't print any PDF's at all. Difficult to deal with when you cant control what form of input you are getting and stupid since pdf is supposed to be a standard file type.


Good quality, terrible user-friendability


from Undisclosed

First, I advise to everybody who has this plotter - do not upgrade your firmware! Firmware 1.12 adds more headache than features - plotter is turning itself off every 8 or 12 hours, media types disappeared from the list, etc. 1. Print quality is good. It is better than it used to be on our old OCE TSC500. 2. Performance is poor - plotter is simply slow! especially, when it decides to perform a maintenance and you need an urgent print - good luck on that! 3. Loading the paper is very awkward. you need to open covers, remove the shaft, make sure your roll is oriented correctly. Then, plotter wont take it for some reason and you have to start over. 4. My biggest problem now is lack of media types after upgrading firmware to version 1.12. My CAD clear film is gone as an option now and printing transparencies is a nightmare now. Canon told me to install Media Configuration Tool to manage the media, but it is incompatible with Windows 8.1 x64! No way I'm going to downgrade my system just because somebody screwed up plotter firmware! 5. Print catcher is a ridiculous design. You have to keep it open so it can catch the paper, but it might be a problem for the small office where space is limited. As a summary, I wouldn't recommend this printer to anyone and I wish I could find more reviews for it when we bought it otherwise I'd never buy it.


Good Plotter


from Florida

We use the ipf825 on an almost daily basis. It is quick, simple to use and produces nice quality images. The paper is easy to load and ink cartridges are easy to swap out. We are perfectly happy with this plotter.

(18 of 24 customers found this review helpful)




from Undisclosed

Let me start off by saying that this plotter does produce some very nice prints in color or monochrome, but it is extremely difficult to use and manipulate. I’ve had numerous problems, many scrapped prints, and spent many hours trying to get this machine to work the way I and the rest of my office want it to. Some specific examples: • At our company we primarily use either 30� or 36� paper, so we loaded one of each into our plotter. This led to a problem in that, when one roll runs out, the plotter started using the other roll without any notification. To make matters worse, the last bit of paper would catch on the roll, causing it to look like there was still sufficient paper. We finally found the setting that affects this. In order to STOP this automatic switching of paper, we had to ENABLE the setting “Automatically switch paper sources�. I don’t think I need to explain why that is confusing. • Both the plotter and the Status Monitor frequently report one or both rolls as being “Empty� when they clearly are not. We use 500’ rolls, and manually input this distance every time we load a new one, so why it’s prematurely detecting it as empty I have no idea. • Switching the orientation from Portrait to Landscape seems to have no effect. Checking the box “Rotate Page 90 degrees (Conserve Paper)� gave us the result we were looking for, but it would be helpful for the orientation settings to work as typically expected, or to indicate why they are not working this way. I’m sure it’s a simple settings change, but finding it can be difficult and time-consuming. • When paper gets jammed, the plotter does nothing to tell you so. The screen indicates a hardware malfunction, and asks that you power it off and back on again. Naturally, this is not going to clear a paper jam. • The print catcher that came with our plotter is useless. It collects prints into a messy pile which will quickly overflow onto the floor if someone isn’t there to manually attend to it. At times we need to plot hundreds of sheets, and this means someone has to sit there for hours collecting and organizing them. The thing is also very large and bulky, and in our particular situation it gets in the way and presents a tripping hazard. I think this plotter could be very capable and effective, but it is too difficult to reach the intended result. We have spent inordinate amounts of time and materials fighting with this thing, and it’s left my coworkers and myself very frustrated and unsatisfied.
