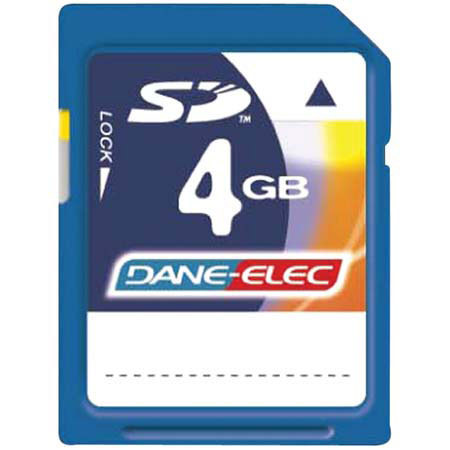

Dane-Elec 4 GB Secure Digital (SDHC) Memory Card
Mfr. Part: DASD4096R SKU: IDESD4GB
enlarge image
|
|
 |
|
|
| Similar items available at a savings |
 |
Kingston Technology 4 GB Class 2 Secure Digital High Capacity (SDHC) Memory Card
Price: $9.95
| Info
| Buy
|
Kingston Technology 4 GB Class 4 Secure Digital High Capacity (SDHC) Memory Card.
Price: $9.95
| Info
| Buy
|
|
|
Description
The physical characteristics of these cards are their weight, 0.07 ounces, their size, one sixth of a credit card (32 mm x 24 mm x 2.1 mm) particularly lends them to communicating mobile markets: personal assistants/PDA, MP3 drivers, Mobile phones, also to digital equipment such as cameras and videos. DANE-ELEC'sSecure Digital range comprises cards with 128, 256, 512 MB, 1GB, 2GB, and 4GB of memory capacity.
Their rate of data-transfer varies between 2 and 4 MB per second. Compared to the Multi Media Card composed of 7 connexion pins, the Secure Digital card is composed of 9 connexion pins. This new organisation allows faster transfer of data while the memory card is on SD mode.
On the other hand, the Secure Digital has an integrated security mechanism, the CPRM Content Protection for Recorder Media which insures a high degree of protection and file-encryption. It controls the reading, copying, transfer or erase functions. In this way it becomes possible for the user to forbid or authorize the copy or to offer a reproduction right.
|
Features
 |
Interface comprising 9 pins (clock, Command, 4 x data, 3 x lowerlines) |
|
Supports SD and SDI communication protocols |
|
Non volatile memory |
|
Low consumption |
|
Complies with "Secure Digital Card Association" standards |
|
100 % compatible with SD and MMC applications |
|
Has a protection switch in write mode |
Specifications
| Type Of Media | Secure Digital (SD) Card |
| Reliability |
| MTBF (mean time between failures) | 1,000,000 hours |
| Number of insertions | 10,000 minimum |
| Data retention | 100,000 hours |
| Endurance | 1,000,000 cycles (read/write) |
| Physical Charactaristics |
| Width/Thickness/Height | 24mm / 2.1mm / 32m |
| Weight | 2 g |
| Specifications |
| Capacity | 4 GB |
| System Performance |
| Data Transfer Rate: Read | Maximum 3MB/sec in read/write mode (4 data lines) Clock speed: 25Mhz max. (data transfer) |
| Power Supply |
| Voltage | SD: 2.0-3.6V
SDLV (low voltage 1.6-3.6V) |
| Power Consumption: Standby | Consumption depends on card's programming (10045 mA max) see detailed specification |
| Environment |
| ECC Operation | Yes |
| Operating Temperature | 0 to 55 °C |
| Storage Temperature | 20 to 65 °C |
| Tolerated Humidity | 8% to 95% |
| Tolerated Vibrations | 15Gs "peak-to-peak" |
| Tolerated Impacts | 1KG |
| | |
|
|
|
|
|
|
|
|
