Epson Expression 11000XL Graphic Arts Scanner, 2400 dpi Optical Resolution, 12.2x17.2" Max Scan Area, Hi-Speed USB 2.0

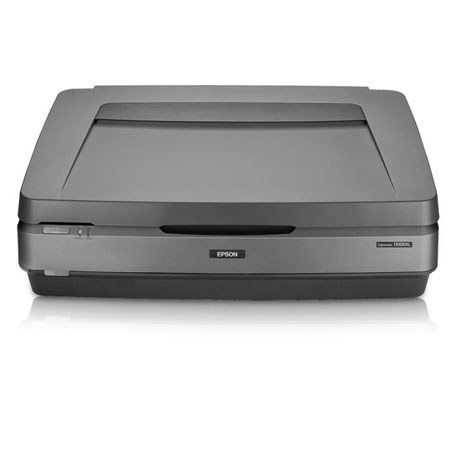

About Epson 11000XL

The Epson Expression 11000XL Graphics Arts scanner delivers versatile large format scanning up to 12.2x17.2". With 2400 dpi resolution plus a 3.8 Dmax and 48-bit color, the Epson Expression 11000XL offers everything required for professional-quality tabloid size scanning.

A reliable performer that's sure to increase productivity, this hard-working scanner features Epson's exclusive ColorTrue II imaging system, which combines superior image processing, a xenon lamp and Epson Color MatrixCCD technology for enhanced colors and pinpoint registration. Its 3.8 Dmax delivers a broad dynamic range with excellent shadow detail. An AutoFocus optics system, when activated, adjusts the focus for capturing clear, precise images every time.

Epson 11000XL Features

  • Professional large-format scanning - accommodates reflective media up to 12.2x17.2"
  • Extraordinary image quality - with 2400 x 4800 dpi resolution and Micro Step Drive technology, gives brilliant clarity and detail
  • Smooth gradations with 48-bit color - captures over 4 trillion colors and 4,096 shades of gray
  • Enhanced color with ColorTrue II Imaging - combines superior image processing, a fast warm-up color spectrum Xenon lamp and Epson Matrix CCD technology for bold, vibrant scans
  • One-touch color restoration - with Epson's exclusive Easy Photo Fix technology, restores faded color photos and negatives in a snap and provides automatic dust removal and grain reduction for film scanning
  • Batch scanning for increased productivity - Scans multiple images at one time and saves files to a PC; scans up to forty-eight 35 mm negatives, thirty 35 mm slides, eight 4" x 5" transparencies or six medium-format transparencies (with optional transparency unit)

Epson 11000XL Specifications

Scanner Type
Flatbed color image scanner
Optical Sensor
Color Epson MatrixCCD line sensor
Optical Resolution
2400 dpi
Hardware Resolution
2400 x 4800 dpi with Micro Step Drive technology
Maximum Resolution
12,800 x 12,800 dpi
Effective Pixels
87,840 pixels / line (2400 dpi)
Color Bit Depth
48-bit internal / external1
Grayscale Bit Depth
16-bit internal / external1
Optical Density
3.8 Dmax
Maximum Scan Area
12.2" x 17.2"
Light Source
Xenon gas cold cathode fluorescent lamp
Focus Control
AutoFocus optics system (CCD and lens unit)
Scanner Interface
Hi-Speed USB 2.0
Operating Systems
Windows 7
Windows Vista
Windows XP
Windows XP Professional x64 Edition
Mac OS X 10.5.x, 10.6.x, 10.7.x, 10.8.x
MCBF: 100,000 cycles
Operating Temperature
41deg. to 95deg. F (5deg. to 35deg. C)
Operating Humidity: Operating
10% - 80%
Operating Humidity: Storage
10% - 85% (no condensation)
Rated Voltage
AC 100 - 120 V, 220 - 240 V
50 - 60 Hz
Power Consumption:
Without optional unit: 45 W
With optional unit: 55 W
Dimensions (WxDxH)
25.8x18x6.2" / 65.53x45.72x15.74cm
28.7 lbs / 13.01kg
