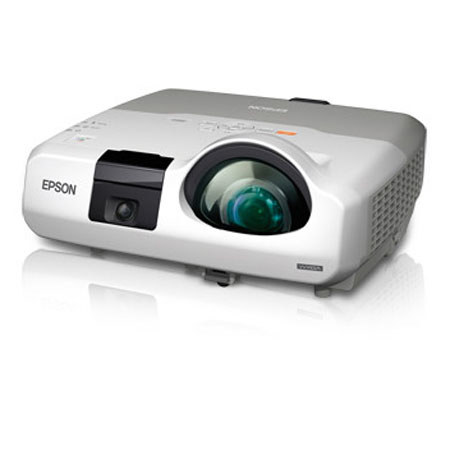

Epson BrightLink 436Wi Interactive WXGA 3LCD Projector, 3000 Lumens, 16:10 Aspect Ratio, 1280x800 WXGA Resolution, 3-Chip Technology

SKU: IESBL436WI MFR: V11H536020
Please note: Although this item is temporarily out of stock, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Add to Wishlist

Protect your investment

About the Epson 436Wi

The high-performance Epson BrightLink 436Wi network-ready, short-throw projector and interactive pen integrate interactive functions into one machine without the constraints or expense of an interactive whiteboard. Share content from many sources (iPads2, tablets, smart phones, document cameras and more), then annotate directly on projected images - no PC required. Two users can write simultaneously with dual pen support. Mount BrightLink 436Wi on a wall or set it on a table or desk. This portable projector can be taken from room to room. Setup is easy with auto calibration and no PC driver to install. The projector features HDMI connectivity, a built-in 16 W speakers and microphone jack.

Epson 436Wi Includes

  • Epson BrightLink 436Wi Interactive WXGA 3LCD Projector
  • Interactive Pen A
  • 16' USB Cable
  • Easy Interactive Software
  • User's Guide CD
  • Rechargeable Batteries and Charger
  • TeamBoard Draw CD
  • Quick Setup Guide
  • 15' Power Cord
  • 6' Computer Cable (VGA)
  • Projector Remote Control
  • Batteries
  • User Manual CD
  • Network Projection Software CD
  • Quick Setup Sheet
  • PrivateLine Support Card
  • Password Protection Sticker
  • Lens Cover
  • Welcome Kit
  • Epson 90 Days Lamp and 2 Years Limited Warranty

Epson 436Wi Features

  • 3x Brighter Colors with Epson: Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors
  • Bright and Colorful: Features 3000 lumens of color brightness (color light output)1 and 3000 lumens of white brightness (white light output)
  • WXGA: 1280 x 800 widescreen resolution
  • Interactive: Make almost any smooth, lightly-colored surface interactive with BrightLink solutions
  • PC-Free Annotation: Annotate without any device at all by using the built-in, PC-free tools
  • Interactive Pens: Annotate and interact with projected images using the two interactive pens. Users can write simultaneously or independently
  • Short-Throw Projector: Can be mounted only 36 inches away from the board and the projected image can get as large as 87" diagonal, with no shadow interference
  • Long-life lamp up to 6000-hour lamp life
  • Flexible connectivity - RJ-45 LAN (with included software) and RS-232 connectivity; HDMI with HDCP support; USB and VGA
  • Convenient network accessibility - display content over the IP network from any networked location
  • Message broadcasting - broadcast announcements or emergency instructions over the network5
  • Epson's advanced networking and monitoring software - EasyMP Monitor and Epson Network Projection software
  • Powerful communication features built in - built-in 16 W speaker, microphone input and audio pass-through; closed-captioning decoder; additional inputs available to add additional speakers
  • Easy Interactive Tools 2.1 - new, easy-to-use interactive toolbar for PC and Mac allows dual users to draw, select, move and resize objects, as well as annotate and save work directly into Powerpoint presentations; install on as many computers as you need with no license restriction

Epson 436Wi Specifications

Projection System Epson 3LCD, 3-chip technology
Projection Method Front / wall mount
Driving Method Poly-silicon TFT Active Matrix
Pixel Number 1,024,000 dots (1280 x 800) x 3
Color Brightness Color Light Output: 3000 lumens
White Brightness White Light Output: 3000 lumens
Interactive Color Brightness Color Light Output: 3000 lumens
Interactive White Brightness White Light Output: 3000 lumens
Aspect Ratio 16:10
Native Resolution 1280 x 800 (WXGA)
Resize 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (SXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA 60-2), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA)
Lamp Type 230 W UHE (E-TORL)
Lamp Life ECO mode: Up to 6000 hours
Normal mode: Up to 4000 hours
Throw Ratio Range 0.48 - 0.65
Size (projected distance) 68" - 113"
Keystone Correction Manual:
Vertical: ±7 degrees
Horizontal: ±5 degrees
Contrast Ratio Up to 3000:1
Color Reproduction 16.77 million colors
Projection Lens Digital zoom / Manual focus
F-number 1.80
Focal Length 6.48 mm
Zoom Ratio Digital zoom 1.0 - 1.35
Display Performance NTSC: 480 lines
PAL: 576 lines
Input Signal NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
Interfaces Computer / component video: D-sub 15 pin x 2
S-video: Mini DIN x 1
Composite video: RCA (Yellow) x 1
Audio in: RCA x 1 (L and R), Mini stereo x 2
USB connector: Type B x 1 (USB display, audio and pen control)
USB connector: Type A x 1 (USB memory/document camera)
HDMI x 1
RJ-45 x 1
Serial: RS-232c x 1
Monitor out: D-sub 15pin x 1
Audio out: Mini stereo x 1
Microphone: Mini stereo x 1
Wireless LAN port: 802.11 b/g/n
Speaker 16 W mono
Power Supply Voltage 100 - 240 V ±10%, 50/60 Hz AC
Operating Temperature 41deg. to 95deg. F (5deg. to 35deg. C)
Power Consumption ECO mode: 254 W
Normal mode: 344 W
Communication on: 6.80 W standby
Communication off: 0.28 W standby
Fan Noise ECO mode: 29 dB
Normal mode: 37 dB
Security Kensington security lock port, padlock and security cable hole, password protect function
Remote Control: Operating Angle Right / Left: ±30 degrees
Upper / Lower: 10 to 70 degrees
Remote Control: Operating Distance 19.7' (6 m)
Interactive Technology Infrared, 940 nm
Interactive Area BrightLink 436Wi:
68" to 113" diagonal (16:10, WXGA) wall mounted
53" to 116" without mount
Interactive Modes Computer interactivity/input: Interactive and Whiteboard modes, Dual user
Interactive Calibration Method Automatic or Manual
Interactive Connectivity USB Type A/B
Interactive: System Compatibility Connection to the computer: USB
Epson Easy Interactive Driver
Windows and Linux: no driver required
Macintosh: Mac OS X 10.3.9, 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.x (Included in the box. Also available for unlimited download at support page)
Easy Interactive Tools Compatibility System compatibility:
Microsoft Windows XP SP2, Windows XP SP3 (Home Edition/Professional), Windows Vista4, Windows Vista SP14, Windows Vista SP24 (All editions except for Starter), Windows 75, Windows 7 SP15 (All editions except for Starter), Windows 8Macintosh OS X 10.4.x, Mac OS X 10.5.x, Mac OS X 10.6.x, Mac OS X 10.7.x, Mac OS X 10.8.x
TeamBoard Draw Compatibility System compatibility:
Windows XP SP3 (32-bit), Windows Vista (32- or 64-bit), Windows 7 (32- or 64-bit), Quicktime player and Flash player installed
Macintosh Intel Mac OS X 10.5x or later
Type of Interactive Input Device Digital pen (one included)
Multiple Pen Support Yes
Interactive Pen Functions Mouse functions (left and right click), Electronic pen, LED battery status indicator
Interactive Pen Power AAA batteries, rechargeable
Compatible Pen Battery Types SANYO eneloop(HR-3UTG / HR-3UTGA), Manganese dry cell, alkaline dry cell
Dimensions Interactive Pen: 6.5x0.98" / 16.51x2.48cm
Projector Including feet: 13.6x11.7x6.2" / 34.54x29.71x15.74 cm
Projector Excluding feet: 13.6x10.9x4.1" / 34.54x27.68x10.41 cm
Weight Interactive Pen: 1.2 oz /34.01g
Projector: 9.1 lbs / 4.12 kg
