Epson Chief Ceiling Mount for Home Cinema Projectors, White

Epson
Epson : Picture 1 thumbnail Epson : Picture 2 thumbnail Epson : Picture 3 thumbnail
Top Rated Gear
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Epson : Picture 1 regular

About Epson

The CHF1000 is a white ceiling mount from Chief (RPA) for the Pro Cinema 9100, 9500UB, 9350 and 9700UB. Chief's RPA Elite sets the industry standard for projector mounts with exclusive features that save time on installation and servicing. Bundled with ceiling accessories and a custom interface bracket, the convenient projector mount kit makes it even easier to achieve a simple and sleek installation.

Epson Features

  • Centris Technology: Enables effortless fingertip positioning and self-adjusts to support different projector weights
  • MicroZone Adjustments: Make projector registration fast and precise
  • Q-Lock Quick Release Lever: Provides fast connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
  • Cable Management: Route cables through top of mount without additional accessories
  • All-Points Security: Exclusive steel into locking hardware at all connection points to protect against theft
  • Security Lock: Keyed lock on the mount for extra security

Epson Specifications

Compatibility
Epson Home Cinema 8100, 8500 UB, 8350, 8700 UB
RPA Elite mount: Roll
±3"
RPA Elite mount: Pitch
±20"
RPA Elite mount: Yaw
360 Deg.
RPA Elite mount: Load Capacity
RPA Elite mount: 50 lb / 22.6 kg
Dimensions (W x H x D)
RPA Elite mount: 6.5" x 2.75" x 5.5" / 16.5 x 6.9 x 13.9 cm

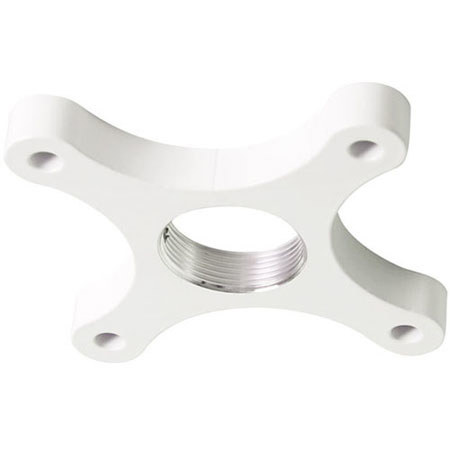

Designer Ceiling Plate: 5" x 5" x .69" (with 1.5" NPT) / 12.7 x 12.7 x 1.75 cm(with 3.8 cm NPT)
6" Extension Column: 6" x 1.5" / 15.2 x 3.81 cm
Custom Interface Bracket: 7.5" x 13" / 19.0 x 33.0 cm
Weight
RPA Elite mount: 4 lb / 1.81 kg
Designer Ceiling Plate: 2 lb / 0.90 kg
6" Extension Column: 2 lb / 0.90 kg
Custom Interface Bracket: 0.1 lb / 0.04 kg
Mfr #
CHF1000
SKU
IESCHF1000

Reviews about this item

Reviewed by 2 customers


5.0

Great mount!!

By

from NYC  -  Practical

This mount is just what i was looking for. its got a quick release to easily dismount the u projector for dusting and other maintenance. it's machined very well and works as such. i'm using it w/an Epson 3020e projector but i think it works w/many others! cheers


5.0

Nice Quality Mount

By

from Grand Rapids, MI

Very high quality product that is well made and well thought out. I like the fact that you can use the ceiling mount flange or just mount the bracket directly to the ceiling to reduce the distance that it hangs down. Also sine the pipe thread is a standard thread you can buy longer extension pipe from any hardware store if you need it to be longer than the 6" pipe that's supplied in the kit.

Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Enrique B  Just got the CHF1000 Ceiling Mount. It doesn't come with screws for the ceiling plate. Any reccomendations? Thanks
MARC R  Hello! We used zinc-plated steel lag bolts. They were 5-1/2" long, but I don't remember if the diameter was 1/4", 5/16" or 3/8". Try Lowe's stock number is 55824 for the 1/4" bolt on their website - that will give you a visual reference. We went straight up into a wood ceiling truss with no issue.
Enrique B  Just got the CHF1000 Ceiling Mount. It doesn't come with screws for the ceiling plate. Any reccomendations? Thanks
MARC R  Hello! We used zinc-plated steel lag bolts. They were 5-1/2" long, but I don't remember if the diameter was 1/4", 5/16" or 3/8". Try Lowe's stock number is 55824 for the 1/4" bolt on their website - that will give you a visual reference. We went straight up into a wood ceiling truss with no issue.
Enrique B  Just got the CHF1000 Ceiling Mount. It doesn't come with screws for the ceiling plate. Any reccomendations? Thanks
MARC R  Hello! We used zinc-plated steel lag bolts. They were 5-1/2" long, but I don't remember if the diameter was 1/4", 5/16" or 3/8". Try Lowe's stock number is 55824 for the 1/4" bolt on their website - that will give you a visual reference. We went straight up into a wood ceiling truss with no issue.
See more questions and answers
