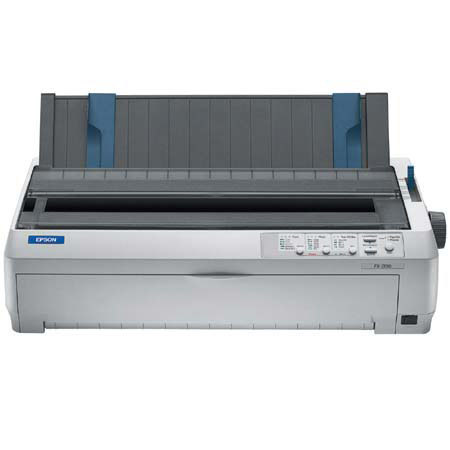

Epson FX-2190N 9-Pin Serial Network Impact Dot Matrix Printer with 10/100 Base-TX Ethernet Interface, 136 Characters, Ultra Speed Draft 680 cps

Epson
SKU: IESFX2190N MFR: C11C526001NT
Epson FX-2190N: Picture 1 thumbnail Epson FX-2190N: Picture 2 thumbnail Epson FX-2190N: Picture 3 thumbnail

Protect Your Investment:

Add a Protection Plan
  • Add a protection plan
  • New Leaf 3 Year Extended Warranty + $44.95
  • New Leaf 3 Year Drops & Spills Extra Protection + $69.95
  • New Leaf 5 Year Drops & Spills Extra Protection + $109.95

Our Price

$655.00
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Epson FX-2190N

The Epson FX-2190N 9-Pin Serial Network Impact Dot Matrix Printer offers the flexibility required for critical daily print requirements. Powerful, yet easy to use, this 9-pin, wide-carriage workhorse boasts an MTBF rating of 20,000 power-on-hours (POH) and speeds of up to 680 cps. An extremely reliable, high-value performer, the Epson FX-2190N provides Parallel, USB and additional connectivity options for seamless integration.

Includes an internal 10/100 Base-TX Ethernet print server. Print Server supports Windows 3.x/95/98/Me/NT/2000/XP, Novell Netware, Linux and UNIX, Macintosh OS 7.x or later/OS X. Novell tested and approved. And, it includes Epson Remote Configuration Manager software for easy printer setup and simple setting selections via most Windows operating systems. Ideal for rugged environments, this robust printer is the perfect drop-in replacement for the Epson FX-1180/1180+/2180 or the Okidata Microline 321/321 Turbo.

The high-speed Epson FX-2190N races through forms up to 7 parts thick and 16.5" wide through four convenient paper paths. Its easy-to-install 12 million character ribbon cartridge boosts productivity and ensures a low cost per page, while its 400 million character print head life offers added dependability. Complete with a newly designed control panel featuring a lock-out mode and other intuitive functions, this versatile product is the ideal solution for demanding print environments. And, as part of a comprehensive three-year warranty, it's backed by superior technical support from the world leader in impact printing.

Epson FX-2190N Features

  • High-speed 9-pin printing: Speeds through multipart forms, reports, labels and more at up to 680 cps
  • Extreme reliability in demanding print environments: Offers an MTBF rating of 20,000 POH (25% duty cycle) and a 400 million character print head life
  • User-friendly setup and operation: Facilitates easy printer configuration using a newly designed control panel or its Windows based Epson Remote Configuration Manager
  • Easy system integration: Provides resident Epson, IBM and Microline printer languages for increased compatibility
  • Includes standard Parallel and USB connections
  • Easy-to-install 12 million character ribbon cartridge: Ensures a lower cost per page and reduces the need for frequent user intervention
  • Advanced paper handling capabilities: Provides four convenient paper paths to accommodate cut sheet paper and continuous forms up to 7 parts thick and 16.5" wide
  • Includes 10/100 Base-TX Ethernet interface for easy networking

Epson FX-2190N Specifications

Printing Method
9-pin, serial impact dot matrix
Print Direction
Bidirectional logic seeking for text and graphics printing; unidirectional text or graphics printing can be selected using software commands
Characters per Line
136 characters @ 10 cpi
Print Speed
Ultra Speed Draft: 680 cps (12 cpi); 566 cps (10 cpi)
High Speed Draft: 559 cps (10 cpi)
Draft: 419 cps (10 cpi)
Near Letter Quality: 104 cps (10 cpi)
Character Sets
13 character tables
13 international character sets
Resident Bitmapped Fonts
Ultra Speed Draft: 10, 12 cpi
High Speed Draft: 10, 12, 15, 17, 20 cpi
Draft: 10, 12, 15, 17, 20 cpi
NLQ (Roman/Sans Serif): 10, 12, 15, 17, 20 cpi, proportional
Bar Code Fonts
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
Formatting
1/6-inch or programmable in 1/432-inch increments
Line Spacing: 6 lines per inch default (8 lpi option available on FX-2190 Okidata Mode only)
Control Panel Functions
Font, pitch, pause, tear off, bin selection, line feed, form feed, load, eject, micro adjust, top-of-form adjustment, panel lockout, reset, menu, default setting selection
Paper Handling Forms
Continuous multipart, original plus 5 carbonless copies, 1 + 6 copies with pull tractor, maximum thickness .018"
Paper Handling Width
Single sheets: 3.9" to 16.5"
Continuous: 4.0" to 16.0"
Cut-sheet feeder: 7.2" to 16.5"
Paper Handling Length
Single sheets: 3.9" to 14.3"
Continuous: 4.0" to 22.0"
Cut-sheet feeder: 10.1" to 14.0"
No. 6 envelopes
6.5" x 3.6"
No. 10 envelopes
9.5" x 4.1"
Labels
2.5" x 0.94" (minimum)
Roll paper
8.5" width
Paper Feed Speed
62 millisecond per 1/6"
5" per second continuous feed
Paper Path
Manual insertion: Front or rear in, top out
Cut sheet feeder: Top in, top out
Tractor: Front, rear or bottom in, top out
Pull push tractor: Front or rear in, top out
Software Drivers
Windows 95, 98, 2000, Me, XP and NT 4.0
Interface
Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
USB 1.1
EpsonNet 10/100Base-TX Ethernet Print Server
Input Buffer
128KB
Printer Language
Epson ESC/P
IBM PPDS
Okidata Microline (FX-2190 Okidata Mode only)
Sound Level
55 dBA (ISO 7779 pattern)
Rated voltage
100 to 240V AC
Input voltage range
90 to 264V
Rated frequency range
50 to 60 Hz
Input frequency range
49.5 to 60.5 Hz
Total print volume
52 million lines (except print head)
MTBF
20,000 POH (25% duty cycle)
Print head life
400 million characters at 14 dots/character
Ribbon life
12 million characters at 14 dots/character
Physical Dimensions
Height 6.1" x Width 23.2" x Depth 13.8"
Weight
21.2 lbs
Warranty
Epson 3 year limited warranty
Mfr #
C11C526001NT
SKU
IESFX2190N
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Palani Y  I am using Foxpro Program for Salary. While taking printout from LQ2180 the paper printing perfect , But now we purchase new Epson LQ2190 printer , in that while i am printing time paper jumping 2 inches for each page. so please help me , give me solution?
Andrew R  Specific issues like this would be best handled by the manufacturer's tech support.
