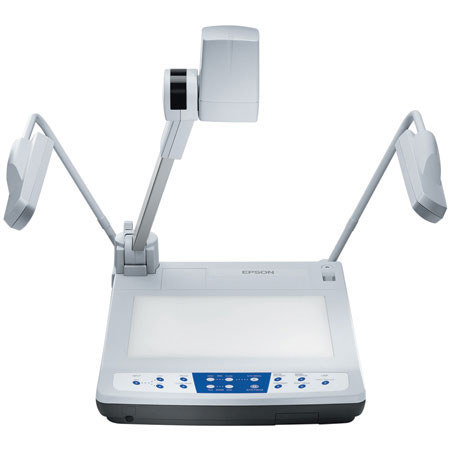

Epson ELPDC05 High Resolution Document Imager, with 18x Optical Zoom and 1/3" CCD Image Sensor
Mfr. Part: V12H162020 SKU: IESHRDI
enlarge image
|
|
 |
|
|
|
Item Includes
Epson ELPDC05 High Resolution Document Imager - Remote Control - 2 AAA Batteries - Power Cord - RGB Video Cable - RCA Video Cable - S-Video Cable - Epson 2-Year Warranty on Imager - Epson 90-day Bulb Warranty
|
Description
Deliver and demonstrate every detail with great precision! When it comes to sharing intricate blueprints, charts, or 3-D objects with a room full of students or executives, the Epson ELPDC05 high-resolution document imager clearly provides an apt solution. Eliminating the need to prepare overhead transparencies or gather audience members around a crowded demonstration table, this powerful accessory is perfect for the most demanding imaging applications.
With XGA resolution, it is the ideal way to display anything with clear-cut clarity and precision. Its built-in base light provides optimum image quality for transparencies, slides, negatives, and X-rays, while a live camera with optical and digital magnification enables users to zoom-in up to 35 times the original size. Special functions such as Clear Screen mode, white balance and gamma selection are also available for enhancing every detail.
Compatible with a full line of Epson PowerLite projectors, the Epson ELPDC05 joins Epson's family of high-performance accessories that make presentations easier than ever. The unit's RGB function allows for seamless switching between different sources. And, there's even a wireless remote control. Epson's innovative push-button feature makes it easy to rotate and capture images. These can be uploaded to a PC via Image Mate so that they can be retrieved later, distributed, and/or added to another presentation.
Whether used in the classroom, courtroom, or board room, the versatile Epson ELPDC05 is the perfect complement to any presentation system. |
Features
 |
XGA resolution for incredible clarity |
|
1/3" 850,000 pixel CCD for capturing fine details in images, text and 3-D objects |
|
18x optical zoom for capturing minute features |
|
2x digital magnification (with live camera), which works together with the optical zoom to enlarge images up to 35 times |
|
Built-in base light for optimum image quality for transparencies, negatives, slides, and X-rays |
|
Motion at 20 frames per second |
|
Built-in white balance for enhancing contrast |
|
Gamma selection for low-light situations |
|
Clear Screen/Image mode to eliminate random noise |
|
Color and black-and-white selection for X-rays and dark blueprint images |
|
Built-in image rotation (90, 180 and 270 degrees) |
|
RGB switching function for seamless transitions between two applications |
|
Built-in RS-232C interface for communication with a remote control system |
|
Easy-to-use wireless remote control and front panel operation |
|
On-screen display menu (accessed via the included mouse) for easy control |
|
Arrow pointer to guide audience members during critical presentations |
|
Image Mate software to rotate and save images onto a PC (requires Windows 98, ME, or XP and a USB connection) |
|
Eight picture memory presets |
|
One-touch freeze function to stabilize motion on the screen and display it as a still image |
|
Tilting camera head so images can be captured both on and off the stage |
|
Negative/positive conversion that's ideal for viewing film photography |
|
Built-in scrolling for more extensive image coverage |
|
Convenient handle and compact design so it is easy to take the document imager to your next presentation |
Specifications
| Lens | F/2.8, f= 4.7-84.6 mm |
| Shooting Area | Max 13.7" x 10.2"
Min 1.0" x 0.8" |
| Zooming | Powered zoom (with double speed function) |
| Focus | Auto/manual |
| Iris | Auto/manual |
| White Balance | Fully automatic/Push-set/Manual |
| Imaging Element | 1/3" CCD, 1077 x 788 pixels |
| Output Signals | 1024 x 768 (XGA) analog RGB |
| Resolution | Horizontal: 600 TV lines or more
Vertical: 600 TV lines or more |
| Frame Rate | 20 frames per second |
| Lighting Source | 6 W fluorescent lamp x 2, baselight built-in |
| Power Supply Voltage | AC 100 to 120 V +/-10%, 50/60 Hz |
| Power Consumption | 43 W (at 100 to 120 V AC) |
| Dimensions | 27.4" (W) x 21.3" (D) x 21.8" (H) (Unfolded)
15.7" (W) x 21.3" (D) x 7.1" (H) (Folded) |
| Weight | 21.6 lbs |
| Input Terminal | Analog RGB input (15-pin mini D-sub) |
| Control Terminal | RS-232C terminal (9-pin D-sub) |
| Output Terminal | Analog RGB input (15-pin mini D-sub), Composite video output (RCA), S-Video output (4-pin mini DN) |
| Serial Connector | RS-232C (must be a 9-pin D-sub connector) |
| Warranty | Comprehensive two-year warranty
90-day bulb warranty for added dependability |
| | |
|
|
|
|
|
|
|
|
|
|
