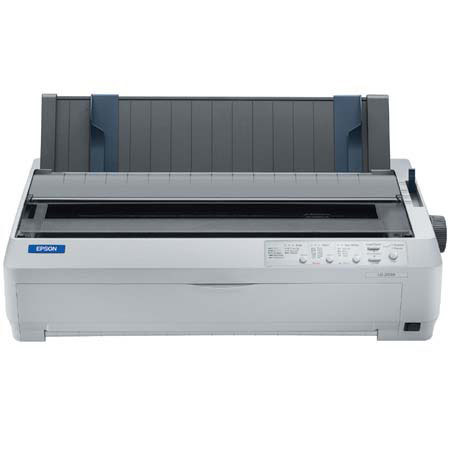

About Epson LQ-2090

The Epson LQ-2090 Impact Dot Matrix Printer delivers precision text and graphics, plus rugged reliability for critical print requirements with powerful 24-pin technology. Offering print speeds of up to 529 cps and easy integration with existing printing formats, this robust performer is sure to increase productivity.

With versatile 5-part forms printing, multiple paper loading options and a durable, long-lasting ribbon, it races through reports, purchase orders, invoices and more. Ideal for point-of-sale, manufacturing and production environments, this workhorse boasts an amazing 20,000 POH MTBF rating and a 400 million character print head life. Its easy-to-use control panel makes changing print settings a snap, while convenient configuration software facilitates simple setup via a PC. It even provides Parallel and USB connections, plus a slot for optional interface cards, including high-speed Ethernet, for greater compatibility with practically any system.

And, with both Epson and IBM& printer languages, it's a great replacement for the Okidata ML-391/491 or the Epson LQ-2080. Ideal for businesses that require high quality, multi-part forms printing, the reliable Epson LQ-2090 printer offers extremely low operational costs compared to other printing technologies, as well as superior performance in comparison to other printers in its class. Designed for use in demanding print environments, this heavy-duty dot matrix printer handles critical business applications with precision and ease.

Epson LQ-2090 Features

  • Powerful 24-pin print head technology: Delivers high quality text and graphics for critical applications
  • Ultra fast print speeds: Speeds through multipart forms, reports, labels and more at up to 529 cps
  • Extreme reliability in demanding print environments: Offers an MTBF rating of 20,000 POH and a 400 million character print head life
  • Facilitates greater productivity with less downtime
  • Long-life ribbon cartridge that's easy to install: 5 million (LQ-590)/8 million (LQ-2090) character ribbon cartridge reduces the need for frequent ribbon changes
  • Ensures the lowest cost per page
  • Easy system integration
  • Includes USB and Parallel connections, plus an additional slot for optional Type B interface cards
  • Epson and IBM printer languages ensure compatibility for new and legacy printing applications
  • Simplified setup and operation: Improved menu navigation allows quick and easy changes to printer settings
  • Remote Configuration Manager facilitates easy setup via a PC

Epson LQ-2090 Specifications

Printing Method
24-pin, serial impact dot matrix
Print Direction
Bidirectional logic seeking for text and graphics printing
Characters per Line
136 characters @ 10 cpi
Print Speed
High Speed Draft: 529 cps (12 cpi); 440 cps (10 cpi); Draft: 330 cps (10 cpi), Letter Quality: 110 cps (10 cpi)
Character Sets
96 ASCII characters; 14 international character sets and 1 legal character set; 128 user-defined characters; Extended IBM style graphic characters; 5 code pages
Resident Bitmapped Fonts
Epson Draft 10, 12, 15 cpi
Epson Roman 10, 12, 15 cpi proportional
Epson San Serif 10, 12, 15 cpi proportional
Epson Courier 10, 12, 15 cpi
Epson Prestige 10, 12, 15 cpi
Epson Script 10 cpi
Epson OCRB 10 cpi
Epson Script C proportional
Epson Orator 10 cpi
Epson Orator S 10 cpi
Bar Code Fonts
EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
Formatting
32 horizontal tabs; line spacing in 1/6" or programmable (minimum 1/360" increments); skip over perforations in lines; page length in lines or inches
Control Panel Functions
Font, pitch, pause, tear off, bin selection, line feed, form feed, load, eject, micro adjust, top-of-form adjustment, panel lockout, reset, menu, default setting selection
Paper Handling Forms
Continuous multipart, original plus 4 carbonless copies, maximum thickness .018"
Paper Handling Width
Single sheets: 3.9" to 16.5"
Continuous: 4.0" to 16.0"
Cut-sheet feeder: 7.2" to 16.5"
Paper Handling Length
Single sheets: 3.9" to 14.3"
Continuous: 4.0" to 22.0"
Cut-sheet feeder: 10.1" to 14.0"
No. 6 envelopes
6.5" x 3.6"
No. 10 envelopes
9.5" x 4.1"
Labels
2.5" x 0.94" (minimum)
Roll paper
8.5" width
Paper Feed Speed
45 millisecond per 1/6"
5" per second continuous feed
Paper Path
Manual insertion: Front or top in, top out
Cut sheet feeder: Top in, top out
Tractor: Front, rear or bottom in, top out
Software Drivers
Windows 95, 98, 2000, Me, XP and NT 4.0
Interface
Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
USB 1.1
Type-B slot for optional interface cards
Input Buffer
128KB
Printer Language
Epson ESC/P2
IBM PPDS
Sound Level
52 dBA
Rated voltage
100 to 240V AC
Input voltage range
90 to 264V
Rated frequency range
50 to 60 Hz
Input frequency range
49.5 to 60.5 Hz
Total print volume
40 million lines (not including printhead)
MTBF
20,000 POH (25% duty cycle)
Print head life
400 million characters
Ribbon life
8 million characters at 48 dots/character
Physical Dimensions
Height 6.3" x Width 23.2" x Depth 13.8"
Weight
21 lbs
Warranty
Epson 3 year limited warranty
Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

Dwaine T  This printer is shared with other computers. Someone else printed a 20 page document 5 times and it tied the printer up for quite some time. I tried to stop it from the computer the printer was connected to but no print jobs showed up. Is there a button or buttons on the printer itself that will stop a print job?
LEON S  unplug the data line, turn the printer off & on, re plug the data line and the buffer should be cleared. you need to "clear the buffer". Leon Saperstein Federal Pipe & Supply Co., Inc. 6464 E. McNichols Rd. Detroit, MI ph #313.366.3000 fax#313.366.6466
