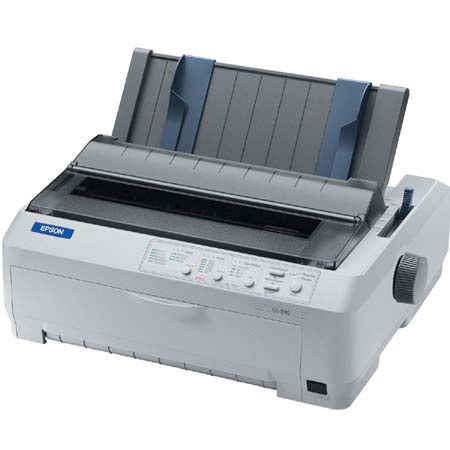

Epson LQ-590 24-Pin Serial Impact Dot Matrix Printer, 80 Characters, High Speed Draft 529 cps
What's Included With This Item:
- Epson LQ-590 24-Pin Serial Impact Dot Matrix Printer
- User Guide
- Drivers (CD)
- Epson 3 Year Limited Warranty
The Epson LQ-590 Serial Impact Dot Matrix Printer delivers precision text and graphics, plus rugged reliability for critical print requirements with powerful 24-pin technology. Offering print speeds of up to 529 cps and easy integration with existing printing formats, this robust performer is sure to increase productivity. With versatile 5-part forms printing, multiple paper loading options and a durable, long-lasting ribbon, it races through reports, purchase orders, invoices and more.
This workhorse boasts an amazing 20,000 POH MTBF rating and a 400 million character print head life. Its easy-to-use control panel makes changing print settings a snap, while convenient configuration software facilitates simple setup via a PC. It even provides Parallel and USB connections, plus a slot for optional interface cards, including high-speed Ethernet, for greater compatibility with practically any system.
And, with both Epson and IBM printer languages, it's a great replacement for the Okidata ML-390/490 or the Epson LQ-570e/870. Ideal for businesses that require high quality, multi-part forms printing, the reliable Epson LQ-590 printer offer extremely low operational costs compared to other printing technologies, as well as superior performance in comparison to other printers in its class. Designed for use in demanding print environments, this heavy-duty dot matrix printer handles critical business applications with precision and ease.
|Printing Method||24-pin, serial impact dot matrix|
|Print Direction||Bidirectional logic seeking for text and graphics printing|
|Characters per Line||80 characters @ 10 cpi|
|Print Speed||High Speed Draft: 529 cps (12 cpi); 440 cps (10 cpi); Draft: 330 cps (10 cpi), Letter Quality: 110 cps (10 cpi)|
|Character Sets||96 ASCII characters; 14 international character sets and 1 legal character set; 128 user-defined characters; Extended IBM style graphic characters; 5 code pages|
|Resident Bitmapped Fonts||Epson Draft 10, 12, 15 cpi
Epson Roman 10, 12, 15 cpi proportional
Epson San Serif 10, 12, 15 cpi proportional
Epson Courier 10, 12, 15 cpi
Epson Prestige 10, 12, 15 cpi
Epson Script 10 cpi
Epson OCRB 10 cpi
Epson Script C proportional
Epson Orator 10 cpi
Epson Orator S 10 cpi
|Bar Code Fonts||EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5|
|Formatting||32 horizontal tabs; line spacing in 1/6" or programmable (minimum 1/360" increments); skip over perforations in lines; page length in lines or inches|
|Control Panel Functions||Font, pitch, pause, tear off, bin selection, line feed, form feed, load, eject, micro adjust, top-of-form adjustment, panel lockout, reset, menu, default setting selection|
|Paper Handling Forms||Continuous multipart, original plus 4 carbonless copies, maximum thickness .018"|
|Paper Handling Width||Single sheets: 3.9" to 10.1"
Continuous: 4.0" to 10.0"
Cut-sheet feeder: 7.2" to 8.5"
|Paper Handling Length||Single sheets: 3.9" to 14.3"
Continuous: 4.0" to 22.0"
Cut-sheet feeder: 10.1" to 14.0"
|No. 6 envelopes||6.5" x 3.6"|
|No. 10 envelopes||9.5" x 4.1"|
|Labels||2.5" x 0.94" (minimum)|
|Roll paper||8.5" width|
|Paper Feed Speed||45 millisecond per 1/6"
5" per second continuous feed
|Paper Path||Manual insertion: Front or top in, top out
Cut sheet feeder: Top in, top out
Tractor: Front, rear or bottom in, top out
|Software Drivers||Windows 95, 98, 2000, Me, XP and NT 4.0|
|Interface||Bidirectional Parallel (IEEE 1284 Nibble Mode supported)
Type-B slot for optional interface cards
|Printer Language||Epson ESC/P2
|Sound Level||52 dBA|
|Input voltage range||103.5 to 132V|
|Rated frequency range||50 to 60 Hz|
|Input frequency range||49.5 to 60.5 Hz|
|Total print volume||40 million lines (not including printhead)|
|MTBF||20,000 POH (25% duty cycle)|
|Print head life||400 million characters|
|Ribbon life||5 million characters at 48 dots/character|
|Physical Dimensions||Height 6.3" x Width 16.3" x Depth 13.8"|
|Warranty||Epson 3 year limited warranty|
