| Projector |
Projection System: High-aperture Epson 3LCD, 3-chip technology Projection Method: Front / ceiling mount, table Driving Method: EPSON Poly-silicon TFT Active Matrix Pixel Number: 786,432 x 3LCDs Color Brightness (Color Light Output): 4500 lumens White Brightness (White Light Output): 4500 lumens Aspect Ratio: Native 4:3 Native Resolution: 1024 x 768 (XGA) Brightness Uniformity: Typical: 89% Pixel Arrangement: Cross stripe Throw Ratio Range: 1.38 - 2.24 |
| Lamp |
Lamp Type: 245 W UHE Lamp Life: ECO Mode, Up to 4000 hours / Normal Mode, Up to 2500 hours |
| Size (projected distance) |
30" - 300" |
| Keystone Correction |
Horizontal: ±30 degrees Vertical: ±30 degrees |
| Contrast Ratio |
Normal, Dynamic Mode: Up to 3000:1 |
| Color Reproduction |
16.77 million colors |
| Projection Lens |
Type: Manual zoom / focus F-number: 1.51 1.99 Focal Length: 18.2mm - 29.2mm Zoom Ratio: Optical |
| Video Standards |
Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM HDMI: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p |
| Video Processing |
3D Y/C separation, 3D noise reduction, mosquito noise reduction DCDi - Directional Correlational Deinterlacing Motion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection) Closed captioning |
| Network Connection |
Wired, Integrated 10/100 Mbps |
| Network Control Management |
EasyMP Monitor AMX Duet and Device Discovery Crestron Integrated Partner and RoomView PJLink |

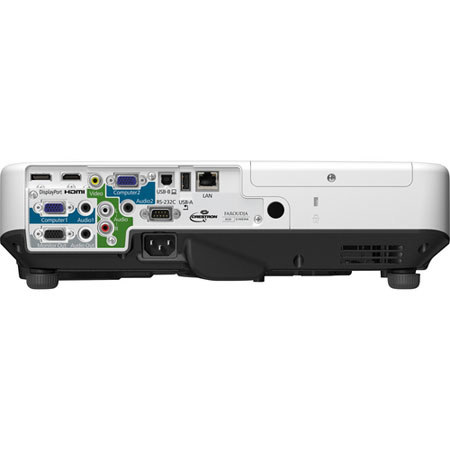

| Interface |
DisplayPort HDMI Computer: D-sub 15 pin x 2 Video: RCA Wired Network: RJ-45 Serial: RS-232c Monitor-Out: D-sub 15 pin USB (Type A): For PC-free and document camera USB (Type B): For computer |
| Speaker |
10 W monaural |
| Operating Temperature |
41° to 95° F (5° to 35° C) |
| Power Supply Voltage |
100 - 240 V ±10%, 50/60 Hz AC |
| Power Consumption |
Normal mode: 353 W Network on: 3.8 W standby Network off: 0.5 W standby |
| Fan Noise |
ECO mode: 29 dB Normal mode: 37 dB |
| Security |
Kensington-style lock provision Anchor (metal) bar for security lock or cable |
| Remote Control |
Features: Color mode, brightness, contrast, tint, color saturation, sharpness, input signal, sync, source search, Split Screen Operating Angle Front Upper / Lower: 0 to +16 degrees Operating Distance: 39" - 138" |
| Dimensions WxDxH |
14.8 x 10.7 x 3.6" / 376 x 272 x 91mm |
| Weight |
8.5 lbs / 3.9kg |
