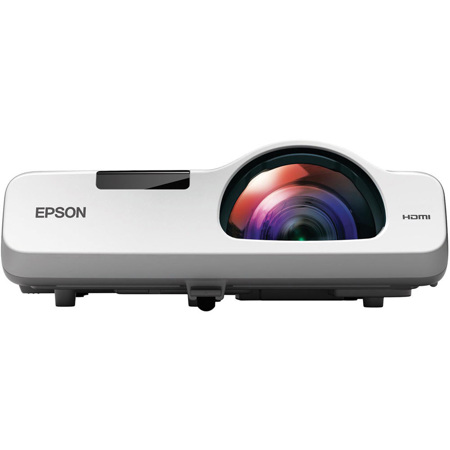

Epson PowerLite 520 XGA Short Throw 3LCD Projector, 2700 Lumens, 4:3 Aspect Ratio, 16W Speaker, Up to 10000 Hours ECO Mode Lamp Life, HDMI/VGA/RCA/USB

SKU: IESPL520XGA

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Epson PowerLite 520 Specifications

  • Projection System

    3LCD, 3-chip technology

  • Projection Method

    Front / rear / ceiling mount

  • Driving Method

    Poly-silicon TFT Active Matrix

  • Pixel Number

    786,432 dots (1024 x 768) x 3

  • Color Brightness (Color Light Output)

    2700 lumens

  • White Brightness (White Light Output)

    2700 lumens

  • Aspect Ratio

    4:3

  • Native Resolution

    1024 x 768 (XGA)

  • Resize

    640 x 480 (VGA), 800 x 600 (SVGA), 1152 x 864 (SXGA), 1280 x 800 (WXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1280 x 768 (WXGA 60-1), 1360 x 768 (WXGA 60-2), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA)

  • Lamp Type

    215 W UHE

  • Lamp Life

    ECO mode: Up to 10,000 hours
    Normal mode: Up to 5000 hours

  • Throw Ratio Range

    0.54 - 0.74

  • Size (projected distance)

    50 to 108" / 1270 to 2743.21mm

  • Keystone Correction

    Vertical: +/- 15 degrees
    Horizontal: +/- 15 degrees

  • Mac Connectivity

    Projector is Mac compatible via USB, DVI to HDMI or VGA adapter (not included)

  • Contrast Ratio

    Up to 16000:1

  • Color Reproduction

    Up to 1.07 billion colors

  • Lens Type

    No optical zoom / Manual focus

  • Lens F-number

    1.60

  • Lens Focal Length

    6.4mm / 0.25"

  • Lens Zoom Ratio

    Digital zoom 1.0 - 1.35

  • Display Performance

    NTSC: 480 line
    PAL: 576 line

  • Input Signal

    NTSC / NTSC4.43 / PAL / M-PAL /N-PAL / PAL60 / SECAM

  • Interfaces

    Computer / Component video: D-sub 15 pin x 2
    S-video: Mini DIN x 1
    Composite video: RCA (Yellow) x
    Audio in: RCA x 1 (L and R), mini stereo x 2
    USB connector: Type B x 1 (USB display, audio and mouse control)
    USB connector: Type A x 1 (USB memory / document camera)
    HDMI x 1
    RJ-45 x 1
    Serial: RS-232c x 1
    Monitor out: D-sub 15 pin x 1
    Audio out: Mini stereo x 1
    Microphone: Mini stereo x 1
    Wireless LAN port: 802.11 b/g/n (optional - module sold separately)

  • Speaker

    16W (mono)

  • Operating Temperature

    41 to 95deg. F / 5 to 35deg. C

  • Power Supply Voltage

    100 - 240 V, +/-10%, 50/60 Hz

  • Power Consumption

    ECO mode: 229 W
    Normal mode: 293 W
    Communication on: 1.9 W standby
    Communication off: 0.22 W standby

  • Fan Noise

    ECO mode: 28 dB
    Normal mode: 35 dB

  • Security

    Kensington-style lock provision
    Padlock and security cable hole
    Password protection function

  • Operating Angle

    Upper / Lower: 10 to +/- 70 degrees
    Right / Left: +/- 30 degrees

  • Operating Distance

    19.7' / 6.00m

  • Dimensions (W x D x H)

    Including feet: 13.5 x 12.7 x 5.2" / 342.90 x 322.58 x 132.08mm
    Excluding feet: 13.5 x 12.7 x 3.7" / 342.90 x 322.58 x 93.98mm

  • Weight

    8.2lbs / 3.72kg

  • UPC Code

    010343915039

8 Accessories for Epson PowerLite 520 XGA Short Throw 3LCD Projector, 2700 Lumens, 4:3 Aspect Ratio, 16W Speaker, Up to 10000 Hours ECO Mode Lamp Life, HDMI/VGA/RCA/USB

  • All Accessories (8)
  • Lamps & Bulbs (1)
  • Projection Screen (1)
  • Screens (2)
  • Speakers (1)
  • Adapters & Mounts (3)

About Epson PowerLite 520

Bring inspiring lessons to any classroom with the affordable Epson PowerLite 520 XGA short-throw 3LCD projector. Delivering 3x Brighter Colors than competitive models, Epson 3LCD projectors ensure incredible images. Featuring 2700 lumens of color brightness and 2700 lumens of white brightness1, the 520 shines - even in ambient light. Optimized for small spaces, it can project images up to 108" from 4' away with minimal shadows or glare. Low-cost, long-lasting lamps offer a low total cost of ownership. The optional wall mount enables flexible installation. Moderator device management software3 allows instructors to wirelessly share students work from multiple devices, simultaneously including computers, iOS and Android devices.

3x Brighter Colors with Epson
Brilliant image quality requires high color brightness. Epson 3LCD projectors have 3x Brighter Colors than leading competitive projectors. Delivering 2700 lumens of color brightness and 2700 lumens of white brightness, the PowerLite 520 uses 3LCD, 3-chip technology for brilliant images with true-to-life color.

Bright and Colorful
Features 2700 lumens of color brightness (color light output) and 2700 lumens of white brightness (white light output).

Short-Throw Projector
Can be mounted only 28 inches away from the board and the projected image can get as large as 106" diagonal with no shadow interference (using the optional wall mount).

Lamp Life
High-efficiency lamp lasts up to 5000 hours in normal mode and up to 10000 hours in ECO Mode.

XGA
It has a resolution of 1024 x 768.

Moderator Function
Multi-PC projection and Moderator function allows up to 50 devices to connect over a network and then select up to 4 to project simultaneously.

Optional Wireless Connectivity
It can be used wirelessly with optional high-speed LAN module (purchased separately).

Incredible Image Quality
It has a native XGA resolution and 4:3 format.

Large, Engaging Presentations, Even in Small Spaces
The short throw distance saves space and projects a 108" image from just 4' away with minimal shadows and glare.

Flexible Placement
The projector can be installed using a wall mount (optional) or place on a tabletop or cart.

Convenient Collaboration for BYOD Classrooms
Wirelessly share and compare students work from multiple devices, simultaneously, with Moderator device management software.

Wireless Projection from an Array of Devices
Project from iPhone, iPad, Android tablets and smartphones with the free Epson iProjection App (wireless module sold separately).

Manage Projectors and Present Remotely
An easy network connectivity software is included.

Powerful Sound to Engage Every Student
This projector includes a built-in 16 W speaker and microphone input or, use external speakers, even in Standby Mode.

What's in the box:

  • Epson PowerLite 520 XGA Short Throw 3LCD Projector
  • Power Cord
  • Computer Cable (VGA)
  • Projector Remote Control
  • Batteries
  • User Manual CD
  • Projector Software CD
  • Quick Setup Sheet
  • Lens Cover
  • Password Protection Sticker
  • Epson 2 Year Projector and 90 Day Lamp Limited Warranty
