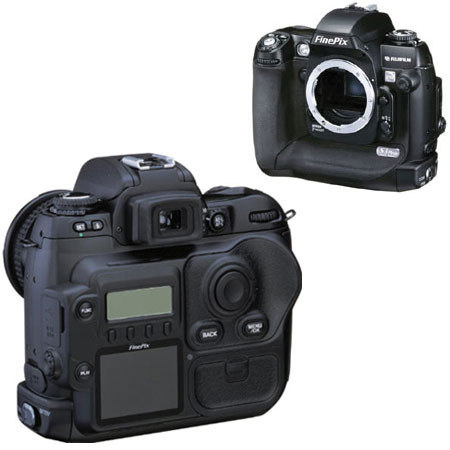

Fujifilm Finepix S-3 Pro UVIR Scientific & Forensic Digital SLR Camera, Body Only Kit, 12.3 Megapixel, Uses Nikon Mount Interchangeable Lenses - USA

SKU: IFJS3UVIR

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Fujifilm Finepix S-3 Pro UVIR Scientific & Forensic Digital SLR Camera, Body Only Kit, 12.3 Megapixel, Uses Nikon Mount Interchangeable Lenses - USA Specifications

  • Type of camera

    Interchangeable-lens SLR-type digital camera
    For Scientific and Forensic Photography

  • Number of effective pixels*

    12.34 million (S-pixel: 6.17million, R-pixel: 6.17 million) pixels

  • CCD sensor

    23.0x15.5mm Super CCD SR II
    Number of total pixels: 12.9 million (S-pixel: 6.45 million, R-pixel: 6.45 million ) pixels

  • Number of recorded pixels

    Still image: 4,256x2,848 (12.1 million) /3,024x2,016/ 2,304x1,536/1,440x960 pixels

  • Storage media

    Slot No.1: xD-Picture Card (16MB - 2GB)
    Slot No.2: CF/Microdrive
    (Compatibility is listed on Fujifilm website:http://home.fujifilm.com/products/digital/)

  • File format

    JPEG-DCF compatible (Exif Ver 2.21** )
    ( Design rule for Camera File system compliant / DPOF-compatible )
    CCD-RAW (14bit)

  • Lens mount

    Nikon F mount (with AF coupling, AF contacts)

  • Usable lenses

    D/G type AF Nikkor lenses: All functions possible
    AF Nikkor other than D/G type: All function except 3D Matrix
    Metering possible
    Non-CPU: Usable in Manual exposure mode
    (exposure meter will not be accurate w/S3 Pro IRUV)

  • Lens servo

    Single Servo AF (S), Continuous Servo AF, Manual focus (M)
    Focus tracking automatically activated in subject's status in Single Servo AF (S) or Continuous Servo AF (C)

  • Picture angle

    Approx.1.5x focal length in 35mm format equivalent

  • Auto focus

    TTL phase detection (Auto AF may not perform well with S3 PRO IRUV)
    Detection range: EV -1 to EV 19
    (ISO 100 equivalent at normal temperature)
    (Manual focus is recomended under IR applications)
    (see live preview function)

  • Focus areas

    One of five focus areas can be selected

  • AF Area mode

    Single Area AF
    Dynamic AF (Dynamic AF Mode with Closest Subject Priority is available)

  • Focus lock

    Focus is locked by pressing AE/AF Lock button or lightly pressing shutter release button in Single Servo AF

  • Shutter

    Electronically controlled vertical-travel focal-plane shutter

  • Shutter speed

    30 sec. to 1/4000 sec. Bulb, X-contact, Max.1/180 sec.

  • Sensitivity

    Equivalent to ISO 200/400/800/1600
    (Although ISO setting below 200 is possible, it.s not recommended)

  • Exposure metering system

    TTL full-aperture exposure metering system
    Three metering systems selectable
    (limitations with lens used)
    3D-10 Matrix Metering: EV 0-21
    Center-Weighted metering: EV 0-21
    Spot Metering: EV 3-21

  • Exposure compensation

    +/-3 EV range, in 1/2 steps

  • Exposure modes

    P: Auto-Multi Program (Flexible program possible)
    S: Shutter-priority Auto
    A: Aperture-priority Auto
    M: Manual

  • White balance

    Automatic (WB is not applicable under IR conditions) Manual: Fine, Shade, Fluorescent light (Daylight), Fluorescent light (Warm White), Fluorescent light (Cool White), Incandescent light, Custom 1, Custom 2

  • Viewfinder

    To focus the camera use Live Preview LCD function if dark UV and IR lens filters are in place.
    Fixed-eyelevel pentaprism, built-in diopter adjustment (-2.0-1 to +1.0m-1)
    Frame coverage: Approx.93% vertical, Aprox.95% horizontal

  • Eye point

    24 mm

  • Focusing screen

    Clear Matte Screen II with focus brackets and On-demand Grid Lines able to display

  • Viewfinder information

    Focus indications, Metering system, AE lock, Shutter speed, Aperture, Exposure mode, Electronic analog exposure display/exposure compensation display, Frame counter/exposure compensation value, Ready-light, Multiple exposure, Focus area, Flash exposure compensation, Five sets of focus brackets (area) /Spot metering area, Center-Weighted metering,On-Demand Grid Lines able to display

  • LCD panel (top panel) display

    Shutter speed/Exposure compensation value, Aperture, Exposure compensation, Flash exposure compensation, Auto exposure bracketing, Bracketing bar graphs, flexible program, Flash sync mode, AF area mode Focus area, Battery power

  • LCD monitor

    2.0-inch low temperature polysilicon TFT (approx. 235,000 pixels, wide-type LCD, approx. 100% frame coverage)

  • Built-in flash

    Guide No.12 (ISO 100, m), flash coverage: 20mm or longer lens

  • Flash sync. mode

    Front-curtain sync (normal sync),
    Red-eye reduction,
    Red-eye reduction with slow sync,
    Slow sync, Rear curtain sync

  • Ready light

    Lights up when flash fully charged with built in flash Blinks for 3 sec. for full output warning

  • Accessory shoe

    Standard ISO-type with hot-shoe contact ( Safty lock provided )

  • Remote release

    Electronic shutter release

  • Self-timer

    Electronically controlled: timer duration: 20sec./10sec./5sec./2sec.

  • Video output

    NTSC/PAL selectable

  • Digital Interface

    USB 2.0 (High-speed) for data storage,
    IEEE1394 for data storage & shooting

  • Sync contact

    X-contact only: flash synchronization up to 1/180 sec.

  • Power source

    4 AA type Ni-MH batteries (sharing power with camera body), AC Power Adapter AV-5VX (Optional)

  • Shooting modes

    Single frame shooting
    Continuous shooting
    D-range: STD mode: Max.2.5 frames/sec.
    RAW: Up to max. 7 frames,
    JPEG: Up to max. 12 frames
    D-range: WIDE mode: RAW, Max.1.4 frames/sec. Up to 3 frames
    JPEG, Max.1 frame/sec. Up to 6 frames
    Preview mode/Multiple exposure

  • Parameter setting

    Color : HIGH/ STD/ ORG/ B&W Film simulation : FILM SIMULATION F1/ F2 Color space : sRGB/ Adobe-RGB Contrast : HARD/ STD/ ORG Sharpness : HARD/ STD/ ORG D-range : WIDE : AUTO / WIDE 1/ WIDE 2 STD

  • Playback function

    Single frame/ Thumbnails in 9 segments
    Playback zoom/ Histogram indication/ Standard chart

  • Disclaimer

    Fujifilm Disclaimer: S3 PRO UVIR's Auto Focusing and Auto Exposure may not function properly due to the wide range of lighting conditions between UV & IR. Manual Exposure Compensation and Focus is required.

  • Dimensions

    147.8 (W)x135.3 (H)x78.5 (D) mm/5.8 (W)x5.3 (H)x3.1 (D) in.

  • Weight

    Approx. 815g / 28.7oz. (excluding battery & lens)

3 Accessories for Fujifilm Finepix S-3 Pro UVIR Scientific & Forensic Digital SLR Camera, Body Only Kit, 12.3 Megapixel, Uses Nikon Mount Interchangeable Lenses - USA

  • All Accessories (3)
  • Batteries & Power Supply (1)
  • Cable Release (1)
  • Cleaning Accessories (1)

About Fujifilm Finepix S-3 Pro UVIR Scientific & Forensic Digital SLR Camera, Body Only Kit, 12.3 Megapixel, Uses Nikon Mount Interchangeable Lenses - USA

FinePix S3 Pro UVIR. Get ready to see things... Differently

Scientific and forensic digital photography has come of age with the introduction of the Fujifilm FinePix S3 Pro IR series of digital SLR cameras. Gone are the days of 3d party custom modifications that void warranties & leave you without support.

As infrared film becomes less common due to availability & costly complex chemical processing, the need for high resolution DSLR's that provide faster results in both infrared & ultra violet wavelengths has become critical. Fujifilm's S3 Pro IR model now makes it possible to capture, analyze, transfer, & output images faster than film processing.

Digital IR & UV Applications include: Forensic science, medical analysis of skin conditions, toxicology, vascular tracing, tattoo documentation, biological trace detection, evidence & counterfeit documenting, crime scene & forgery investigations, surveillance, gun shot residue, burned documentation recovery, bit mark analysis, & autopsies.

For the law enforcement community, special light sources are often used to see in alternate spectrums during the evidence-gathering phase of an investigation. Therefore in-field, high-resolution documentation in the ultraviolet or infrared spectrums has become key to many aspects of a case. It's now important to photograph field evidence before it is removed & undergoes potential change from further analysis.

FinePix S3 Pro UV IR:
The Super CCD SRII's low band pass filter (ultra violet protection) has been removed along with the IR protection filter. This optimizes the wide dynamic of the Super CCD SRII to see in both visible, UV, & IR spectrums at once. The application for the IRUV model is primarily scientific in nature. Due to sensitivity to such a wide range of wavelengths, manual focusing & exposure control are required.

Capture of a desired wavelength is managed by direct lens filtration, tuned to the light source in use. Fujifilm's exclusive 30-second Super CCD live preview mode allows fast easy pre-capture verification & direct manual focusing via the LCD before the image is captured.

Some SLR lenses are protected against UV & IR light penetration; therefore review all lens technical specifications. The S3 Pro IR's exclusive 30-second Super CCD live-preview mode allows fast easy pre-capture verification & direct manual focusing via the LCD before the image is captured.

Fujifilms Exclusive Super CCD SRII with 400% wide dynamic range captures more highlight/shadow detail with less noise. With an ultra-high resolution maximum image size of 12.1 million recording pixels, detail is astonishing.

Live CCD post-capture preview & focus verification provide a live 30-second preview from the CCD to the LCD monitor. Up to 1600 ISO with very low noise even during long 30-second exposures. Supports Nikon F mount lenses, & Nikon Flash interfaces, an In-camera B&W capture mode & Advanced RAW file processing.

Fujifilm Finepix S-3 Pro UVIR Scientific & Forensic Digital SLR Camera, Body Only Kit, 12.3 Megapixel, Uses Nikon Mount Interchangeable Lenses - USA Features

  • UVIR Scientific & Forensic Digital SLR
  • Digital IR and UV Applications
  • SLR digital camera with Nikon F-mount with AF Coupling, AF Contacts
  • Live CCD Focusing
  • 12.34 million effective pixels
  • 23.0 x 15.5mm-size Super CCD SR II
  • 4256 x 2848 (12.1 million) recording pixels
  • 2.0-inch, 235,000-pixel LCD monitor
  • Sensitivity to 1600 ISO Equivalent
  • Shutter speed: Bulb, 30 to 1/4000 sec
  • Flash X-Sync 1/180 sec max.
  • Dual media slots: xD-Picture Card, CF/Microdrive
  • Dual interfaces: USB 2.0 (High speed), IEEE 1394
  • Power source: 4 x AA size Ni-MH batteries
  • Built-in Flash and Nikon Flash interfaces
  • In-camera B&W capture mode
  • Advanced RAW file processing and secure tethered firewire high-speed remote shooting from your PC or MAC is possible using optional Hyper Utility ver3.x.

What's in the box:

  • Finepix S-3 Pro UVIR Digital SLR Camera Body
  • 4 Ni-MH Batteries & Charger
  • Shoulder Strap
  • Body Cap
  • Eyepiece Cap
  • Accessory Shoe Cover
  • LCD Cover
  • Cable Holder
  • USB Cable (with Clamp Filter)
  • IEEE 1394 Cable
  • Video Cable CD-ROM: USB Driver
  • FinePixViewer
  • ImageMixer VCD2 for FinePix
  • RAW FILE CONVERTER LE
  • Advanced HyperUtility RAW Converter and Tethered Shooting Software
  • AC Adapter
  • Fujifilm Warranty
