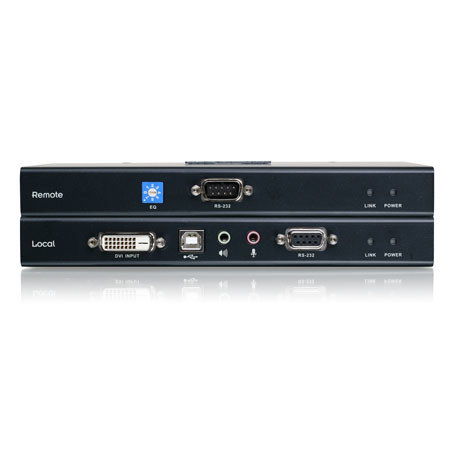

Iogear GCE611U DVI USB Console Extender, TAA Compliance

Iogear GCE611U: Picture 1 thumbnail Iogear GCE611U: Picture 2 thumbnail Iogear GCE611U: Picture 3 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Iogear GCE611U

The Iogear GCE611U DVI USB Console Extender (TAA Compliance) allows a user to access a DVI/USB computer system from up to 200' (60m) away and delivers excellent resolution for up to 1920 x 1200 at 60 Hz at 100' (30 m); and 1024 x 768 at 60 Hz at 200' (60 m) . The number of computers to be accessed remotely can be expanded by deploying a compatible DVI KVM switch.

It is perfect for use in many types of installation where you need to have easy access to the console, but at the same time concerned about the environment such as the dust and dirt of the factory floor, or the harsh environmental a construction site, or bad whether. It uses two CAT5e cables, one dedicated to transmit the DVI signal, the other for HDCP, RS-232 and microphone signals. It also supports stereo speakers and microphone, as well as RS-232 signals.

Iogear GCE611U Features

  • Access a DVI computer or DVI KVM installation from up to 200' (60 m) away
  • Manual compensation control to adjust signal strength in order to compensate for distance
  • RS-232 serial ports: connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (supporting Baud Rate up to 115200 bps)
  • HDCP compliant
  • Audio Enabled: supports stereo speakers and microphone
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Supports Wide Screen formats
  • Superior video quality of up to 1920 x 1200 at 60 Hz at 30 m; 1024 x 768 at 60 Hz at 60 m - get an excellent, crisp image on your screen over long distance transmissions
  • Hot pluggable
  • Easy to install - no software required - connecting cables to the devices is all it takes
  • Firmware upgrade

Iogear GCE611U Specifications

Enclosure Type
Connectivity Technology
Keyboard / Mouse Interface
Max Resolution
1920 x 1200 at 60 Hz
Max Transfer Distance
Status Indicators
Link activity, power
Firmware upgradable, 15 KV Electrostatic Discharge Protection, HDCP compliant
1 x display / video - DVI-Digital - 24 pin digital DVI
1 x audio - line-out - mini-phone stereo 3.5 mm
1 x microphone - input - mini-phone 3.5 mm
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
2 x keyboard / mouse - USB - 4 pin USB Type A
Power Device
Power adapter - external
Min Operating Temperature
32 deg.F
Max Operating Temperature
122 deg.F
Humidity Range Operating
0 - 80% (non-condensing)
Dimensions (WxDxH)
8x3.4x1" / 20.32x8.6x2.54cm
16.9 oz / 7.66 kg
