IOGEAR 2-Port Dual-Link DVI Cable KVM Switch with Audio, Control 2 Computers with 1 Console, 2560x1600 Resolution

SKU: IGCS982U

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2019-04-03T21:01:15

Rated 5 out of 5

Great switcher for DVI

Works great for using two PCs

GARY F.

IOGEAR GCS982U Specifications

  • Computer Connections: Direct

    2

  • Console Connection

    1

  • Port Selection

    Hotkey, Mouse or Remote Switch Button

  • PC Connectors

    Keyboard: (2) USB Type A Male (Purple)
    Mouse: (2) USB Type A Male (Black)
    Monitor: (2) Dual-Link DVI-D Male
    Audio: (2) Mini Stereo Jack Male (Green)
    Microphone: (2) Mini Stereo Jack Male (Pink)

  • Console Connectors

    Keyboard: (1) USB Type A Female
    Mouse: (1) USB Type A Female
    Monitor: (1) Dual-Link DVI-D Female
    Audio: (1) Mini Stereo Jack Female (Green)
    Microphone: (1) Mini Stereo Jack Female (Pink)

  • Video Resolution

    1920 x 1200 at 60Hz; DDC2B
    32-bit color depth

  • Scan Interval

    Default 5 sec
    Adjustable to 3, 5, 10 or 20 sec

  • Emulation

    Keyboard: USB
    Mouse: USB

  • POP Information

    (3) Peg Hook 10" (25.4 cm)
    (2) Peg Hook 6" (15.24 cm)

  • Operation Temperature

    32deg. - 122deg. F (0deg. - 50deg. C)

  • Storage Temperature

    -4deg. - 120deg. F (-20deg. - 60deg. C)

  • Humidity

    0% - 80% RH (Non-condensing)

  • Power Requirements

    Bus-powered

  • LEDs

    Port ID: (2) Green

  • Cable Length

    3.9' (1.2m)

  • System Requirements

    Console:
    (1) DVI display
    (1) USB keyboard and 2 USB mice
    Computers:
    (1) DVI port
    (2) USB ports
    Operating Systems:
    Windows XP, Windows Vista (32-bit / 64-bit)
    Windows 7 (32-bit / 64-bit)
    Mac OS X 10.3.9 or later
    Sun Solaris
    Linux

  • Enclosure

    Plastic

  • Dimensions (W x H x D)

    4.75 x 3.75 x 1.00" (12.06 x 9.52 x 2.54cm)

  • Weight

    1.20lbs (0.54kg)

  • UPC Code

    881317508676

About IOGEAR GCS982U

FEATURED REVIEWS

Great switcher for DVI

By GARY F.

Works great for using two PCs

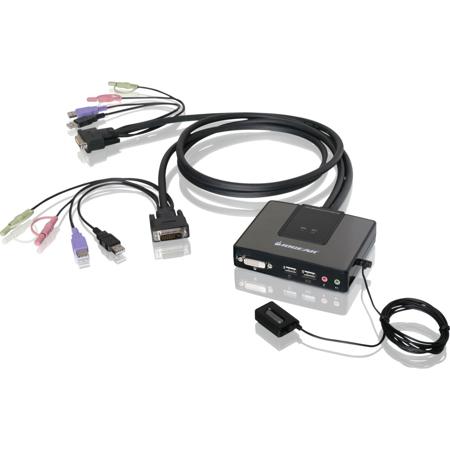

The IOGEAR 2-Port USB Dual-Link DVI Cable KVM Switch with Audio is a simple way to share one dual-link DVI monitor, mouse, keyboard, speaker set and microphone between two different computers. The product supports 32-bit color at resolutions up to 2560 x 1600 and its mouse and keyboard emulation ensures uninterrupted operation when switching between computers.

There are two convenient switching methods available to use with this switch. The first is a simple push-button remote that easily fits anywhere on your desk and the second is via hotkeys that allow you to independently switch and control the functions between computers.

Equipped with IOGEAR's DynaSync, which provides the EDID support for Windows 7, this technology remembers your monitor's ideal resolution and refresh rate. The switch can then boot up all of your computers simultaneously and switch back and forth between the two computers quickly--while still maintaining the ideal resolution of the monitor. Whether you need to quickly toggle between PC, Mac, or Sun hardware, the 2-Port USB Dual-Link DVI Cable KVM Switch from IOGEAR provides an easy-to-use Plug-n-Play solution to share and switch between devices.

IOGEAR GCS982U Features

  • One dual-link DVI console controls two dual-link DVI / USB computers
  • Dual-link DVI resolution up to 2560x1600 at 60Hz
  • Port switching via remote switch button, mouse or hotkeys
  • Hotkeys allows independent KVM and audio switching between computers
  • 2.1 stereo sound and microphone support
  • USB 2.0 Peripheral Sharing via mouse port - Connect a powered USB hub to expand your USB connectivity
  • Iogear's DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
  • USB mouse and keyboard emulation for error-free boot-up and instantaneous recognition when switching computers
  • Power-On Detection - If one of the computers is powered off, it will automatically switch to the next powered-on computer
  • Re-programmable Hotkey activation for keyboards without a Scroll Lock key
  • Mouse emulation can be disabled to support mice with special keys
  • Mac and Sun keyboard support
  • Firmware upgradeable
  • Plug-n-Play; No software required

Key Features

  • One dual-link DVI console controls two dual-link DVI / USB computers
  • Dual-link DVI resolution up to 2560x1600 at 60Hz
  • Port switching via remote switch button, mouse or hotkeys
  • Hotkeys allows independent KVM and audio switching between computers
  • 2.1 stereo sound and microphone support
  • Re-programmable Hotkey activation for keyboards without a Scroll Lock key

What's in the box:

  • IOGEAR 2-Port USB Dual-Link DVI Cable KVM Switch with Audio
  • Remote Switch Button
  • Installation Guide
  • IOGEAR 3 Year Warranty
