Iogear USB VGA KVM Console Extender


Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Iogear

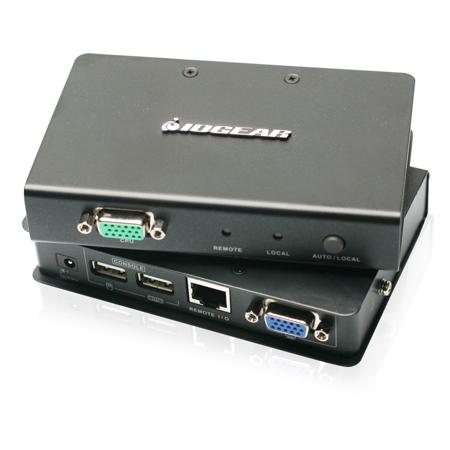

The Iogear USB VGA KVM Console Extender is a solid solution if you want to setup a computer console (a mouse, keyboard and monitor) that is up to 500 feet away from your PC or KVM switch. As part of the Extender, you receive a local unit and a remote unit. Both of these can be connected together via a CAT5e/6 cable up to 500 feet away. For the local unit, you can connect your computer as well as a VGA monitor, a USB mouse and USB keyboard. Also from that local unit, you can then setup a far-away connection to your remote unit. From the remote unit, you can then setup another console.

For instance, the local and remote units allow you to setup a console from a server room to another location that may be more comfortable and quieter. These units also allow you to setup your computer in one location securely while allowing other users access to it via a console in a more convenient location.

The Extender is also a effective solution because it uses inexpensive UTP (CAT5e/6) cabling to extend the distance, versus expensive and bulky coaxial cabling. It is easy to install and operate thanks to its Auto Signal Compensation (ASC) technology, which senses the distance and adjusts the signal levels accordingly so there is no need to do any DIP switch setting. It also provides a built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility.

Iogear Features

  • Extend your KVM console (VGA monitor, USB keyboard & mouse) connection up to 500 ft. via CAT5e cables
  • Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches
  • Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility
  • Dual Console Operation - Control your system from either the local or remote console
  • Built-in 8KV ESD protection and 2KV surge protection
  • Maximum video resolution up to: 1920 x 1200 @ 60Hz (100 ft. - 30m), 1600 x 1200 @ 60HZ (330 ft. - 100m), 1280 x 1024 @ 60Hz (500 ft. - 150m)
  • USB over-current detection and prevention
  • Easy To Operate: Push button selection between local and remote console
  • Local monitor supports DDC; DDC2; DDC2B
  • Rack Mountable (rack mount kit included)
  • Plug-N-Play: No need for any software driver installation

Iogear Specifications

Max Computer Connections
PC Connector
Local Unit:
1x SPHD-17 Female
Remote Unit to Local Unit Connector:
1x RJ45 Female
Console Connectors:
Local Unit:
Monitor: 1x HDB-15 Female
Keyboard: 1x USB Type A Female
Mouse: 1x USB Type A Female
Remote Unit:
Monitor: 1x HDB-15 Female
Keyboard: 1x USB Type A Female
Mouse: 1x USB Type A Female
Video Resolution
Up to 1920 x 1200 @ 60Hz
1x Local; 1x Remote
1x Remote; 1x Link
System Requirements
CAT5e/6 Cable
VGA, SVGA, SXGA, UXGA, WUXGA or multi-sync monitor
USB keyboard and mouse
VGA, SVGA, SXGA, UXGA, WUXGA or multi-sync video output
An available USB port
Operation Temperature: 32 to 122deg.F / 0 to 50deg.C
Storage Temperature: -4 to 140deg.F / -20 to 60deg.C
Humidity: 0 to 80% RH; Non-condensing
Power Consumption
Local: DC5.3V, 2.31W
Remote: DC5.3V, 2.84W
Cable Distance
Up to 495ft (150m)
Case: Metal
Dimensions (W x H x D)
5 x 1 x 3.37" / 12.7 x 2.54 x 8.56 cm
1.41 lb / 0.64 kg
Mfr #
