Iogear 8-Port 17" LCD Combo KVM Switch with 4 USB and PS/2 Console Port

Iogear : Picture 1 thumbnail Iogear : Picture 2 thumbnail Iogear : Picture 3 thumbnail Iogear : Picture 4 thumbnail Iogear : Picture 5 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About Iogear

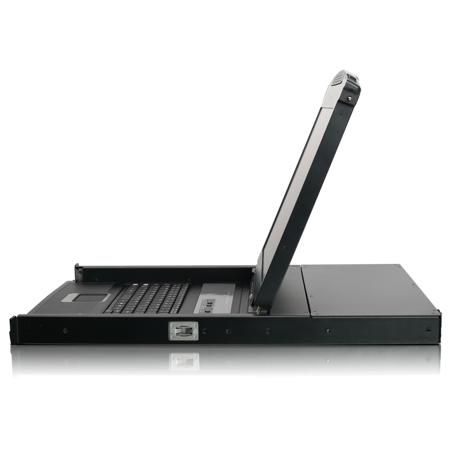

The Iogear 17" LCD Combo Console (8-Port KVM Switch, Cables) integrates a keyboard, a sliding / retractable 17" (43.18 cm) TFT LCD Active Matrix monitor, a touchpad and an 8-port KVM switch in a universal 1U rack mount space. In addition, it comes with 4 USB and 4 PS/2 KVM cables and is compatible with Windows, Mac, Sun Solaris and Linux platforms. The 8-port KVM (keyboard, video and mouse) switch can be connected to 8 VGA, USB or PS/2 ports. Moreover, up to 8 additional compatible KVM switches can be cascaded together, allowing you to control up to 128 computers from a single KVM console.

Equipped with an additional USB / PS/2 console port on the rear panel, the LCD Combo Console allows you to manage the LCD KVM switch from an external console (monitor, keyboard and mouse) and also supports an external USB mouse. The front panel pushbutton LEDs, intuitive On Screen Display (OSD) and hotkeys enable you to quickly access a given computer. The OSD comes with 2-level password protection for enhanced security.

The 17" LCD Combo Console's depth can be easily adjusted, allowing it to fit racks of different sizes. With a resolution of 1280x1024 pixels, the monitor displays clear and crisp images. With DDC emulation, the video settings of each computer are automatically adjusted for optimal output to the monitor. Featuring an auto-sensing function, Custom ASIC helps recognize the position of each station on the installation. The console fully supports the DDC2B protocol.

Iogear Features

  • Integrated 8-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
  • 1280 x1024 resolutionon 17" rack mountLCD provides asharpvideo display
  • Equipped with 4 USB & 4 PS/2 KVM Cables
  • Adjustable depth to fit different sizes of racks
  • Multi platform OS support: Windows, Mac, Sun Solaris and Linux
  • Easy to operate: Computer selection via front panel pushbutton LED's, intuitive OSD (on screen display) and hotkeys
  • External USB mouse port for convenience
  • External USB or PS/2 with VGA Console port
  • USB media port support for attached USB computers (system upgrades, etc)
  • Cascade up to 2 levels: Control up to128 computers from a single console
  • Security: 2 level password protection for OSD
  • DDC Emulation: Video settings of each computer are automatically adjusted for optimal output to the monitor
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully supports the DDC2B protocol

Iogear Specifications

Computer Connections
Direct: 8
Daisy Chain or Cascading: 128
Port Selection
OSD, Hotkeys, Pushbuttons
Console: 1 x HDB-15 Female
Power: 1 x 3-Prong AC Socket
Console Connectors
Monitor: 1 x HDB-15 Female
Keyboard: PS/2 or USB
Mouse: S/2 or USB
Extra Mouse: 1 x USB Type A Female
Flash ROM Upgrade: 1 x RJ-11 Female
CPU Connectors
Keyboard, Mouse and Monitor: 8 x SPHD-15 Female
Reset: 1 x Semi-recessed Pushbutton
Power: 1 x Rocker Switch
F/W Upgrade: 1 x Switch
LCD Adjustment: 4 x Pushbutton
LCD Power: 1 x LED Pushbutton (Orange)
Port Selection: 4 x Pushbutton
On Line: 8 (Orange)
Port ID: 4 x 7 Segment LED Display (Yellow)
Power On: Dark Green
Keyboard: PS/2, USB
Mouse: PS/2, USB
Video Resolution
1280 x 1024 @ 75Hz; DDC2B
Scan Interval
1-255 Seconds
Power Input Rating
Per AC Power Inlet, 50/60Hz: 100-240VAC. 50/60Hz, 1A
Power Consumption
120V, 28W
Operation Temperature: 32 to 104deg.F (0 to 40deg.C)
Storage Temperature: 68 to 140deg.F (-20 to 60deg.C)
Humidity: 0-80% RH; Non-condensing
Case: Metal and Plastic
VGA, SVGA, or MultiSync Video Graphics Card with an HDB-15 port
PS/2 mouse and keyboard ports (6-pin mini DIN) or 1 USB port
Dimensions (W x H x D)
19 x 1.75 x 25" (48.26 x 4.44 x 63.5 cm)
27.78 lb (12.6 kg)
