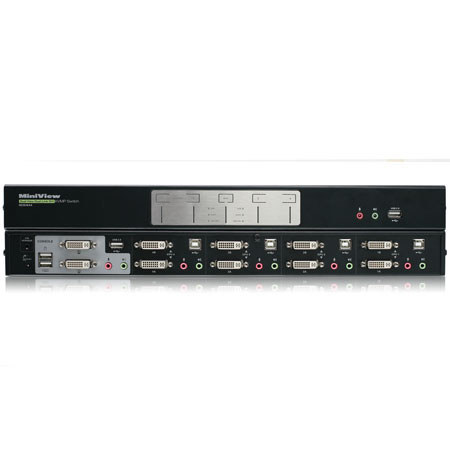

IOGEAR 4-Port Dual View Dual-Link DVI KVMP Switch
See all Iogear items

IOGEAR 4-Port Dual View Dual-Link DVI KVMP Switch with Audio

SKU: IGGCS1644
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

IOGEAR 4-Port Dual View Dual-Link DVI KVMP Switch Specifications

  • Max Computer Connections

    4

  • Console Connectors

    Monitor: 2 x Dual Link DVI-I Female
    Keyboard: 1 x USB Type A Female
    Mouse: 1 x USB Type A Female
    Audio: 1 x Mini Stereo Jack Female (Green)
    Microphone: 1 x Mini Stereo Jack Female (Pink)

  • CPU Connectors

    Monitor: 8 x Dual Link DVI-I Female
    Keyboard & Mouse: 4 x USB Type B Female
    Audio: 4 x Mini Stereo Jack Female (Green)
    Microphone: 4 x Mini Stereo Jack Female (Pink)

  • F/W Upgrade

    1 x 4-conductor 3.5mm Jack

  • Port Selection

    5 x Pushbutton

  • Power Connections

    1 x DC Jack

  • USB

    2 x USB Type A Female

  • LEDs

    Mode: 3 (Orange)
    KVM: 4 (Green)
    Audio: 4 (Green)
    USB Peripherals: 4 (Green)

  • Emulation Keyboard

    USB

  • Emulation Mouse

    USB

  • Video Resolution

    Single Link DVI: 1920x1200; Dual Link DVI: 2650x1600

  • Scan Interval

    1-99 seconds (5 seconds by default)

  • Voltage

    DC 5.3V

  • Amps

    2.4A

  • Operation Temperature

    0-50deg.C

  • Storage Temperature

    -20-60deg.C

  • Humidity

    0-80% RH, Non-condensing

  • Housing

    Metal

  • Dimensions (W x H x D)

    17 x 1.75 x 6.125" (43.2 x 4.4 x 15.6cm)

  • Weight

    5.8 lb (2.6kg)

  • UPC Code

    881317502841

About IOGEAR 4-Port Dual View Dual-Link DVI KVMP Switch

The Iogear 4-Port Dual View Dual-Link DVI KVMP Switch with Audio from IOGEAR allows you to control up to 4 computers using a single keyboard and mouse. Perfect for multimedia applications, the switch supports dual monitor configurations, an integrated 2-port USB 2.0 hub and audio switching. The switch features IOGEAR's Display Emulation Technology, which remembers your display's ideal resolution and refresh rate. This allows you to boot all of your computer simultaneously and switch between computers, while still maintaining ideal video settings for your particular monitor.

IOGEAR 4-Port Dual View Dual-Link DVI KVMP Switch Features

  • Dual View Dual-Link DVI support - Share 2 DVI monitors with a single keyboard and mouse,along4 computers
  • High resolution - Up to 2560 x 1600
  • 2-portUSB 2.0hub for peripheral sharing
  • Asynchronous hotkey switching between KVM focus, USB peripheral and Audio ports
  • IOGEAR's DynaSync reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
  • Complete keyboard and mouse emulation for error free booting and real-time switching
  • Computer switching via front panel push buttons or hotkeys
  • Supports MAC and Sun keyboard and special keys
  • Firmware upgradeable
  • Plug & Play - no software installation required
  • Buzzer ON/OFF via hotkey
  • Multi OS platform support

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High resolution - Up to 2560 x 1600
  • 2-portUSB 2.0hub for peripheral sharing
  • Computer switching via front panel push buttons or hotkeys
  • Supports MAC and Sun keyboard and special keys
  • Firmware upgradeable
  • Plug & Play - no software installation required

What's in the box:

  • IOGEAR 1 x 4-Port Dual View Dual-Link DVI KVMP Switch
  • 4 x Dual-Link DVI-D KVM Cable
  • 4 x Dual-Link DVI-D Cable
  • 1 x PS/2 to USB Adapter
  • 1 x Firmware Upgrade Cable
  • 1 x Power Adapter
  • 1 x Installation Guide
  • 1 x Warranty Card
  • IOGEAR 3 Year Warranty
