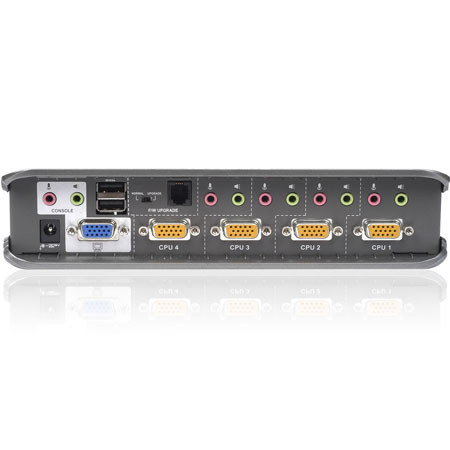

IOGEAR 4-Port Dual Platform KVMP Switch with Keyboard and Mouse
See all Iogear items

IOGEAR 4-Port Dual Platform KVMP Switch with Wireless Keyboard and Mouse Kit

SKU: IGGCS1734KM1
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

IOGEAR 4-Port Dual Platform KVMP Switch with Keyboard and Mouse Specifications

  • GCS1734: Console Connectors

    Mouse: 1 x USB Type A
    Keyboard: 1 x USB Type A
    Monitor: 1 x HDB-15 Female (Std. VGA/SVGA)
    Audio: 1 x stereo speaker; 1 x Microphone
    Flash ROM Upgrade: 1 x RJ11 socket

  • GCS1734: Voltage

    DC 5V

  • GCS1734: Amps

    2.6 AMP

  • GCS1734: LEDs

    Selected: 4
    On Line: 4
    USB Peripherals: 4

  • GCS1734: Port Selection

    Push button, Hot Keys

  • GCS1734: Power Consumption

    Bus powered, power adapter for additional power

  • GCS1734: Video Resolution

    2048x1536 (Max.); DDC/ DDC2B/ DDC2AB

  • GCS1734: Scan Interval

    5 sec.

  • GCS1734: Emulation Keyboard

    USB Plug-n-Play

  • GCS1734: Emulation Mouse

    PS/2, USB

  • GCS1734: Direct Computer Connections

    USB Plug-n-Play

  • GCS1734: CPU Connectors

    Audio: 4 x stereo speaker; 4 x Microphone
    Peripherals: 2 x USB Type A
    Keyboard, Mouse and Monitor: 4 x SPDB15

  • GCS1734: Operating Temperature

    4 - 40 C

  • GCS1734: Storage Temperature

    -20 - 60 C

  • GCS1734: Humidity

    0 - 80% RH

  • GCS1734: Cable Length

    4 ea 6 ft (1.8M)

  • GCS1734: Peripheral Sharing

    USB, selected through Hotkeys

  • GCS1734: Housing

    Metal

  • GKM551R: Operating System Support

    Windows XP, Vista

  • GKM551R: Cable Distance

    3 feet

  • GKM551R: Cable Type

    USB Extention Cable

  • GKM551R: Local Module Connectors

    Mouse: Low Battery Indicator
    Keyboard: Low Battery Indicator

  • GKM551R: Interface

    USB

  • GKM551R: Operating Range

    33 Feet

  • GKM551R: Connectors

    USB

  • GKM551R: USB

    USB 1.1

  • GCS1734: Dimensions (W x H x D)

    8.0 x 1.7 x 3.5" (20.3 x 4.3 x 8.9 cm)

  • Keyboard Dimensions (W x H x L)

    6.75 x 0.75 x 17.8"/17.14 x 1.90 x 45.21 cm

  • Mouse Dimensions (W x H x L)

    2.50 x 1.5 x 4.75"/6.35 x 3.81 x 12.06 cm

  • GCS1734: Weight

    1.1 lbs (0.50 kg)

  • UPC Code

    881317502797

About IOGEAR 4-Port Dual Platform KVMP Switch with Keyboard and Mouse

The IOGEAR GCS1734-KM1 is a special combo which combines the power of IOGEAR's popular 4 port USB KVMP and the long range 2.4GHz wireless media center keyboard and mouse. This allows you to work wirelessly across all 4 computer's attached to the KVMP for an efficient and convenient working station. A KVMP is a KVM Peripheral Sharing Switch which brings extra value to conventional KVM switches by offering USB peripheral sharing capabilities, audio and microphone support. Multi-platform support for Windows, Mac and Sun systems using USB or PS/2. IOGEAR's ultra-thin 2.4GHz long range media center keyboard with laser mouse allows you to work up to 33ft away from the USB receiver connected to your computer or KVM. The laser mouse provides great accuracy requiring minimal hand movement due to its 800 dpi resolution.

IOGEAR 4-Port Dual Platform KVMP Switch with Keyboard and Mouse Features

  • GCS1734 KVMP Switch: 4port Multi functional switch allows two USB or PS/2 computers to share one USB console and two USB peripheral devices such as printers and scanners, as well as speakers and a microphone
  • GCS1734 KVMP Switch: Conveniently switch USB peripheral devices from one computer to another using Hot Keys
  • GCS1734 KVMP Switch: USB peripheral devices and USB consoles can be switched asynchronously from one computer to another using Hot Keys
  • GCS1734 KVMP Switch: Fully compliant with USB 1.1 specifications
  • GCS1734 KVMP Switch: Complete keyboard and mouse emulation for error free booting
  • GCS1734 KVMP Switch: Support special keys on Mac and Sun keyboard
  • GCS1734 KVMP Switch: Allows PC keyboards to simulate Mac and Sun special keys through Hotkeys
  • GCS1734 KVMP Switch: Features AutoScan mode to monitor all computers
  • GCS1734 KVMP Switch: LED display for easy status monitoring
  • GCS1734 KVMP Switch: AutoScan mode to monitor all computers
  • GCS1734 KVMP Switch: Superior video quality - supports resolutions up to 2048 x 1536
  • GCS1734 KVMP Switch: Extra convenience offered through sharing of speakers and microphone
  • GCS1734 KVMP Switch: Easy installation: no software required, hot swappable
  • GCS1734 KVMP Switch: Compact design for easy placement
  • GKM551R: Secure 2.4GHzoperating range of33 ft
  • GKM551R: Laser Mouse with soft rubber grips
  • GKM551R: Control your multimedia functions with media center hot keys
  • GKM551R: Patented Scissor-Key Structure

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • GCS1734 KVMP Switch
  • GKM551R: Secure 2.4GHzoperating range of33 ft
  • GKM551R: Laser Mouse with soft rubber grips
  • GKM551R: Control your multimedia functions with media center hot keys
  • GKM551R: Patented Scissor-Key Structure

What's in the box:

  • IOGEAR 1 x 4-Port MiniView Extreme Multimedia KVMP Switch
  • 1 x Wireless Keyboard
  • 1 x Wireless Laser Mouse
  • 1 x USB RF Receiver
  • 4 x USB KVM Cables
  • 1 x Firmware Upgrade Cable
  • 1 x USB Extension Cable
  • 4 x AAA Battery
  • 1 x Power Adapter
  • 2 x Quick Start Guide
  • 1 x User Manual
  • 2 x Warranty Card
  • IOGEAR 3 Year Warranty
