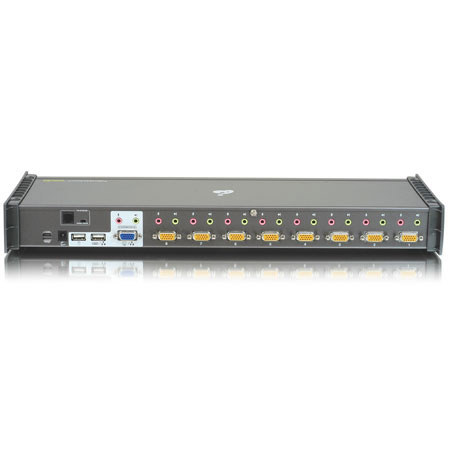

IOGEAR MiniView GCS1758KIT 8-Port Ultra+ KVM Switch with USB Cables, 2048 x 1536 Resolution, USB Interface

SKU: IGGCS1758K

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

IOGEAR GCS1758KIT Specifications

  • Max Computer Connections

    8

  • PC Connectors

    8 x HDB15 Keyboard/Mouse/Monitor Connections
    8 x 1/8" Microphone Input
    8 x 1/8" Speaker Output

  • Console Connectors

    1 x Keyboard USB Type A
    1 x Mouse USB Type A
    1 x Monitor HDDB15 Female
    1 x 1/8" Microphone
    1 x 1/8" Line-Out Audio

  • Video Resolution

    2048 x 1536

  • Scan Interval

    60Hz

  • Port Selection

    Push Buttons, Hot Keys, OSD

  • Enclosure

    1U Rackmount

  • System Requirements

    VGA Monitor USB Keyboard and Mouse for console
    Computers with PS/2 or USB keyboard and mouse connections and VGA monitor connections are supported by the KVM switch

  • Power Requirements

    DC: 5V DC
    Consumption: 2.6A

  • Dimensions (W x H x D)

    17 x 1.75 x 6" (43.2 x 4.4 x 15.2 cm)

  • Weight

    5.9 lb (2.66kg)

  • UPC Code

    881317009586

About IOGEAR GCS1758KIT

The IOGEAR GCS1758KIT 8-Port Miniview Ultra+ KVM Switch is ideal tool to help reduce redundant hardware. Eight monitors, mice and keyboards are simply too expensive, bulky and inconvenient for most system administrators. Why bother when you can control all eight, or even up to 512 computers with a single keyboard, monitor and mouse. The added audio support allows you to enjoy music while working. Just think of the time, space and money you'll save and added fun. The New Miniview Ultra+ is much more than a simple eight-port KVM switch. The dual interface support allows you to connect both PS/2 and USB computers on the same switch. The multi-platform support allows you to control Windows based computers, Sun Solaris systems, Linux, or even Macs by a single KVM switch.

IOGEAR extended the multi-platform support by supporting the special keys on both Sun and Mac keyboards. This KVM switch also comes with the IOGEAR VSE technology, which provides excellent video resolution - up to 2048 x 1536. Built-in AutoScan mode lets you conveniently monitor every attached computer for a specified amount of time, while On Screen Display (OSD) technology allows you to assign a unique name to each computer and access it via a smooth menu-driven interface. With its 1U, 19" rack-mountable casing and status-monitoring LEDs, the Miniview Ultra+ is the perfect switch for your server room or any other multi-computer environment.

IOGEAR GCS1758KIT Features

  • Dual interface support - supports computers with either PS/2 or USB Keyboard and mouse
  • 8 ( 4 10ft and 4 6ft) cables included
  • Multi platform support - Windows, Mac and Sun Solaris
  • Total capacity expandable to support 512 computers via 3 levels of cascading
  • Easy to install - just plug the cables in
  • Audio support allows sharing multimedia speakers and Microphone
  • Easy to operate - computer selection via front panel switches, intuitive OSD (on screen display) and Hot Keys
  • Security - 2 level password protection for OSD
  • Hot Pluggable - both console side and computer side can hot swap and auto-detect device changes
  • LED Display for easy status monitoring
  • Auto Scan Mode for monitoring all computers
  • Complete keyboard emulation for error free booting
  • Superior video quality; 2048 x 1536; support DDC2B
  • Supports special keys on Sun and Mac keyboards
  • Firmware upgradeable through flash ROM
  • Designed for both desktop and rack mount

Key Features

  • Dual interface support - supports computers
  • 8 ( 4 10ft and 4 6ft) cables included
  • Multi platform support - Windows, Mac and Sun Solaris
  • Easy to install - just plug the cables in
  • Audio support allows sharing multimedia speakers and Microphone
  • Security - 2 level password protection for OSD

What's in the box:

  • IOGEAR GCS1758KIT 8-Port Miniview Ultra+ KVM Switch
  • 4 x G2L5302U (10 feet (3 m) )KVM Cables
  • 4 x G2L5303U (6 feet (1.8 m) )KVM Cables
  • 1 x Power Adapter
  • 1 x Rack Mount Kit
  • 1 x Firmware Upgrade Cable
  • 1 x User Manual
  • 1 x Quick Start Guide
  • 1 x Warranty Registration Card
  • IOGEAR 3 Year Warranty
