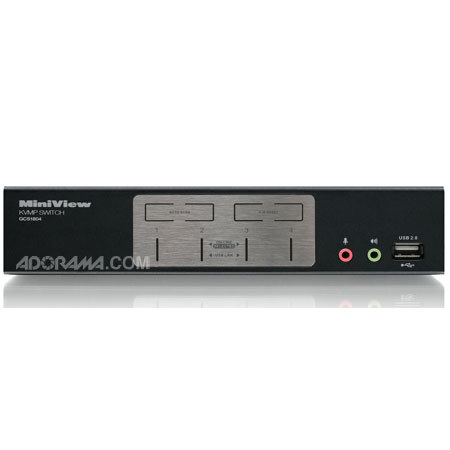

Iogear 4 Port KVMP Switch with USB 2.0 Hub and Audio, On Screen Display

SKU: IGGCS1804 MFR: GCS1804
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$149.99 List Price

Our Price

$129.95
Qty:

Add to Wishlist

About this item

The GCS1804 is the latest addition to Iogear's market leading KVM product line. It is a 4-port KVMP switch with stereo audio ports and an integrated 2-port USB 2.0 hub. Now, users can control up to four computers and share two additional USB peripherals from a single keyboard, monitor, and mouse console.

It features the patented asynchronous switching, which allows the user to independently switch applications between the connected computers. You can run an application on one computer while running another application on the other. Moreover, the integrated 2-port USB 2.0 hub is available for each computer to share multiple peripherals connected directly to the hub or via daisy chaining external powered USB 2.0 hubs. Access to such peripherals is performed on a one-at-a-time basis.

Additionally, Iogear's Display Emulation Technology makes the switch intelligent to read and remember the monitor's optimal display parameters and refresh rate. Finally, the audio ports allow for connecting powered PC speakers for stereo sound and a single microphone for audio input/output to each computer.

Switching between computers can be done in three convenient ways: 1) push button port selection local ted on the unit's front panel, 2) an On Screen Display (OSD) selection panel, and 3) a "Hotkey" programmable combinations entered from the keyboard. Setup is fast and easy; simply plug the cables into their appropriate ports. There is no software to configure or install. Also, the included USB to PS/2 converter permits flexible configurations for the keyboard and mouse.

What's Included With This Item

  • Iogear 4 Port KVMP Switch
  • 4 x Custom USB KVM Cable
  • 1 x PS/2 to USB Adapter
  • 1 x Firmware Upgrade Cable
  • 1 x Power Adapter
  • 1 x Installation Guide
  • 1 x Warranty Card
  • Iogear 3 Year Warranty

Key Features

  • 4-port KVMP switch w/ built-in 2-port High Speed USB 2.0 compliant hub
  • Dual interface - Supports computers with PS/2 or USB keyboard and mouse configurations
  • Audio enabled - Full bass response provides 2.1 stereo sound
  • Console audio ports on front panel for easy access
  • Independent switching of KVM, USB, and Audio
  • Maximum VGA video resolution 2048 x 1536 - Supports widescreen monitors
  • Three convenient computer switching methods - Front panel push button, On Screen Display (OSD), or programmable Hotkeys
  • Display Emulation Technology - Reads and remembers the display's optimal parameters (DDC) to eliminate delays or change in video resolution when switching between or booting computers
  • Console mouse port emulation bypass feature supports programmable mice
  • Complete keyboard emulation for error free booting
  • Sun/Mac keyboard support and emulation
  • Auto Scan Mode for sequentially monitoring all computers
  • LED display for easy status monitoring
  • Complete solution - All cables included
  • Easy installation - No software required

Technical Specs

CPU Connectors Mouse: USB or PS/2
Keyboard: USB or PS/2
Monitor: VGA
Microphone: Standard
Audio: 2.1 sound
Peripherals: USB 2.0
Console Connectors Mouse: USB
Keyboard: USB
Monitor: VGA
Microphone: Standard
Audio: 2.1 sound
Power Voltage: 5.3 VDC
Video Resolution 2048 x 1536 DDC2B
Computer Connections Direct: 4
Cable Connections Input: USB
Output: USB
LEDs USB: Peripherals Green
Port ID: Orange
Requirements Console: Monitor with VGA capabilities
USB or PS/2 keyboard and mouse
Computers
VGA capable video out
USB or PS/2 connections
Windows XP
Windows Vista (32-bit / 64-bit)
Windows 7
Mac OS X or greater
Sun Solaris
Linux, UNIX and other USB supported systems
Optional: Computers with sound support
2.0 or 2.1 powered PC speakers
Microphone
Dimensions (W x H x D) 7.9" x 1.6" x 2.9"/ 20.1 x 4.1 x 7.4 cm
Weight 1.6 lbs/ 72 kg
