Iogear

Iogear 8-Port USB PS/2 Combo VGA KVM Switch with PS/2 KVM Cables

SKU: IGGCS1808KP MFR: GCS1808KITP
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$329.95 List Price

Our Price

$289.99
Free Shipping
Qty:
Add to Wishlist

About this item

The Iogear GCS1808KITP KVM is a combo VGA switch that includes 8 PS/2 KVM cables (4 x 6ft and 4 x 10ft). Access and control of up to 64 computers from a single console (keyboard, mouse and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches.

The GCS1808KITP features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack. The GCS1808KITP includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1808KITP intercepts keyboard input directly, thus eliminating the need for any software configuration.

Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

What's Included With This Item

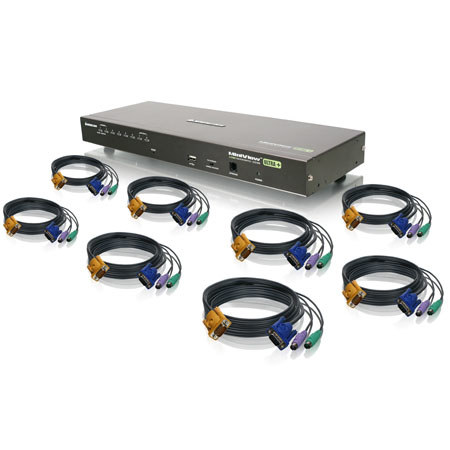

  • Iogear 8-Port USB PS/2 Combo VGA KVM Switch
  • 4 x PS/2 KVM Cables (6ft
  • G2L5202P)
  • 4 x PS/2 KVM Cables (10ft
  • G2L5203P)
  • USB KVM Cable (6ft
  • G2L5202U)
  • Console Cable
  • Cascade Cable
  • Firmware Upgrade Cable
  • Grounding Wire
  • Foot Pad Set (4 Pads)
  • Power Adapter
  • Standard Rack Mounting Kit
  • Installation Guide
  • Warranty Card
  • Iogear 3 Year Warranty

Key Features

  • Compatible with Windows, Mac, Sun Solaris and Linux
  • Supports both USB and PS/2
  • Equipped with 8 PS/2 KVM cables (4x 6' and 4x 10')
  • Computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
  • Cascade up to 2 levels and control up to 128 computers from a single console
  • The switch is secure with a 2-level password protection for OSD
  • Supports resolutions up to 2048 x 1536
  • Front USB port for system upgrades and shared peripherals (fully compliant with USB 1.1)
  • Rack mountable in a 19" (1U) system rack
  • Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
  • Fully supports DDC2B

Technical Specs

Direct Computer Connections 8
Daisy Chain or Cascading Connections 64 (via Cascade)
Port Selection Hotkeys, OSD, Button
Console Connectors 1 x SPHD-18 Male (Yellow)
Computer/KVM Connectors 8 x SPHD-15 Female (Yellow)
Power Connectors 1 x DC Jack
USB Connectors 1 x USB 1.1 Type A Female
Reset Switch 1 x Semi-Recessed Push Button
F/W Upgrade 1 x Slide Switch
Port Selection 8 x Push Button
Emulation Keyboard, Mouse: PS/2, USB
Video Resolution VGA 2048 x 1536, DDC2B
Voltage DC 5.3V
Amps 2.4A
Scan Interval 1-255 sec
Operation Temperature 0-50 deg.C
Storage Temperature -20-60deg.C
Humidity 0-80% RH, Non-condensing
Housing Case: Metal
System Requirements Console:
VGA, SVGA, or MultiSync Monitor
A Keyboard and Mouse (USB or PS/2)
Computers:
VGA, SVGA, or MultiSync video graphics card with an HDB-15 port
PS/2 mouse and keyboard ports (6-pin mini DIN)
1 x USB port
Windows, Mac, Sun Solaris or Linux OS
Dimensions (W x H x D) 17 x 1.75 x 6.25" (432 x 44 x 159mm)
Weight 5.58 lbs (2.5kg)
