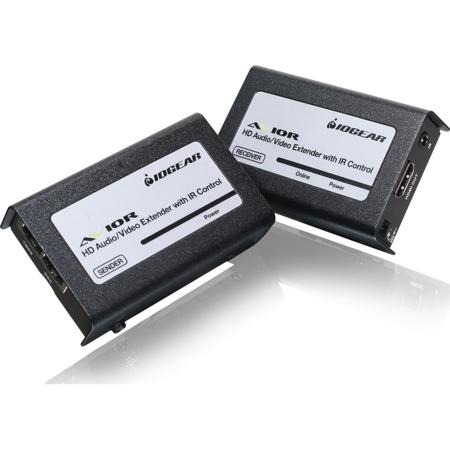

IOGEAR HDMI Cat 5e/6 Extender with IR Control and Power Over Cable, Includes Sender and Receiver, Up to 2.25Gbps Data Rate

SKU: IGGH8211EK

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

IOGEAR HDMI Cat 5e/6 Extender with IR Control and Power Over Cable Specifications

  • Cable Type

    2 x Solid CAT5e/6 (For Extension)

  • Cable Distance

    Up to 200' (60.96m)

  • Cable Connections

    Input: HDMI Type A 19 Pin Female
    Output: HDMI Type A 19 Pin Female

  • Connectors: Link

    2x CAT5e/6

  • LEDs

    Power On: 1 (Local and Remote Unit)
    On Line: 1 (Remote Unit)

  • Resolution

    480i, 480p, 720p, 1080i and 1080p

  • Data Rate

    Up to 2.25Gbps

  • Case Material

    Metal

  • POP Information

    10" Peg Hook: 7
    6" Peg Hook: 5

  • Certification

    RoHS Compliant
    HDCP Compliant

  • Dimensions (L x D x H)

    3.5 x 2.25 x 1" (8.89 x 5.71 x 2.54cm)

  • Weight

    5.28oz / 149.68g

  • UPC Code

    881317509437

About IOGEAR HDMI Cat 5e/6 Extender with IR Control and Power Over Cable

The IOGEAR HDMI Cat 5e/6 Extender gives you the distance between a 1080p media source and an HD display unit by up to 130 feet with 3D support and up to 196 feet with 1080i support. It consists of a local sending unit and remote receiving unit connected by two standard solid Cat 5e/6 twisted pair solid Ethernet cables. The HDMI Extender System is ideal for home installation, retro-fitting, retail environments, show rooms and large worship centers where remote displays are required. The HDMI Extender System is also useful for control and security purposes, where you can have the system unit in a secure area at the same time that you put the display in an area that is convenient for viewing.

IOGEAR HDMI Cat 5e/6 Extender with IR Control and Power Over Cable Features

  • Extend HDMI video / audio and IR signal through two CAT5e/6 cables
  • Supports 3D
  • Up to 130 ft for 1080p resolution, Up to 196 ft for 1080i resolution
  • IR support - Frequency 36Khz / 38Khz / 40Khz
  • Dolby TrueHD & DTS-HD Master Audio
  • Video equalization can be adjusted manually to accommodate for long distance runs
  • Power LED and active signal LED for easy monitoring
  • Power Over Cat5e/6 (POC) feature allows for one power adapter to power both sender and receiver
  • Backwards compatible with DVI devices with HDMI to DVI adapter
  • Plug-N-Play
  • HDCP Compliant

Key Features

  • Supports 3D
  • IR support - Frequency 36Khz / 38Khz / 40Khz
  • Dolby TrueHD & DTS-HD Master Audio
  • Plug-N-Play
  • HDCP Compliant

What's in the box:

  • IOGEAR HDMI Cat 5e/6 Extender (Sender and Receiver)
  • Power Adapter
  • 2x Wall Mount Kit
  • Sender IR Cable
  • Receiver IR Cable
  • Quick Start Guide
  • IOGEAR 3 Year Warranty
