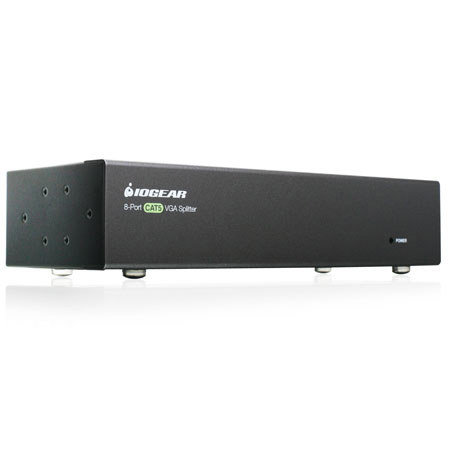

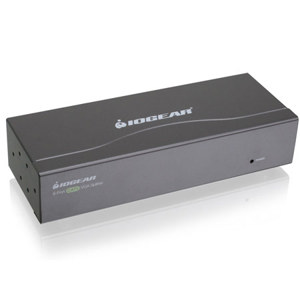

IOGEAR 8-Port VGA CAT5e/6 Audio/Video Splitter

SKU: IGGVS148TX

This item is no longer available.

Recommended Alternatives

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

IOGEAR 8-Port VGA CAT5e/6 Audio/Video Splitter Specifications

  • Chassis

    Metal

  • Resolution

    Max. 1920x1200 @ 60Hz (492ft/150m)
    Max. 1280x1024 @ 60Hz (984ft/300m)

  • Video Input

    1 x HDB-15 (Male)

  • Video Output

    1 x HDB-15 (Female)

  • Audio Input

    1 x 3.5mm Mini Audio Jack (Green)

  • Audio Output

    1 x 3.5mm Mini Audio Jack (Green)

  • Power Adapter

    DC Power Jack

  • Voltage Input

    100 - 240V

  • Voltage Output

    5V

  • Dimensions (W x H x D)

    7.8 x 1.8 x 3.0" (19.7 x 4.5 x 7.6 cm)

  • Weight

    1.4 lb (0.6 kg)

Related Articles & Videos

About IOGEAR 8-Port VGA CAT5e/6 Audio/Video Splitter

The GVS148TX VGA Audio/Video Splitter from IOGEAR utilizes CAT5e/6 cables to output video and audio signals from a single source to eight monitors or displays. The more impressive feature of the GVS148TX is that it can output the video and audio signals to those eight monitors or displays from over 900 feet away. Operating with a bandwidth of 225MHz allows for the transmission of large amounts of information at a very high rate of speed capable of high resolution settings of up to 1920x1200. The GVS148TX can maintain this data transfer bandwidth for over 300m (990ft).

IOGEAR 8-Port VGA CAT5e/6 Audio/Video Splitter Features

  • Split and extend 1 VGA source with audio over 4 VGA monitors and powered speakers via CAT5e/6
  • High resolution 1920x1200 @ 60Hz
  • Provides local VGA video and 3.5mm audio port
  • Supports up to 225MHz bandwidth
  • Built-in 8KV / 15KV ESD protection
  • Plug-n-Play

What's in the box:

  • IOGEAR 8-Port VGA Audio/Video Splitter
  • 1 x Power Adapter
  • 1 x Rack Mount Kit
  • 1 x Foot Pad Set (4pc)
  • 1 x Grounding Wire
  • 1 x Quick Start Guide
  • 1 x Warranty Card
  • IOGEAR 3 Year Limited Warranty
