Iogear

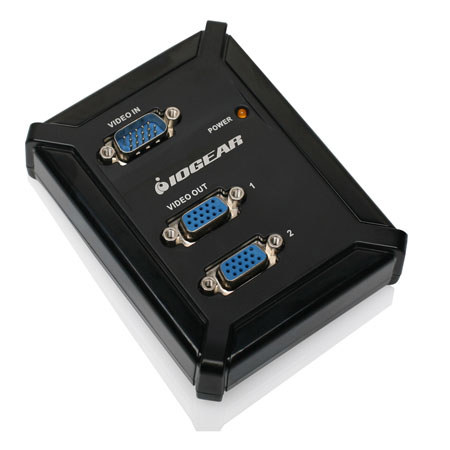

Iogear GVS62 2-Port VGA Video Splitter

SKU: IGGVS62 MFR: GVS62
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$17.99
Free Expedited Shipping On Orders Over $49
Qty:
Add to Wishlist In Stock

About the Iogear GVS62

The GVS62 is a 2-port VGA video splitter and a signal booster with Iogear's patented VSE (Video Signal Enhancement) Technology. It is the best choice for splitting and carrying a video signal to more that one display with the same quality as the original signal. The GVS62 VGA Video Splitter is used to take video input from a single source and direct it to two video outputs for monitors using analog signals.

The signal boost obtained by using Iogear's patented VSE (Video Signal Enhancement) Technology allows you to not only split the signal but it also amplifies the video signal to increase the transmission distance to about 215 feet away. This is no small feat, your average VGA card, over a standard VGA cable, sends a clear VGA signal approximately 25 feet.

Operating with a bandwidth of 250MHz (250 million cycles per second) that is almost 60 times greater than a simple TV signal. The high bandwidth allows for the transmission of large amounts of information at a very high rate of speed, thus allowing for the use of high resolution settings upwards of 1920 x 1440 in 24 or 32 bit true color mode.

Iogear GVS62 Includes

  • Iogear 2-Port VGA Video Splitter
  • Power Adapter
  • Quick Start Guide
  • Warranty Card
  • Iogear 3 Year Limited Warranty

Iogear GVS62 Features

  • Stream a single video source to 2 separate VGA monitors
  • Ultra High 250MHz bandwidth superior video quality, maintains highest signal strength in all applications up to 1920 x 1440
  • Includes IOGEAR's patented VSE (Video Signal Enhancement) Technology, which amplifies video signal strength throughout your desire set-up
  • Amplifies video signals increasing transmission distance up to 215 feet
  • Cascadable -Allows you to expand your video splitter set up beyond 2 displays
  • Hassle free, no software to install, instant installation and use
  • Hot-Plug compatible and Hot-Swappable
  • Plug-N-Play
  • Compact design for easy placement
  • Supports DDC, DDC2, DDC2B at Port 1

Iogear GVS62 Specifications

Requirements Video source with VGA (HDB-15) connection
Displays with VGA (HDB-15) connection
Video connections Input: 1 x HDB-15 Male
Output: 2 x HDB-15 Female
LEDs: Power On 1
VGA Bandwidth (-3db) 250MHz
Video Resolution 1920 x 1440 @ 60 Hz
Signal Type VGA, SVGA, XVGA, USXGA and Multi-sync
Cable Distance 65m (214.5ft)
Cascade 3 Level
Power Consumption 1.24W (Max)
Power Voltage: DC 9V
Amps: 300mA
Operation Temperature 0-50 deg.C
Storage Temperature -20-60 deg.C
Humidity 0-80% RH; Non-condensing
Housing: Case Plastic
Dimensions (W x H x D) 3.25 x 4.25 x 1.25 in.(8.2 x 10.8 x 3.2 cm)
Weight 0.24 lb (0.11 kg)
