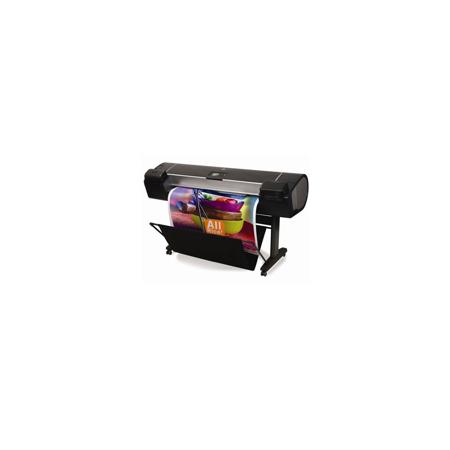

HP Designjet Z5200 PostScript 44" Printer, 445 ft/hr Plain Media Color Print Speed, 2400x1200 Optimized dpi Resolution

See all HP items

About HP Z5200

The HP Designjet Z5200 PostScript 44" Printer is designed to maximize your printing resources and make in-house printing more affordable. The large ink tanks cut down the cost per page and its automatic calibration saves resources by calibrating without printing a calibration sheet. The HP Vivera ink produces high-quality prints in both grayscale and color and is engineered to resist smudging, fading and water damage.

The printer has its own built-in 160GB hard disk which means none of the computer's RAM is used for printing, letting you continue your work while printing large files. Having the built-in hard disk also means you can store commonly printed files in the printer for easy anytime access from anywhere on your local network. The printer comes with a browser-based interface that lets anyone connected to the network monitor the printer's progress. Included with the printer is HP's Instant Printing Pro, letting you add multiple files to the print queue without having to open each one. Once the files are in the queue you can dictate to the printer when the files should be printed. Because the printer constantly monitors resources, it's able to calculate whether or not it has enough supplies left for the next job, saving you time and resources.

HP Z5200 Features

  • With this printer you save half the steps needed to get a print so it's easier and you're more productive. Take advantage of a printer that is so easy and intuitive, you'll wonder why you waited to bring large-format printing in house
  • Eliminate and automate many of the steps involved with traditional large-format printing. HP Instant Printing Pro streamlines the printing process from beginning to end with fast, easy file preparation and automatic nesting, preview, orientation and crop marks
  • Achieve your desired colors quickly while minimizing unnecessary and expensive trial-and-error printing. This printer's embedded spectrophotometer enables automatic calibration and profiling for greater color accuracy and consistency
  • Save up to 5 minutes on every print. Add large-format printing to your offering without slowing down your workflow. Eliminate time-consuming steps, see fast speeds and process and manage jobs more effectively with high productivity
  • Speed up the printing process by eliminating some of the time-consuming steps along the way. The HP Designjet Z5200 PostScript Printer lets you submit many files at a time, directly to the printer, without having to wait to open an application
  • Turn around orders quickly and still deliver the high quality that customers demand. With the HP Designjet Z5200 PostScript Printer and HP Vivera pigment inks, you can print up to 445 ftÂ/hr at production speed without sacrificing quality
  • Large Print Jobs Won't Slow Down Computer: The printer's 160 GB hard disk provides a large buffer, reducing the chance that your workstation will lock up when printing large files and simplifying the process when you need to reprint
  • Automatic Calibration: The embedded spectrophotometer provides automatic calibration and media profiling for greater consistency and accuracy every time you print. No need to waste ink or paper on calibration
  • Easily Monitor Resources: The printer tracks ink and paper levels so you always know how much is left and if you have enough to finish the current print job. The embedded web server lets you monitor these levels from any computer using the printer's web interface
  • Experience dependable, high-quality results on a range of applications, no matter the file format your customer brings. Get high-impact color that's delivered accurately and consistently. Gain efficient operation and a low TCO with this HP printing system
  • Count on a truly dependable printing experience with a built-in PostScript interpreter for in-printer processing of PS and PDF files. And with HP Professional PANTONE Emulation you can meet customer color expectations more quickly and reliably
  • Save time and money by minimizing trial and error printing. This printer's embedded spectrophotometer provides automatic calibration and media profiling for greater consistency and accuracy with the first and every print
  • Optimize your everyday printing and achieve a new level of quality and value. HP Universal Bond Paper and HP Bright White Inkjet Paper feature ColorPRO Technology, providing visibly enhanced print quality and cost-effective everyday printing

HP Z5200 Specifications

Item includes-1
Introductory Matte Black Ink Cartridge - Introductory Cyan Ink Cartridge - Power Cord - Printer Stand (44") - Original HP Sample Media Roll - Quick Reference Guide - Setup Poster - Start-Up Software
Printing Technology
HP Thermal Inkjet
Maximum Resolution
Up to 2400 x 1200 optimized dpi
Minimum Ink Droplet Size
Light cyan, light magenta, light grey, photo black: 4 pl
Cyan, magenta, yellow, matte black: 6 pl
Ink Type
HP Vivera pigment ink
Ink Palette
Cyan, magenta, yellow, light cyan, light gray, light magenta, matte black, photo black
Ink Cartridge Configuration
8 individual ink cartridges
Print Speed
Line drawings: 42 sec/page on D, 42.1 D prints/hour
Color: Fast - 445 ftÂ/hr on plain media, Best - 5.1 min/page on D or up to 58 ftÂ/hr on glossy media
Input Buffer
32 GB (virtual memory capacity)
160 GB hard disk
Maximum Paper Width
Maximum Printable Area
Sheets: 44.0 x 66.0"
Rolls: 11.0 - 44.0"
Paper Sizes
Sheets: 8.5 x 11" - 44 x 66"
Rolls: 11 to 44"
Borderless Photo Sizes
Standard: narrow margin
Oversize: image printed on a page slightly larger than the size selected and cut by printer
Borderless: image is slightly enlarged to ensure that no margin is left between the edges of the image and the edges of the paper
Paper Types
Photographic, proofing, fine art printing material, self-adhesive, banner and sign, bond and coated, backlit, fabric/textile
Special Media Support
Backlit, fabric, textile
Media Thickness
=31.5 mil
Maximum Media Roll Diameter
Maximum Roll Print Length
300.0' (91.44 m)
Paper-Feed Method
Sheet feed, roll feed
Computer Interface
Gigabit Ethernet (1000Base-T); Hi-Speed USB 2.0 certified; EIO Jetdirect accessory slot
Network Capable
Graphics Support
Languages supported: HP-PCL3 GUI, CALS/G4, PostScript, PDF, TIFF, JPEG
Windows System Requirements
XP or newer
Mac OS System Requirements
10.4 or newer
Status Display
Error, warning and usage information
32 GB RAM; 160 GB hard disk
Front Panel Controls
Ink levels, paper type, unload paper, form feed and cut, menu, ok, 4 directional keys, cancel, power
Power Consumption
Maximum: 170 watts
Power Save: < 12 watts (< 30 watts with embedded DFE)
Off: 0.1 watts
Power Requirements
Input voltage (auto ranging) 100 to 240 VAC (±10%), 50/60 Hz (±3 Hz), 2 A max
User-Replaceable Items
Print heads (4), ink cartridges (8)
Operating Temperature
41 - 104deg. F (5 - 40deg. C)
Storage Temperature
-13 - 131 deg.F (-25 - 55 deg.C)
Operating Humidity
20 to 80% relative humidity
Acoustic Noise
Sound pressure: active - 49 dB(A), standby - 29 dB (A)
Sound power: active - 6.5 B(A), standby - 4.4 B(A)
Safety Compliance
USA and Canada (CSA certified); EU (LVD and EN 60950-1 compliant); Russia (GOST); Singapore (PSB); China (CCC); Argentina (IRAM); Mexico (NYCE)
Electromagnetic Compatibility
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC)
Environmental Compliance
69.7 x 27.2 x 41.2" (177.03 x 69.08 x 104.65 cm)
189 lbs (85.73 kg)
Mfr #

Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  is it good for small office?
GARY R  Maybe, if you have a separate desk or table for it. Or perhaps if you have an L-shaped desk because a regular size desk with your computer along with this printer would be crowded.
Shawn F  Does this plotter come with the stand? If not - we are replacing our HP 5500, will that stand fit this model?
NORMAN K  Yes a stand is included. The printer comes on a pallet and is well packed. It took me about 30 minutes to put together with very detailed instructions. You'll need a few people to lift it.
raziq s  watt is the power consumption in watts?
Andrew R  Power Consumption Maximum: 170 watts Power Save: < 12 watts (< 30 watts with embedded DFE) Off: 0.1 watts http://www.adorama.com/IHPCQ113AB1K.html#specs
