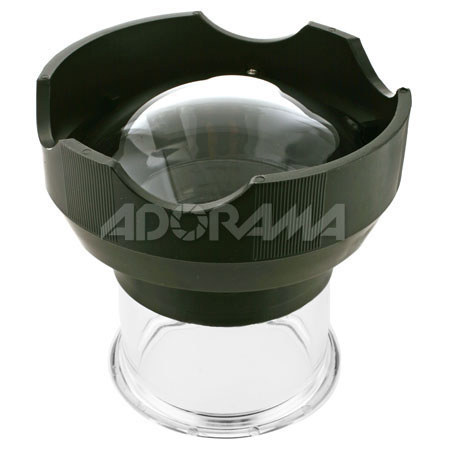

About Ikelite SLR Dome Port

The Ikelite dome is injection molded specifically for underwater photography, and represents the finest optics in the industry. Recommended for wide angle lenses from 17mm to 28mm, and short zoom lenses

Zoom lenses require a +4 diopter close-up lens available from camera stores. Wide angle lenses will focus at 12" and do not require the addition of any close-up lens when used in a dome port.

Other ports available
#5503.... Lens length less than 3" (7.6cm)
5503.50 Lens length less than 4" (10.1cm)
#5503.55 Lens length less than 4.5" (11.4cm)
#5503.80 Lens length less than 5" (12.7cm)
#5503.85 Lens length less than 6" (15.2cm)

For lenses with a 110 to 170 degrees angle of coverage. This port does not allow use of a port shade, and may not be fully functional with some lenses in the MD-size housing.
#5503.15 Lens length less than 2.5" (6.3cm

For standard, macro and telephoto lenses.
#5501..... Lens length less than 2.5" (6.3cm)
#5502...... Lens length less than 3.5" (8.9cm)
#5502.41 Lens length less than 4.1" (10.4cm)
#5505...... Lens length less than 4.5" (11.4cm)
#5505.45 Lens length less than 5.1" (13cm)
#5505.5 .. Lens length less than 5.5" (14cm)
#5505.58 Lens length less than 6.1" (15.5cm)

For long lenses whose focus collar extends beyond the housing focus
#5506.... . Lens length less than 4.5" (11.4cm)
#5506.5... Lens length less than 5.5" (14cm)
#5507...... Lens length less than 6.5" (16.5cm)
#5508...... Lens length less than 7.5" (19cm)
#5508.05 Nikon 105mm Micro-Nikkor lens only
(allows switching from manual-auto focus u/w)

Maximum lens diameter is limited to 8.4cm (3.3"). The diameter for attachment of zoom or focus clamps is limited to 7.1cm (2.8"). Lens length is measured as the maximum extended length from attachment point on the camera body.

Only lenses with rotating barrel control for zoom can be used. Push-pull zoom control can not be operated.

Ikelite SLR Dome Port Reviews

Reviewed by 1 customers


Perfect fit for my lens


from Conyers, BA  -  Photo Enthusiast

This port is a perfect fit for my Canon EF-S 10-22mm lens. I looked into the bulkier and considerably more expensive 8" dome port, but can't see a need for it as I get great images with no vignetting using this lens. YMMV if you use a different lens.


Questions & Answers Powered by TurnTo®

Questions about this item:

Shopper  Will this port work for my macro 100mm canon lens in an ikelite housing for my 40D canon slr?
Andrew R  Unfotunately no, this port is designed for use with wide angle and short zoom lenses.
