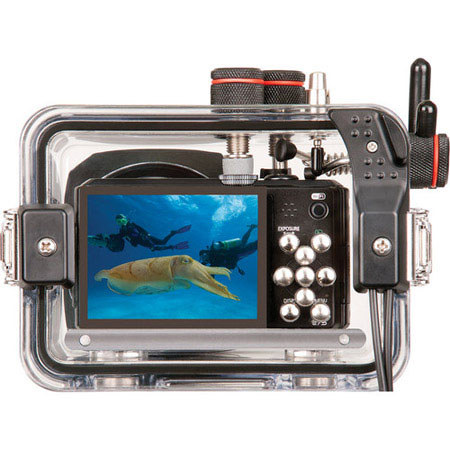

Ikelite 6170.30 Underwater TTL Camera Housing for Panasonic Lumix DMC-ZS30, TZ40, TZ41

Ikelite
Ikelite 6170.30: Picture 1 thumbnail Ikelite 6170.30: Picture 2 thumbnail
Made in USA

Our Price

$474.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Ikelite 6170.30

Perfectly proportioned.
The Ikelite housing for the Pansonic ZS30, TZ40 and TZ41 is just-right-sized for carefree travel and a comfortable hold with or without a thick glove. All important camera functions are at your finger tips using a series of heavy duty, custom made mechanical controls. A built-in air cushion is our secret for reduced possibility of fogging due to trapped moisture and superior buoyancy control especially important for shooting steady HD video. Expand your system by adding an AF35 AutoFlash or optional tray with release handle(s), attached with two screws for improved stability underwater and quick break-down during travel. Tray and handles provide superb handling above and below water and act as a jump-off point for your lighting system.

Unleash your creativity with wide angle and macro options.
The optional WD-4 Wide Angle Dome corrects for refraction to provide the camera's widest angle of coverage with virtually none of the corner softness typically associated with underwater wide angle lenses. There's no need to limit yourself to wide angle for an entire dive, as the dome can be easily removed and replaced underwater. If you're interested in close-up photography, opt for the Macro Adapter and attach any macro lens with a standard 67mm thread.

Clearly superior strength and assurance.
Special polycarbonate blends allow us to create an extremely strong yet clear and lightweight enclosure. We believe there's no substitute for inspecting the actual o-ring seal once your housing is closed. Our 100% clear back lets you see that the housing is watertight and dry before you enter the water, and provides full view of the camera while you're diving. And did we mention that polycarbonate never bubbles or flakes and is fundamentally corrosion-resistant?

Quality in engineering, manufacturing and service.
Like every Ikelite product, this housing for the Panasonic Lumix ZS30, TZ40, and TZ41 is designed, built and tested in the USA. We use locally sourced, top-grade materials from trusted vendors we've been working with for decades. Our housings are built by hand and individually tested for fit, function and waterproof integrity. The average assembly technician is a certified scuba diver and has over 16 years of experience building Ikelite products. We back our products with over 50 years of experience and service within the dive industry.

Ikelite 6170.30 Features

  • Access to all camera functions
  • See the o-ring seal
  • Wide angle and macro compatibility
  • 200ft (60m) depth rating

Ikelite 6170.30 Specifications

Controls
All important camera functions are accessible Controls are not provided for the Wi-Fi Button
Width
6.8 in (173mm) including controls
Height
4.9 in. (124mm) including controls
Depth
5.4 in (137mm) including controls
Weight
2.9 lb (1.3 kg)
Buoyancy
Near neutral in freshwater
Depth Rating
200ft (60m)
Built-in Flash
Yes
Strobe Connection
Optical Trigger
Tray Mounting
12-24 thread with 3 in spacing (76 mm)
Main O-Ring
0109
Port O-Ring
0132.30
Port Outer Diameter
3.9" (99mm)
Blue Water Filter
6441.46
Green Water Filter
6441.86
Use 46mm Threaded Lenses
No
Use 67mm Threaded LensesNo
Macro lenses only with 9306.82 Macro Adapter
Use WD-4 Wide Angle Dome
Yes
Use Bayonet Lenses
No
Spare Parts (Optional)
5020 Silicone lubricant
9523.10 Mounting hardware 12-24 x 1/2 in
