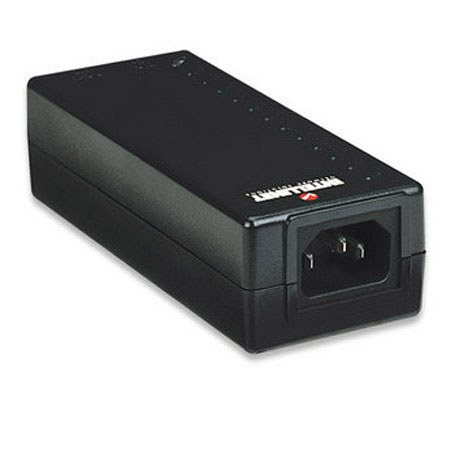

Intellinet Single Port Power over Ethernet (PoE) Injector, 15.4 Watts Power Output

See all Intellinet items
Intellinet : Picture 1 thumbnail Intellinet : Picture 2 thumbnail Intellinet : Picture 3 thumbnail Intellinet : Picture 4 thumbnail Intellinet : Picture 5 thumbnail Intellinet : Picture 6 thumbnail

Our Price

$36.99
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About Intellinet

The Intellinet Single Port Power over Ethernet (PoE) Injector allows you to connect your IEEE 802.3af-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af powered device (PD) to a switch. No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port and use the existing Cat5 cabling to deliver DC power as well as transfer data. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads (over 450 mA) and high voltages (voltage exceeding 52 V).

Intellinet Features

  • Ideal when AC power is not available
  • Full-power Class 3 PoE design
  • Power output of up to 15.4 Watts
  • Supports all IEEE 802.3af-compliant PoE devices (Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras)
  • Supports IEEE 802.3af detection and short circuit, overload and high-voltage protection

Intellinet Specifications

Standards
IEEE 802.3af (Power over Ethernet)
IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
Media support
100Base-TX Cat5 UTP/STP RJ-45, 8 pin
Ports
1 RJ-45 100 Mbps input port
1 RJ-45 100 Mbps data and power output ports
1 power input connector (3 pin)
Protection functions
Short-circuit protection for short GND
Overload protection for currents over 450 mA
High-voltage protection for output voltage exceeding 52 V
Compatibility
All IEEE 802.3af-compliant PoE devices
RJ-45 Input Connector Pinout
Pin 1: Rx+ (data receive)
Pin 2: Rx- (data receive)
Pin 3: Tx+ (data transmit)
Pin 4: NC (not connected)
Pin 5: NC (not connected)
Pin 6: Tx- (data transmit)
Pin 7: NC (not connected)
Pin 8: NC (not connected)
RJ-45 O/P Connector Pinout (Data+Power)
Pin 1: Rx+ (data receive)
Pin 2: Rx- (data receive)
Pin 3: Tx+ (data transmit)
Pin 4: -Vdc_return (+) (feeding power [+])
Pin 5: -Vdc_return (+) (feeding power [+])
Pin 6: Tx- (data transmit)
Pin 7: -Vdc (feeding power [-])
Pin 8: -Vdc (feeding power [-])
LEDs
AC Powered (red)
Channel Powered (green)
Channel Alarm (red)
Supported Intellinet Network Solution
Wireless 300N Access Points (524735, 524711)
High Power Wireless G Access Point (503082)
PoE Splitter (502900)
Network Cameras (550932 NBCC30-IR, 550963 NFC30-IR, 550949 NFC30, 550987 NFD30, 551021 NFC31, 551045 NFC31-IR)
Construction
Plastic housing (ABS)
Input
100 - 240 V AC, 50 - 60 Hz
Output
48 V DC / 350 mA
Power consumption
19 Watts (maximum)
Certifications
FCC Class B, Part 15, CE 89/336/EEC
Operating Temperature
0 - 60deg.C (32 - 140deg.F)
Storage Temperature
-20 - 85deg.C (-4 - 185deg.F)
Operating Humidity
10 - 90% RH, non-condensing
Dimensions (L x W x H)
120 x 50 x 35mm / 4.72 x 1.97 x 1.38"
Weight
0.3lbs / 0.14kg
