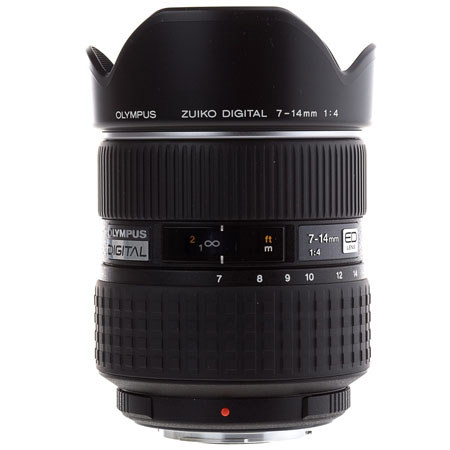

Olympus Zuiko 7mm - 14mm f/4.0 E-ED Digital Zoom Lens for the E Digital SLR System.
Mfr. Part: 261009 SKU: IOM714
enlarge image
|
|
 |
|
|
|
Item Includes
7-14mm f4.0 Zuiko Digital Lens, Front Lens Cap LC-87, Rear Lens Cap LR-1, Lens Case LSC-1022, Instruction Manual, Warranty Card
|
Description
"Designed for Digital" Lens Based on Four Thirds System - Super-Wide-Angle 2x Zoom Performance with a Minimum Wide-Angle starting focal length of 7mm
With a minimum wide-angle starting focal length of 7mm (equivalent to 14mm on a 35mm film camera), the 114-degree picture angle provided by this product is the widest in the world (NOTE) for a zoom lens designed for use with digital cameras. As a super-wide-angle lens, it allows the photographer to create out-of-the-ordinary images by emphasizing depth of field and perspective. Because it is designed specifically for use with digital cameras, this lens ensures stable imaging quality right out the periphery of the image.
Working Distance of Just 10cm for Enhanced Photographic Possibilities
The inner focusing system features a newly developed "floating" mechanism that ensures excellent image quality at all ranges from infinity to extreme close-up. With a minimum working distance (NOTE) of just 10cm, the lens allows the photographer to work extremely close to the subject, which is essential to create images with enhanced perspective
Large-Aperture Aspherical Lens - World's First ED Molded Glass Aspherical Lens Elements
The new lens incorporates two molded glass aspherical lens elements for effective correction of the distortion and astigmatism commonly associated with super-wide-angle lenses. Distortion is minimal, even when shooting close to the subject, allowing the lens to produce sharp images that precisely reflect the photographer's intentions in all types of photography. Large-aperture concave lens elements that are aspherical on both sides play a particularly important role in the correction of distortion and curvature. This lens also features the world's first (NOTE) two-sided aspherical ED lens elements. In addition to color correction, these also allow the elimination of coma flare on the periphery of images
Dual Super ED and ED Lens Elements Used to Minimize Chromatic Aberration
Super-wide-angle lenses are prone to chromatic aberration. The Zuiko Digital ED7-14mm F4.0 incorporates two ED lens elements, and its ED lens group also includes two Super ED lens elements with color dispersion characteristics similar to those of fluorite. Theseallow the lens to suppress color aberrations that cannot be fully corrected with conventional optical glass. The result is optimal resolution and contrast.
New Multi-Coating Process to Reduce Ghosting and Flaring
Olympus has used a newly developed multi-coating process to minimize reflections across a wide range of wave lengths. This feature minimizes the ghosting and flaring that commonly affect wide-angle lenses.
Dust and Water Droplet Resistance for Enhanced Reliability
Exterior parts of the lens have been sealed to provide enhanced protection against dust and water droplets, ensuring reliable performance even under the tough shooting conditions experienced by pro photographers. |
Features
 |
"Designed for Digital" Lens Based on Four Thirds System - Super-Wide-Angle 2x Zoom Performance with a Minimum Wide-Angle starting focal length of 7mm |
|
Working Distance (NOTE) of Just 10cm for Enhanced Photographic Possibilities |
|
Large-Aperture Aspherical Lens - World's First ED Molded Glass Aspherical Lens Elements |
|
Dual Super ED and ED Lens Elements Used to Minimize Chromatic Aberration |
|
New Multi-Coating Process to Reduce Ghosting and Flaring |
|
Dust and Water Droplet Resistance for Enhanced Reliability |
Specifications
| Construction | 18 elements in 12 groups including 2 aspherical |
| Angle of view | 114° to 75° |
| F stop range | From F4.0 to Minimum Aperture: f22 |
| Closest Focusing Distance | 9.75" (0.25 m) |
| Maximum Magnification | 0.11x |
| Filter Size | None |
| Dimensions (Length x Diameter) | 4.7" x 3.4" (119.5 x 86.5mm) |
| Weight | 27.85 oz. (780 g) |
| | |
|
|
|
|
|
|
|
|
