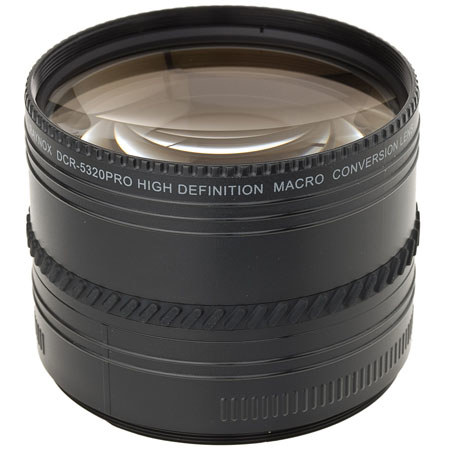

Raynox DCR-5320 Pro 3-in-1 High Definition Triple Macro Conversion Lens with 72mm Mounting Thread
What's Included With This Item:
- DCR-5320 Pro 3-in-1 Macro Lens
- Carry Pouch
- Front and Rear Lens Caps
- Raynox One Year Warranty
• DCR-5320PRO 3-in-1 High Definition Triple Macro Conversion Lens....
The DCR-5320PRO Macro Close-up lens, particularly designed for use with high-end digital, film and hi-vision cameras, has all lens glass elements fully coated for optimum light transmittance and fine image quality.
It is made of two independent lenses, one of 2-diopter magnification and the other a 3-diopter, both fabricated in doublet formula for less color aberration at the corners.
Putting the two lenses together, creates a high 5-diopter magnification macro close-up conversion lens with the excellent high resolution power of 200 lines/mm at center (MTF30%).
This lens can therefore be used three ways, allowing you to shoot your object at distances of either 50cm, 30cm or 17cm. The lens has a 72mm mounting thread, and adapter rings to fit to 52mm, 58mm, 62mm, 67mm, 77mm threads are sold separately.
Please Note: The Model RA7252 adapter ring and RT5267CT Raynox lens holder adapter (not included, sold separately) are required for using the DCR-5320PRO on the Olympus C-8080 WideZoom camera, other cameras may need additional adapters or tubes which are not included.
|Construction||The 2-diopter lens;
1-group/2-element, Weight 105g, Focusing distance (8* : 486mm)
The 3-diopter lens;
2-group/3-element, Weight 290g, Focusing distance (8* : 311mm)
The 5-diopter lens;
3-group/5-element, Weight 395g, Focusing distance (8* : 170mm)
|Power||Resolution Power at center : 200L/mm (MTF30%)-theoretical number obtained.|
|Size||Filter thread : 72mm
Mounting thread : 72mm
